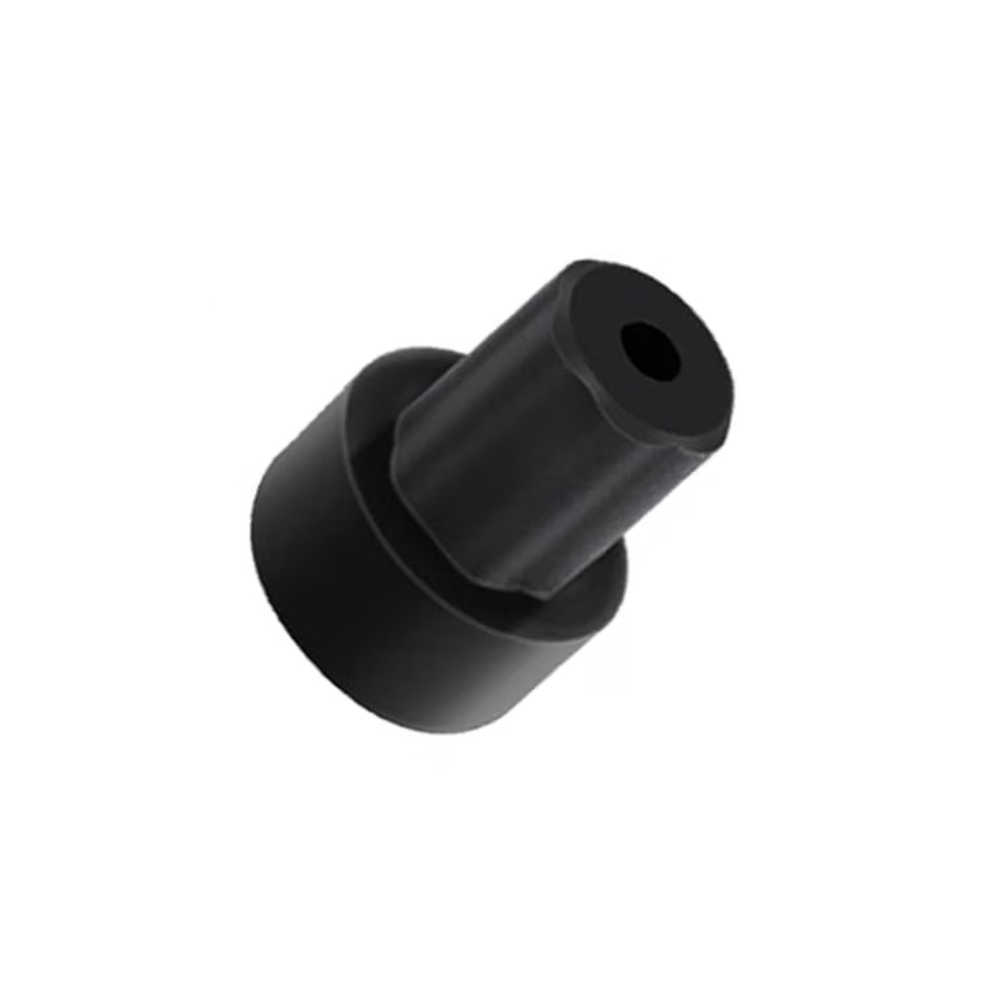

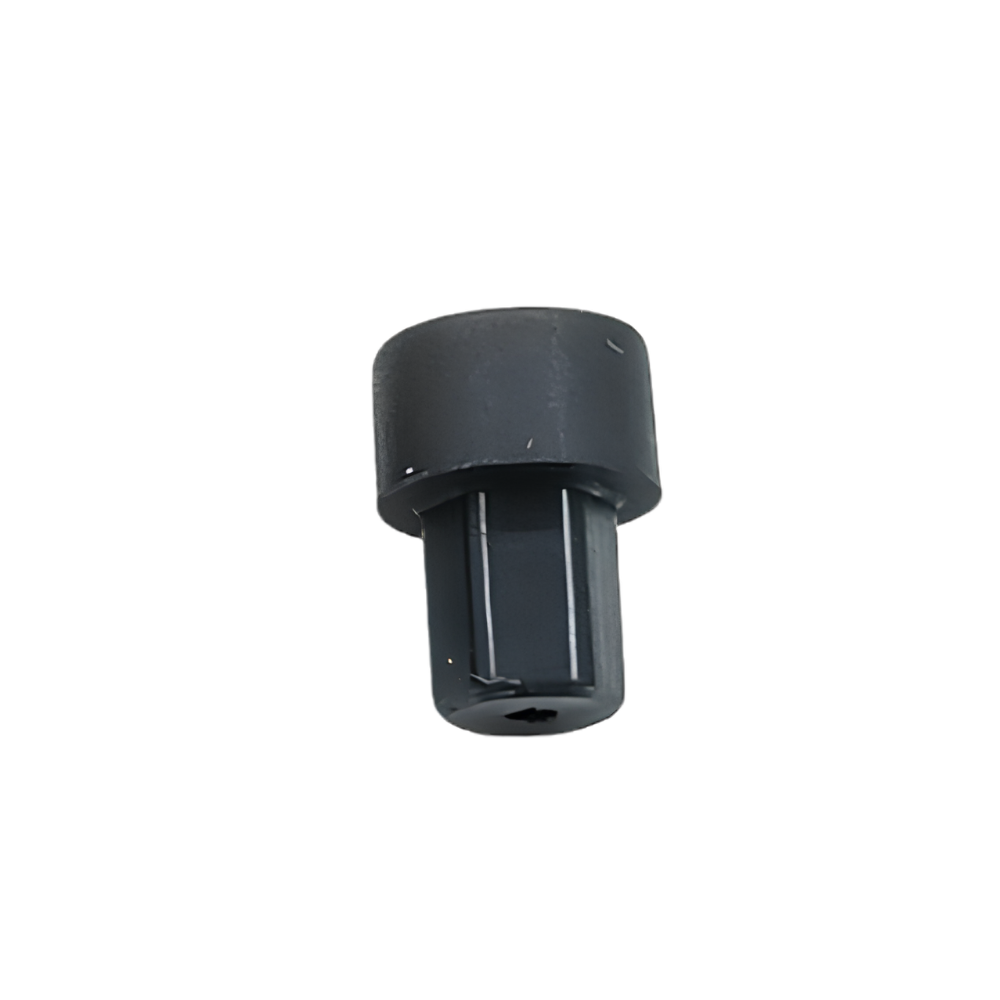

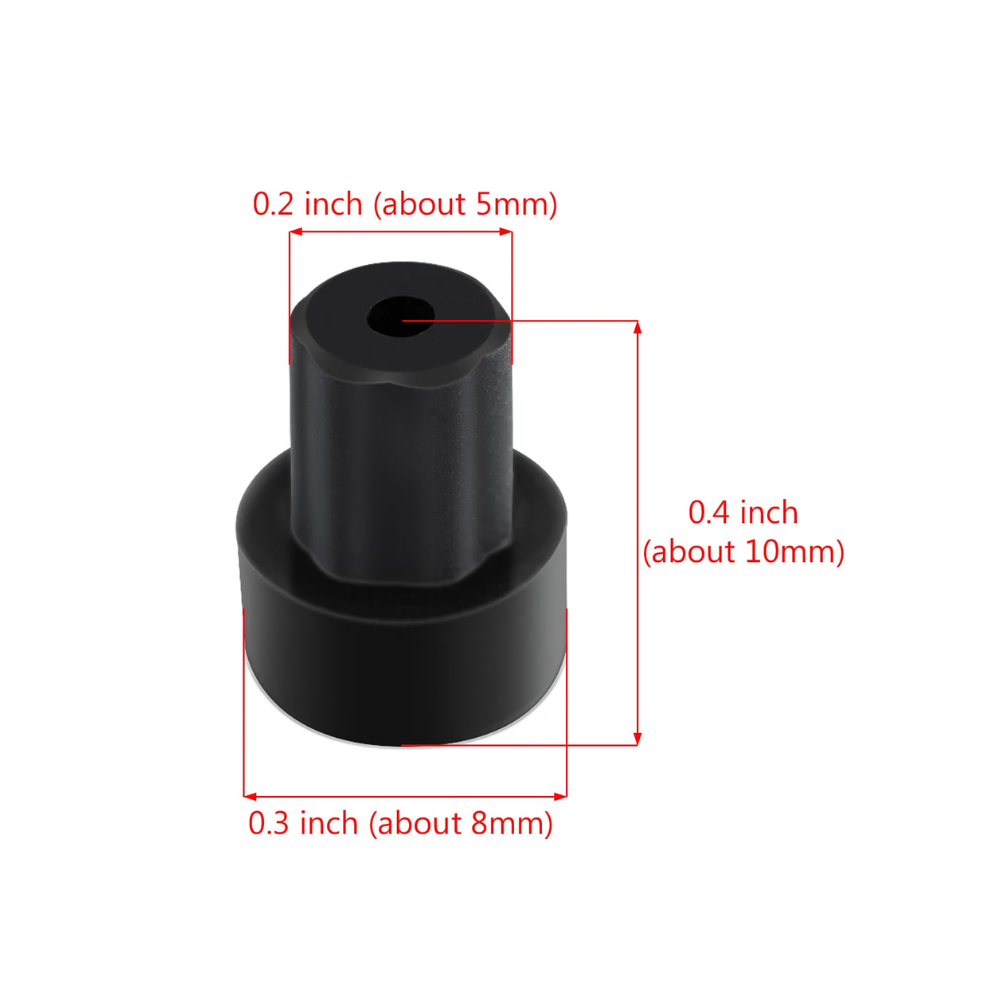

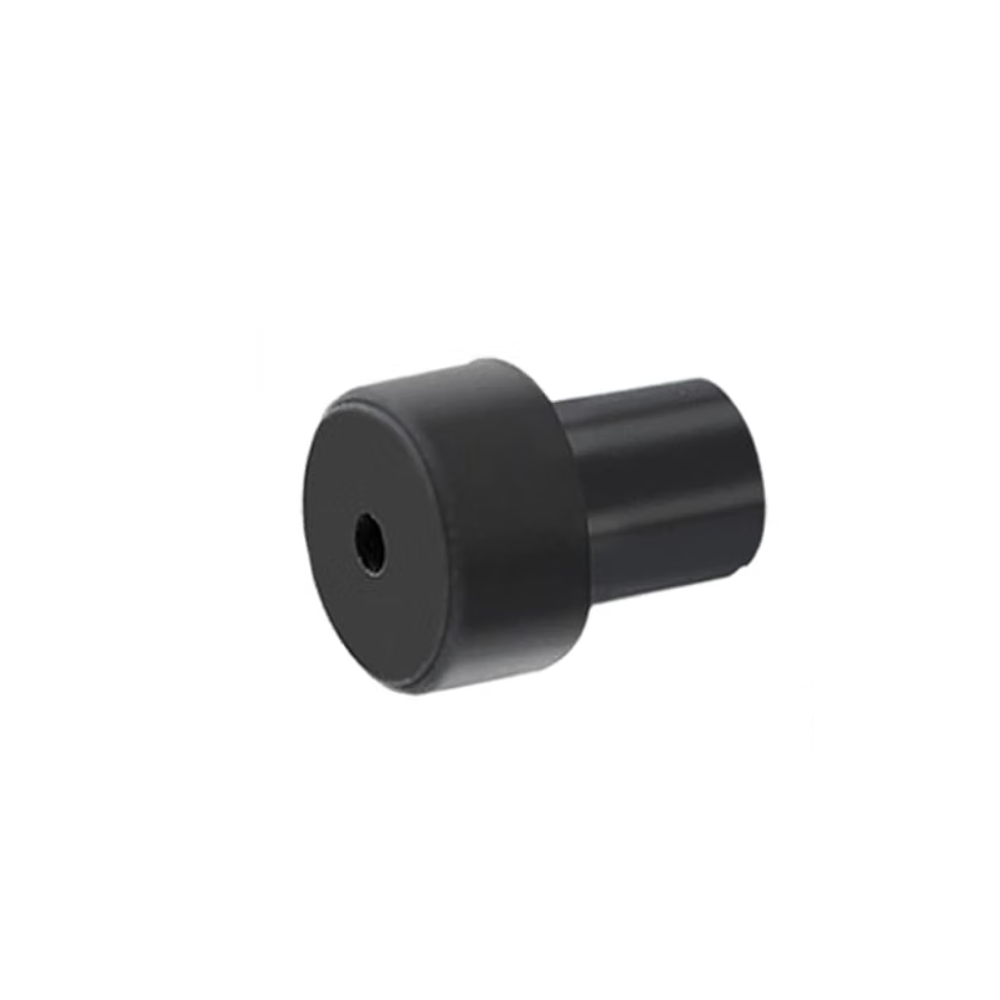

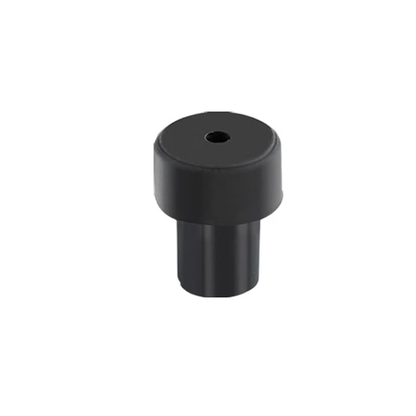

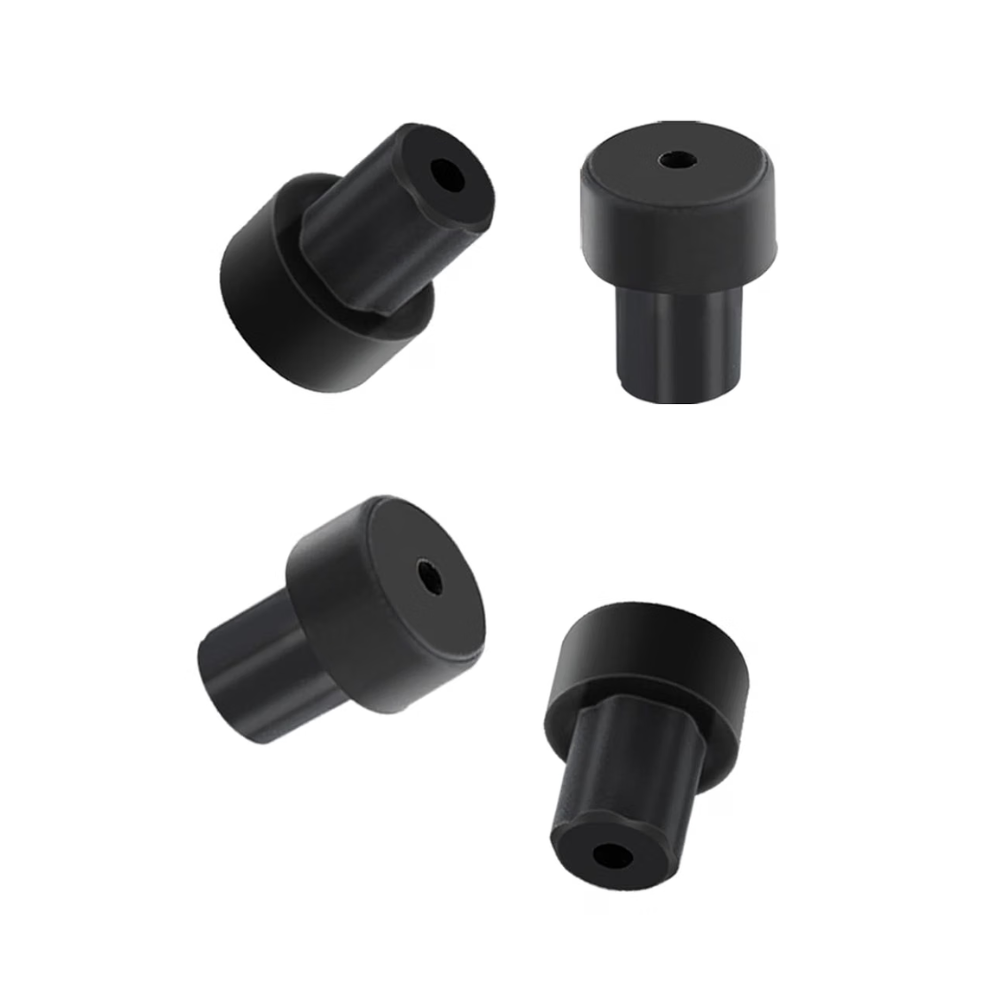

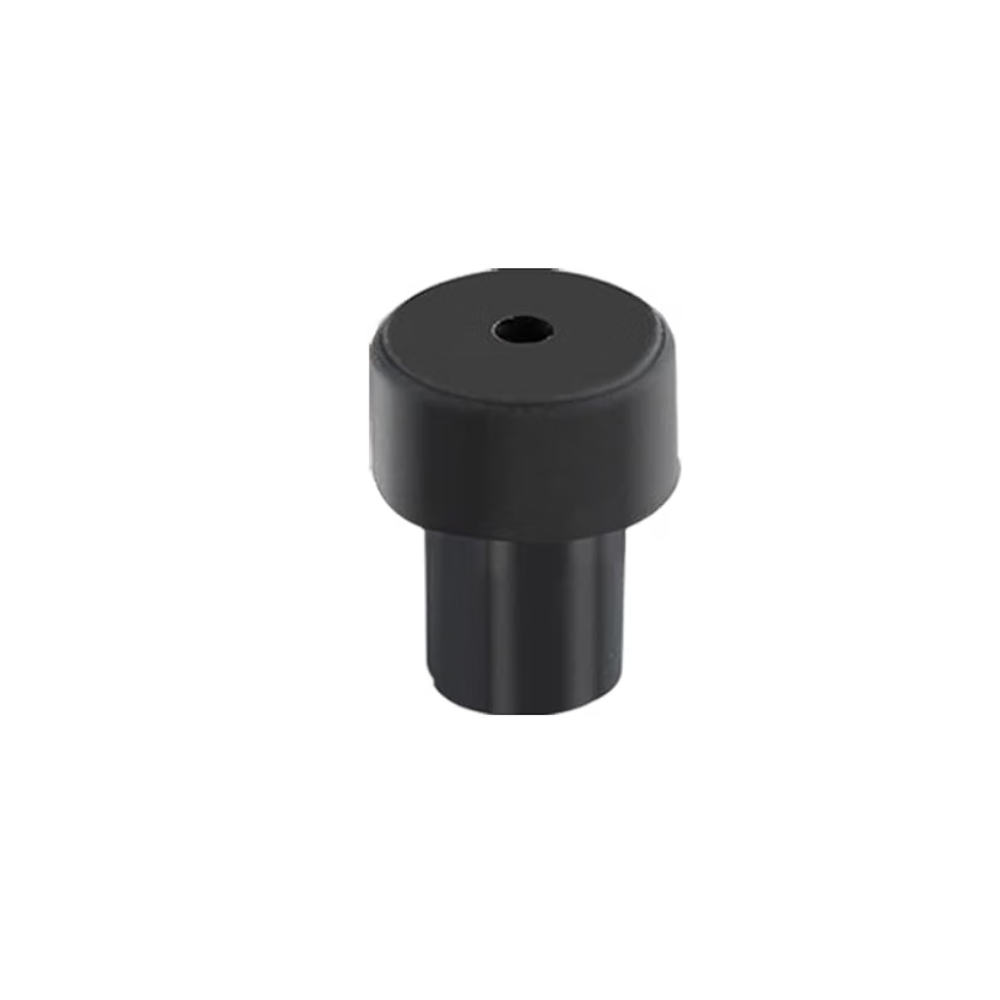

(4 Pack) XPARTCO W10919249 Range Burner Grate Foot
This listing is a 4-pack of the XPARTCO W10919249, an aftermarket replacement burner grate foot for Whirlpool ranges, and also fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models. This small rubber foot attaches to the underside of the cast iron burner grate — the grid that supports your pots and pans above the burners — providing stability, preventing the grate from scratching the cooktop surface, and cushioning it against the range.
Over time, these rubber feet wear down, crack, or tear apart from repeated heat exposure and the friction of grates being lifted and set back down during cleaning. Since a range typically has several grates each supported by multiple feet, it's common for more than one to need replacing around the same time — this 4-pack lets you refresh multiple feet in one order rather than purchasing them individually. A worn or missing foot typically shows up as a grate that wobbles, sits unevenly, or scratches the cooktop surface underneath. Installation requires adhesive to hold each new foot securely in place. It directly replaces W10919249, 1009149, 4455069, 74007356, 8003P033-60, W10465081, WP74007356, AP6037279, AWP42716, EAP11770098, PD00037900, PS11770098
Quick Answer
The (4 Pack) XPARTCO W10919249 Range Burner Grate Foot fixes Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges with a wobbling, uneven, or scratching burner grate from cracked, broken, or missing feet. This listing includes 4 feet. Replaces W10919249, 1009149, 4455069, 74007356, 8003P033-60, W10465081, WP74007356, AP6037279, AWP42716, EAP11770098, PD00037900, PS11770098. Adhesive is required to hold each foot in place — it isn't a simple snap-fit — and if a broken foot's remnant is stuck in the mounting hole, you may need to pick or drill it out first.
Common Problems This Part Fixes
- Burner grate wobbling or sitting unevenly
- Grate scratching the cooktop surface underneath
- Cracked, torn, or worn rubber feet
- Missing feet on one or more grate legs
- Grate noise or rattling during use
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
Each foot in this pack directly replaces the following OEM and cross-reference part numbers:
W10919249, 1009149, 4455069, 74007356, 8003P033-60, W10465081, WP74007356, AP6037279, AWP42716, EAP11770098, PD00037900, PS11770098.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This grate foot is compatible with select Whirlpool ranges, and also fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges built on the Whirlpool platform, including model numbers such as WFG505M0BS, WFG505M0BB1, WFG505M0BB2, WFG320M0BB1, WFG320M0BB2, WFG320M0BS0, WFG320M0BS2, WFG320M0BS3, WFG320M0BW1, WFG320M0BW2, WFG550S0LZ0, WFG550S0LZ1, WFG550S0LW0, WFG550S0LW1, WFG550S0LB0, WFG550S0LB1, WFG550S0LV0, WFG550S0LV1, WGG745S0FE05, WGG745S0FH05, WGG745S0FS05, KFGG500EWH3, KFGG504KPS0, and Amana AGR5715QDB, AGR5715QDQ, AGR5715QDS, AGR5715QDW, AGR5725QDB, AGR5725QDQ, AGR5725QDS, AGR5725QDW.
Note: Always verify your full model number before ordering, since Whirlpool uses several different grate foot sizes across its range lineup, including the related W10185266 (4-pack) and 814323 (5-pack) foot kits used on other models. Contact our support team with your model number if you're unsure this is the correct foot for your range.
Key Features
- Aftermarket replacement burner grate feet — stabilize the grate and protect the cooktop surface
- Resolves "wobbling grate," "scratching cooktop," and "cracked or missing foot" symptoms
- 4-pack lets you refresh multiple feet across one or more grates in a single order
- Attaches to the underside of the cast iron burner grate
- Direct drop-in replacement matching the original size and mounting
- Replaces W10919249, 1009149, 4455069, 74007356, 8003P033-60, W10465081, WP74007356, AP6037279, AWP42716, EAP11770098, PD00037900, PS11770098..
- Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XPW10919249 |
| OEM Part Number | W10919249 |
| Part Type | Range Burner Grate Foot |
| Condition | Aftermarket Replacement |
| Material | Rubber |
| Installation Method | Adhesive required (not a snap-fit) |
| Repair Difficulty | Easy |
| Quantity | 4 grate feet (4-pack) |
| Compatible Brands | Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore |
Installation Notes
Frequently Asked Questions
Why buy a 4-pack instead of a single foot?
Since a range's grates are supported by multiple feet across several grates, it's common for more than one to wear out around the same time, especially if they've all been exposed to the same years of heat and handling. One customer replaced all 10 feet on their range in a single session, and another ordered 8 feet at once specifically expecting the rest to fail soon after the first one did. A 4-pack covers this kind of multi-foot refresh in one order.
My grate wobbles and scratches the cooktop. Is this the part I need?
Yes, this is the most common symptom of worn or missing grate feet. Once the rubber foot cracks, wears thin, or falls off, the metal grate leg can sit directly against the cooktop surface, causing wobbling, uneven seating, and scratches.
An old foot broke and left a piece stuck in the hole. How do I remove it?
One customer used the pointed end of a pick to probe the mounting hole until the torn remnant of the old foot came free. If picking doesn't fully clear it, another customer found they needed to carefully drill out the remaining portion before cleaning the opening and installing the new foot.
Does this pack come with adhesive, or do I need to buy that separately?
Adhesive is required to hold each foot in place and is not included — you'll need to source a suitable adhesive separately for all 4 feet. If the fit feels slightly loose, one customer resolved this by using a hot glue gun to anchor the feet securely.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the size and mounting fit of the original W10919249 burner grate foot used in compatible Whirlpool, Maytag, KitchenAid, and related ranges.
