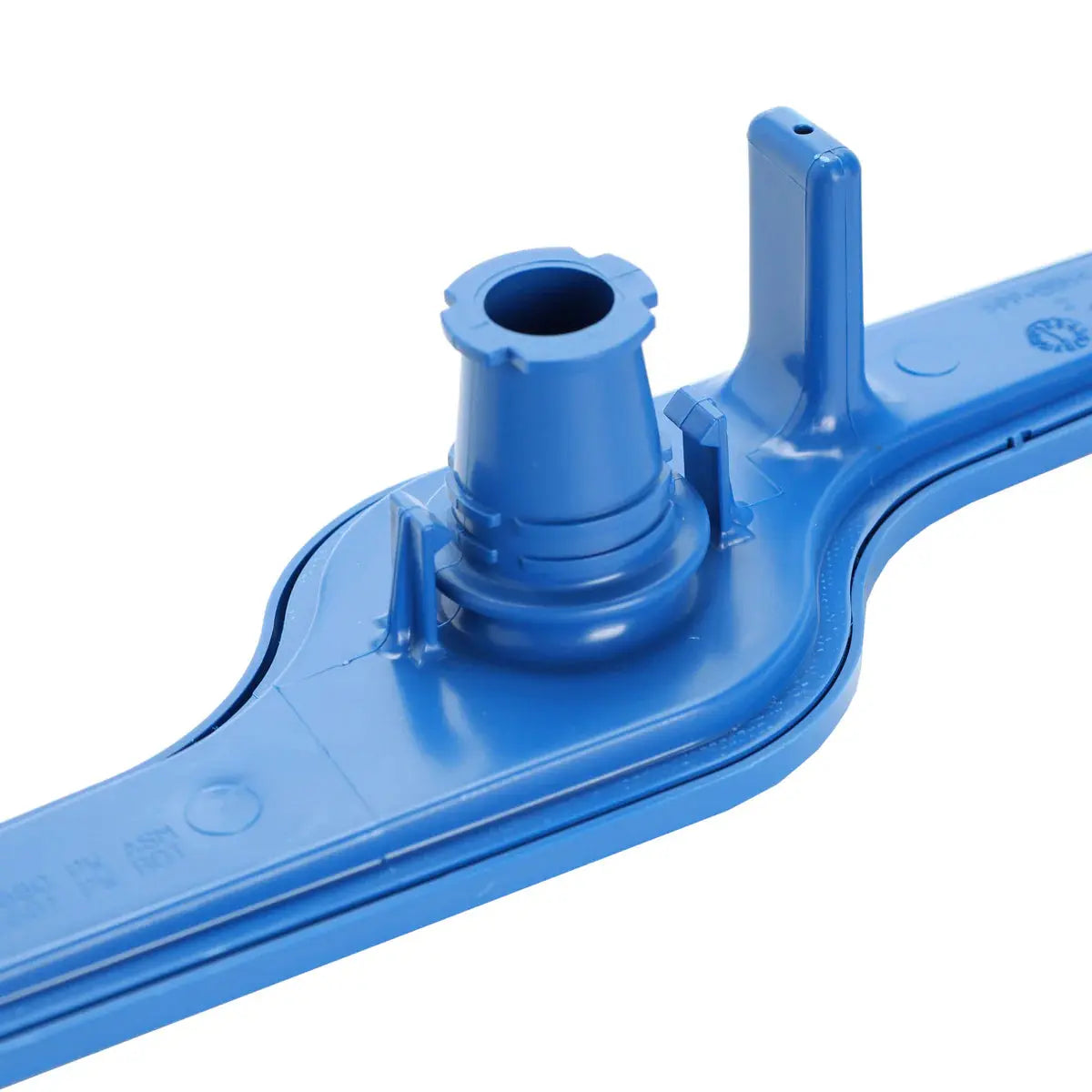

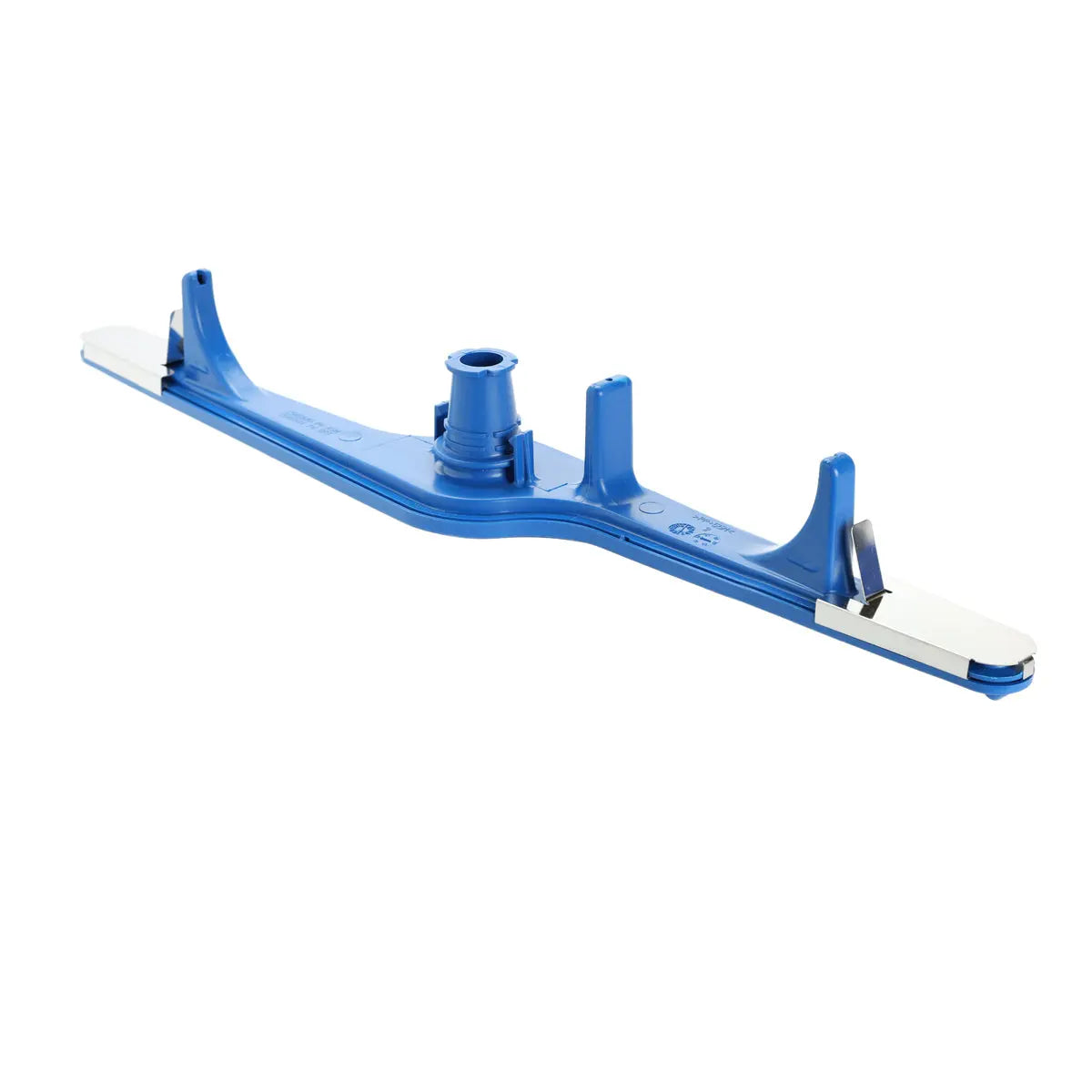

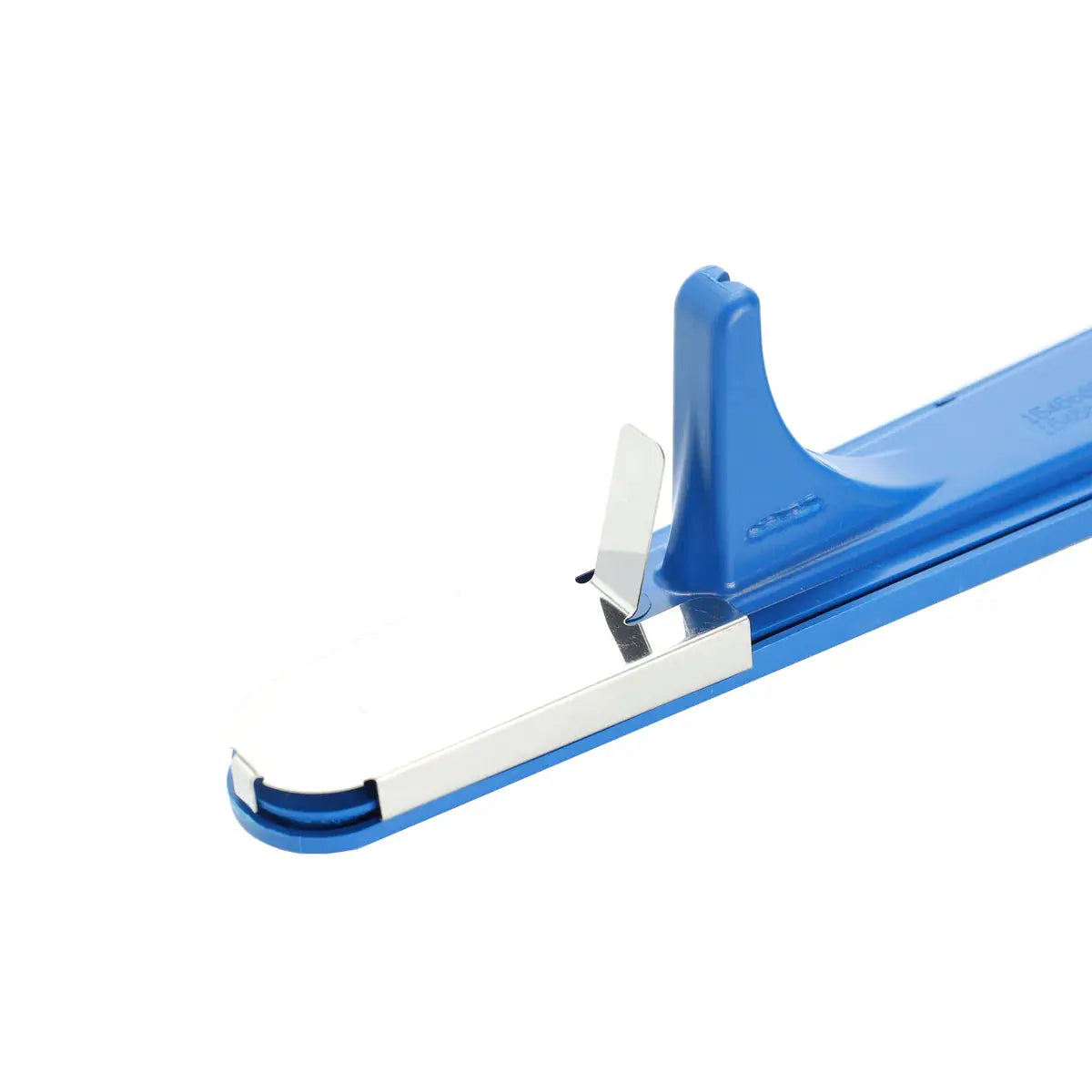

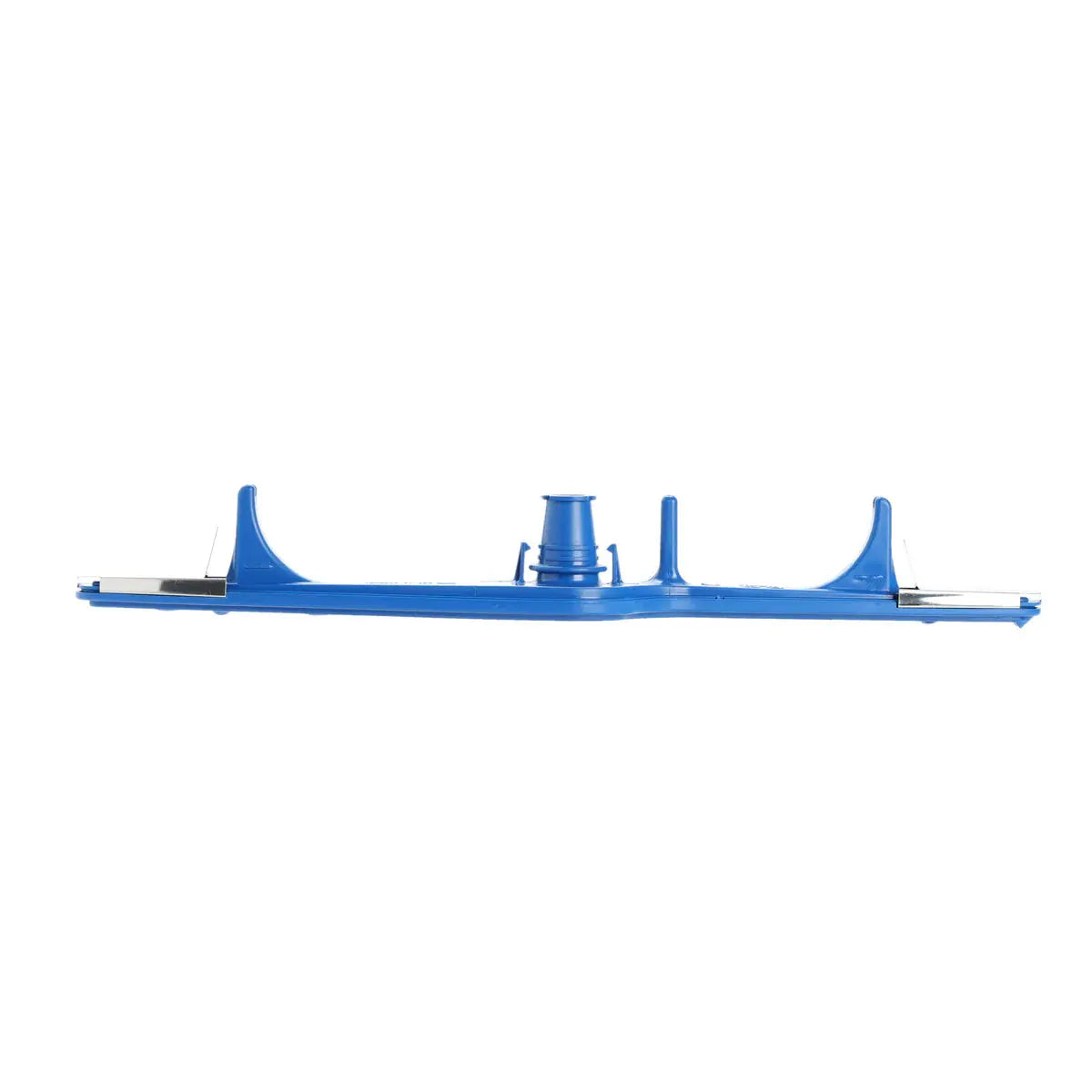

5304517203 Genuine OEM Frigidaire Dishwasher Lower Spray Arm
The 5304517203 is a genuine Frigidaire OEM lower spray arm for Frigidaire, Electrolux, Gibson, Crosley, Kelvinator, Westinghouse, and Kenmore dishwashers. Positioned at the bottom of the dishwasher tub, this arm rotates as water is pumped through it, spraying water in all directions through its nozzle openings to clean dishes in the lower rack. It snaps directly into the bottom sump assembly and is essential for proper water distribution during the wash cycle.
Made of durable plastic and metal, finished in gray/blue. Over time, the arm can crack, warp, or wear from general use and repeated exposure to hot water and detergent — high heat exposure in particular is a documented cause of failure. A broken or worn spray arm typically shows up as visible damage on the arm itself, dishes in the lower rack not getting cleaned properly, reduced or uneven water coverage, or the arm having difficulty rotating or getting stuck. It directly replaces 154568001, 5304506526, 154568002, 1542508, 154250801, 154250901, 154281101, 1543358, 154414101, 154414102, 4840174, PD00047210, EAP12585623, AP6783883, AFR18880, PS12585623
Quick Answer
The 5304517203 Genuine OEM Frigidaire Dishwasher Lower Spray Arm fixes Frigidaire, Electrolux, Gibson, Crosley, Kelvinator, Westinghouse, and Kenmore dishwashers where the lower rack isn't getting cleaned properly, water coverage is reduced or uneven, or the arm won't rotate freely or has visible cracks. Snaps into the bottom sump assembly. Replaces 154568001, 5304506526, 154568002, 1542508, 154250801, 154250901, 154281101, 1543358, 154414101, 154414102, 4840174, PD00047210, EAP12585623, AP6783883, AFR18880, PS12585623. After installing, confirm the arm spins freely by hand and doesn't contact the heating element before running a cycle.
Common Problems This Part Fixes
- Dishes in the lower rack not getting cleaned properly
- Reduced or uneven water coverage during the wash cycle
- Spray arm that won't rotate freely or gets stuck
- Visible cracks, warping, or damage on the arm itself
- Arm that has come loose or detached from the sump assembly
- Clogged nozzle holes reducing water pressure and spray coverage
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dishwasher lower spray arm directly replaces the following OEM and cross-reference part numbers:
5304517203, 154568001, 5304506526, 154568002, 1542508, 154250801, 154250901, 154281101, 1543358, 154414101, 154414102, 4840174, PD00047210, EAP12585623, AP6783883, AFR18880, PS12585623
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lower spray arm is compatible with select Frigidaire dishwashers, and also fits select Electrolux, Gibson, Crosley, Kelvinator, Westinghouse, and Kenmore dishwashers built on the same platform.
Note: Non-genuine versions of this exact part number are sold by several third-party sellers. A customer using a non-genuine version of this spray arm reported it came loose and broke during operation, so confirm you're ordering the genuine Frigidaire part rather than a lower-cost imitation. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Genuine Frigidaire OEM part — factory-specified nozzle pattern and rotation fit
- Snaps directly into the bottom sump assembly for a secure, no-tools installation
- Resolves "not cleaning lower rack dishes," "uneven water coverage," and "won't rotate freely" symptoms
- Durable plastic and metal construction, gray/blue finish
- Approximate dimensions: 16.00" x 3.10" x 3.10" (L x W x H)
- Direct drop-in replacement — no modification required
- Replaces 154568001, 5304506526, 154568002, 1542508, 154250801, 154250901, 154281101, 1543358, 154414101, 154414102, 4840174, PD00047210, EAP12585623, AP6783883, AFR18880, PS12585623
- Compatible with Frigidaire, Electrolux, Gibson, Crosley, Kelvinator, Westinghouse, and Kenmore dishwashers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number | 5304517203 |
| Part Type | Dishwasher Lower Spray Arm |
| Condition | Genuine OEM |
| Brand | Frigidaire |
| Location | Bottom of the dishwasher tub, in the lower sump assembly |
| Material | Plastic and metal |
| Color | Gray / Blue |
| Dimensions | Approx. 16.00" x 3.10" x 3.10" (L x W x H) |
| Repair Difficulty | Very Easy — no tools required |
| Quantity | 1 lower spray arm |
| Compatible Brands | Frigidaire, Electrolux, Gibson, Crosley, Kelvinator, Westinghouse, Kenmore |
Installation Notes
Frequently Asked Questions
My dishes in the lower rack aren't getting clean. Is this the part I need?
Yes, this is one of the most common symptoms of a worn or damaged lower spray arm. If the arm is cracked, clogged, or not rotating freely, water can't reach dishes in the lower rack evenly, leaving them dirty even when the upper rack comes out clean.
I've read that a spray arm can come loose during operation. How do I prevent that?
This has been reported, particularly with non-genuine imitation parts under the same number. To help prevent it, make sure the new arm snaps fully and securely onto the sump assembly during installation, and spin it gently by hand to confirm it's seated correctly and rotates without wobbling before running your first cycle with it installed.
Do I need any tools to replace this spray arm?
No. This is a simple snap-in, snap-out repair — release the locking tabs on the old arm to remove it, and press the new one onto the sump assembly until it clicks into place. No tools are required.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Frigidaire to factory specifications — guaranteed fit, materials, and performance. It matches the original nozzle pattern, dimensions, and sump connection of the lower spray arm originally installed in your dishwasher.
