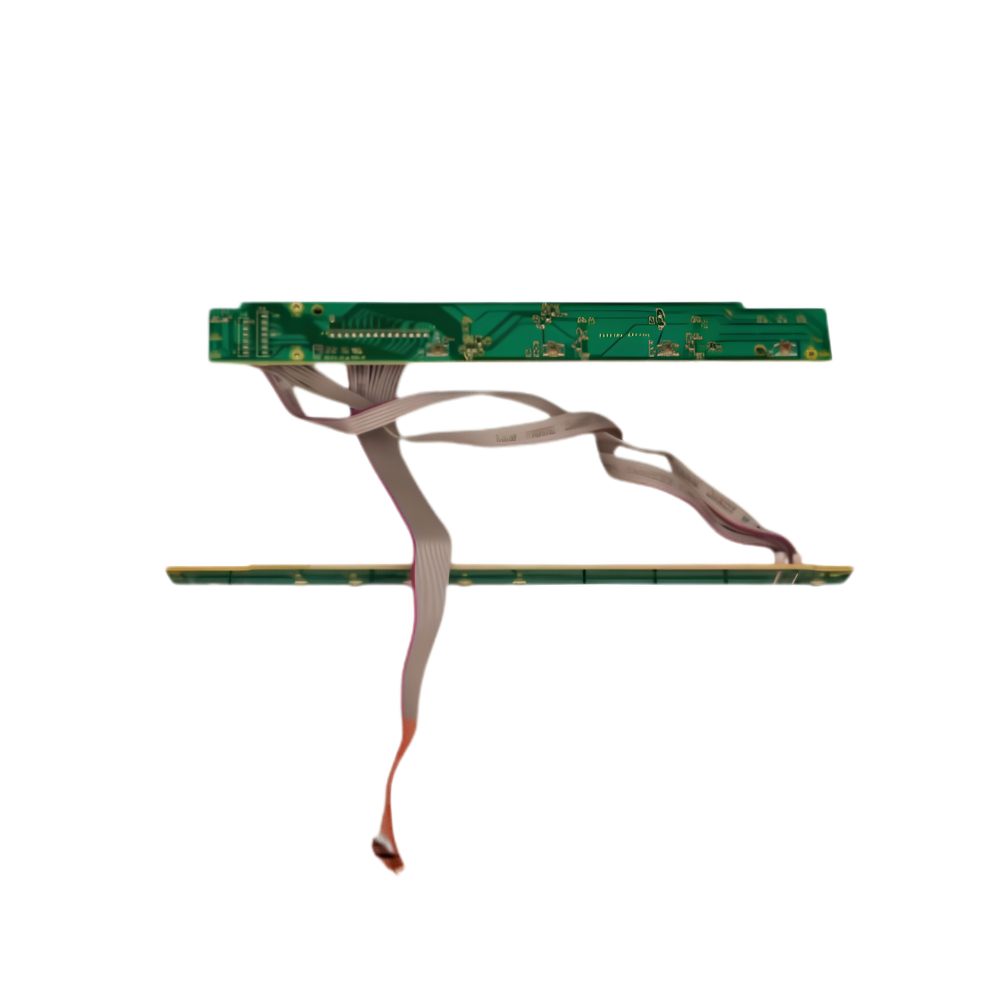

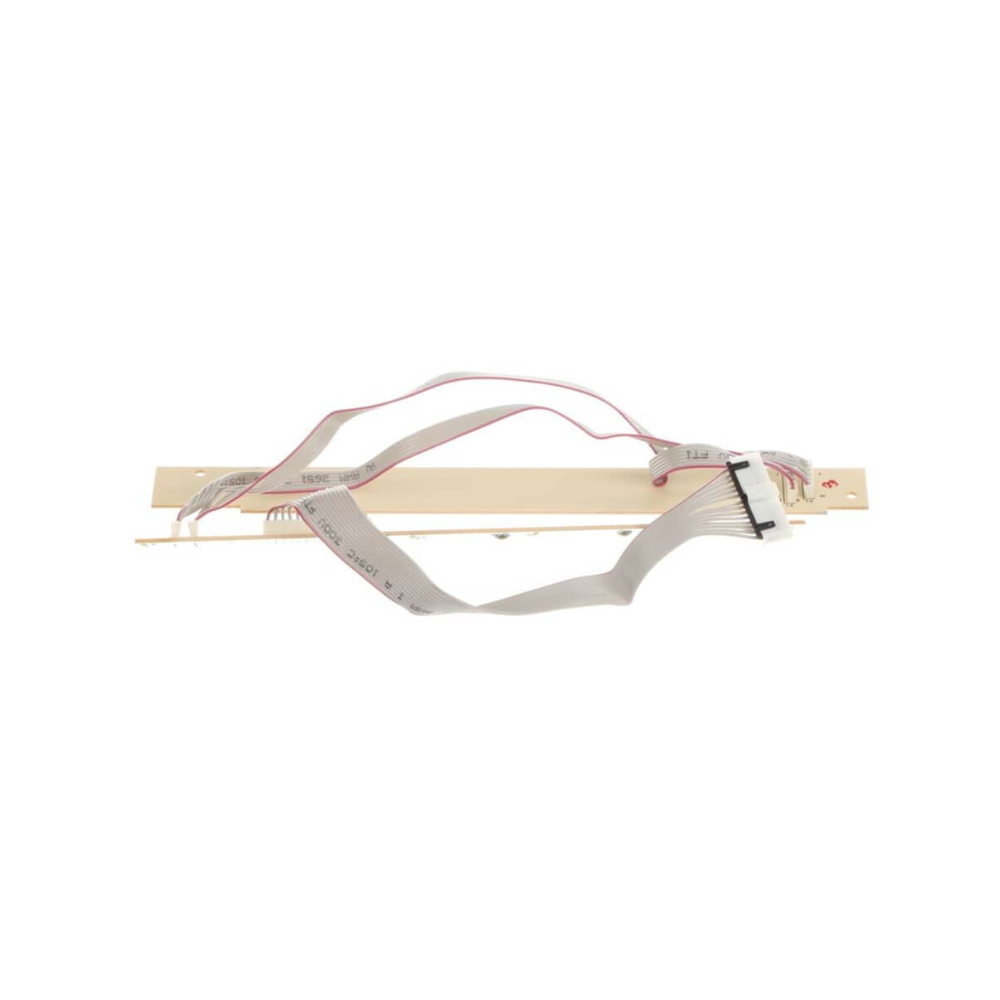

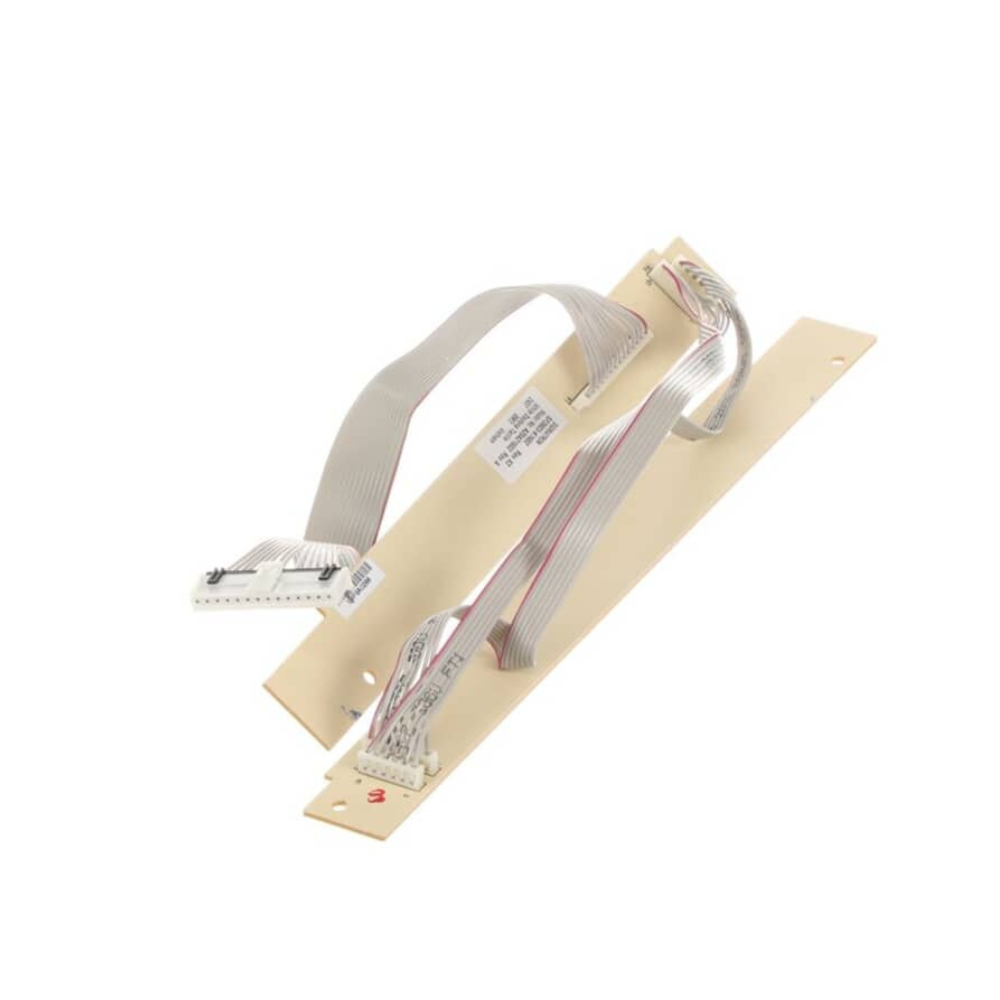

Frigidaire 5304532245 Dishwasher PCB Switch Assembly
Genuine OEM user-control and display switch assembly with tactile PCB and wiring harness for select Frigidaire and Electrolux-built dishwashers.
Product Overview
The Frigidaire 5304532245 Dishwasher PCB Switch Assembly is a Genuine OEM user-interface component that allows the dishwasher to receive button selections and communicate those inputs through the control system.
This assembly is described by Frigidaire parts sources as a switch assembly / tactile PCB with wiring harness and as a user control and display board.
Quick Answer
5304532245 is the Genuine Frigidaire OEM electronic switch/PCB assembly used behind the dishwasher console on compatible models. It includes the tactile switch PCB and harness. The separate console housing/overlay is part 5304533992 and is not included with this electronic assembly unless specifically shown or stated in the listing.
Common Problems This Part May Fix
- Dishwasher buttons do not respond
- Control-panel lights flash or behave erratically
- Dishwasher will not start after selections are made
- Dishwasher starts or stops unexpectedly due to a failed user interface
- Individual tactile switches on the control panel fail to register
Replaces and Cross-References
Cross-reference numbers are provided for identification. Always verify the complete dishwasher model number before ordering.
Compatibility
Confirmed compatible applications include select Frigidaire and Electrolux-built 24-inch dishwashers such as:
Important: This is only a partial fitment list. Verify the full model number from the dishwasher rating label before purchase.
Key Features
- Genuine Frigidaire OEM replacement part
- Tactile PCB switch assembly
- Includes wiring harness
- Functions as the dishwasher user-control/display interface
- Designed for direct fit on compatible models
Product Specifications
| Manufacturer Part Number | 5304532245 |
| Brand | Frigidaire |
| Part Type | Dishwasher PCB Switch / User Control Assembly |
| OEM Status | Genuine OEM |
| Assembly Description | Tactile PCB with Wiring Harness |
| Appliance Type | Dishwasher |
| Condition | New |
| Console Housing Included? | No — 5304533992 is separate |
Installation Notes
- Disconnect electrical power to the dishwasher at the breaker before service.
- Shut off the water supply if the service procedure requires moving the dishwasher.
- Open the inner door panel according to the model-specific service procedure.
- Photograph connector locations before disconnecting the original switch assembly.
- Transfer the new assembly into the existing console housing if the housing is being reused.
- Reconnect each harness plug fully and secure the door panels before restoring power.
Important: Electronic control parts should be handled using appropriate electrostatic-discharge precautions. Do not order this part when only the cosmetic console housing is damaged; the separate housing/overlay assembly is 5304533992.
Frequently Asked Questions
Is 5304532245 a Genuine OEM part?
Yes. It is a Genuine Frigidaire OEM dishwasher switch/user-control assembly.
Does it include the PCB and wiring harness?
Yes. Parts catalogs describe it as a tactile PCB switch assembly with harness.
Does this include the plastic console housing?
No. The separate console housing/overlay used on compatible models is 5304533992.
What symptoms can a failed switch assembly cause?
Possible symptoms include nonresponsive buttons, flashing controls, failure to start, or erratic user-interface behavior. Confirm the diagnosis before replacing electronic parts.
Shop With Confidence
Verify the dishwasher model number before ordering. This is the Genuine OEM electronic switch/PCB assembly, not the separate cosmetic console housing.
