AAN73209838 Genuine OEM LG Washer Drain Pump & Cabinet Base Assembly

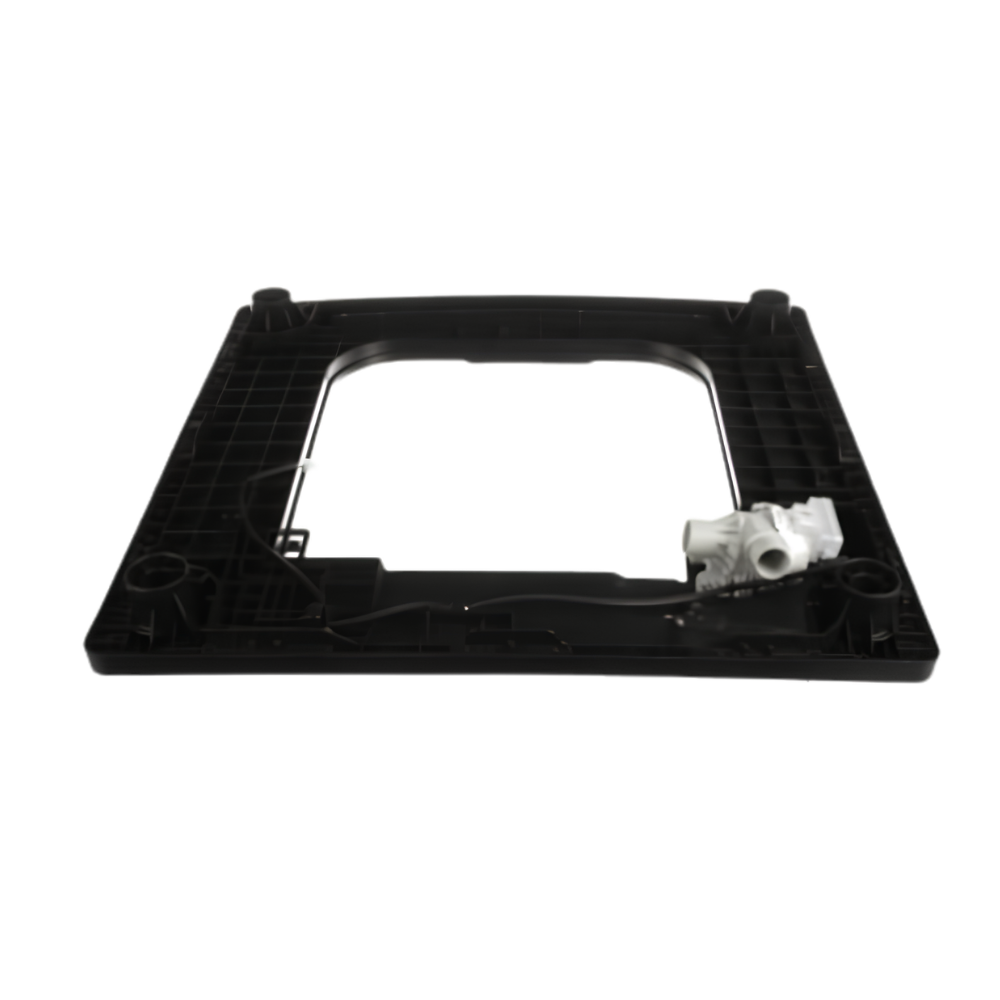

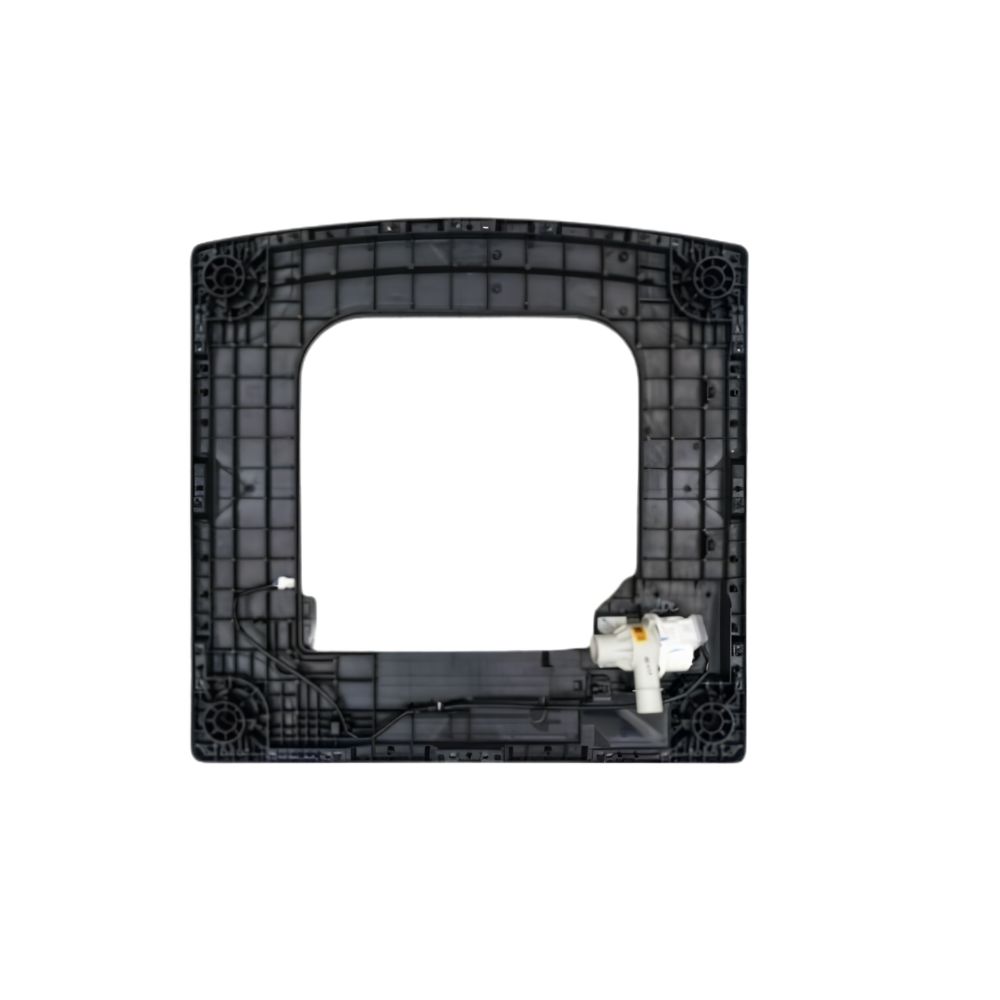

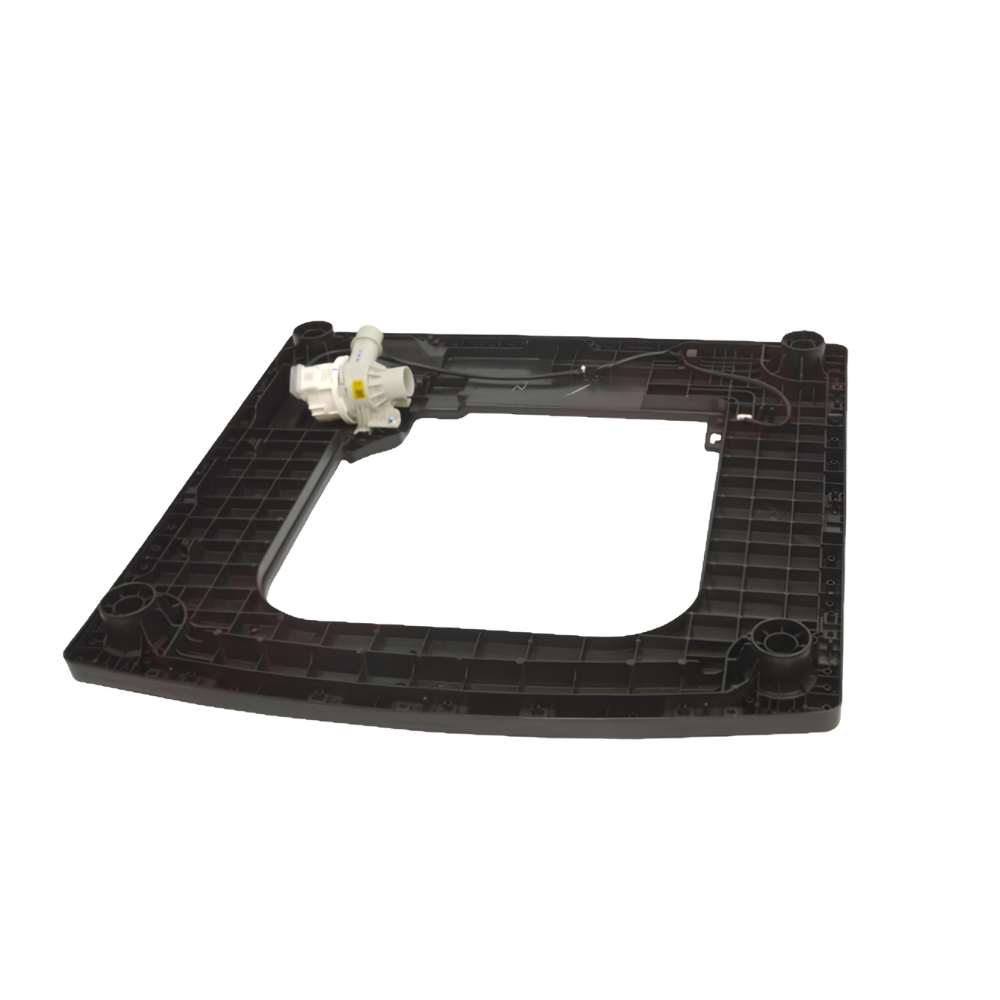

The AAN73209838 is a genuine LG OEM combined drain pump and cabinet base assembly for LG washers. This assembly bundles the washer's drain pump — which pumps water out of the drum and through the drain hose at the end of each cycle — together with the cabinet base structure it's mounted to. Because these two components ship together as one assembly, replacing this part addresses both the drain pump function and the base structure it sits in at the same time.
Common causes of failure include a worn or jammed drain pump motor, or physical damage or corrosion to the cabinet base itself over years of use. A failing assembly typically shows up as the washer failing to drain, unusual noise during the drain phase, or water leaking from underneath the unit.
Quick Answer
The AAN73209838 Genuine OEM LG Washer Drain Pump & Cabinet Base Assembly fixes LG washers that won't drain, make unusual noise during the drain phase, or are leaking water from underneath the unit. Combined drain pump and cabinet base assembly. This is a larger, heavier assembly than a standalone drain pump — installation involves more disassembly than a simple pump swap.
Common Problems This Part Fixes
- Washer not draining — standing water left in the tub after a cycle
- Unusual noise during the drain phase of the cycle
- Water leaking from underneath the washer
- Cycle stalling or failing to advance past the drain step
- Visible damage or corrosion to the cabinet base structure
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
AAN73209838, 4873470, 4985882, AHA75673401, AP6991753, AP6991765, EAP12580277, EAP16222263, FIX16222263, PS12580277, PS16222263, ALG51685, PD00091778
We were not able to confirm additional cross-reference or superseding part numbers for this specific part from reliable sources at the time this page was built, so none are listed here rather than guessed. If you have a cross-reference number for your appliance, contact our support team and we will verify compatibility before you order.
Compatibility
This drain pump and cabinet base assembly is compatible with select LG top-load washers, including model numbers such as WT7060CW, WT7100CW, WT7250CW, WT7300CV, T1780WFHT, and T1789EFH5T/T1789EFH5U/T1789EFHT/T1789EFHKD variants.
Note: This is a combined assembly, not a standalone drain pump — if your washer only needs the pump replaced and the cabinet base is intact, ask our support team whether a standalone pump option is available for your model before ordering this larger assembly. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Genuine LG OEM part — factory-specified pump and base assembly
- Combined drain pump and cabinet base assembly in a single part
- Resolves "won't drain," "noisy drain phase," and "leaking underneath the washer" symptoms
- Direct drop-in replacement — matches the original mounting and hose connections
- Compatible with a range of LG top-load washer models
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number | AAN73209838 |
| Part Type | Washer Drain Pump & Cabinet Base Assembly |
| Condition | Genuine OEM |
| Brand | LG |
| Application | Top-Load Washers |
| Function | Pumps water from the drum through the drain hose; provides the cabinet base structure |
| Repair Difficulty | Moderate to Hard — larger assembly than a standalone pump |
| Quantity | 1 combined assembly |
| Compatible Brand | LG |
Installation Notes
Frequently Asked Questions
Do I need this whole assembly, or is there a smaller drain pump option for my model?
Some LG washer models offer a standalone drain pump as a separate, smaller part, while others require this combined pump-and-base assembly because the two are integrated on that particular platform. Check with our support team using your model number to confirm whether a standalone pump is available for your washer before ordering this larger assembly, since it can save you time and cost if a smaller part fits your model.
Why is this repair more involved than a typical drain pump replacement?
Because this part includes the cabinet base structure along with the pump, accessing and replacing it typically involves more disassembly than swapping a standalone pump alone — you're not just disconnecting a pump, you're also working with part of the washer's supporting frame. Budget more time for this repair than you would for a simple pump-only replacement, and consider having a second person help support the cabinet during removal and installation.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original pump design, hose connections, and cabinet base mounting configuration of the assembly originally installed in your washer.
