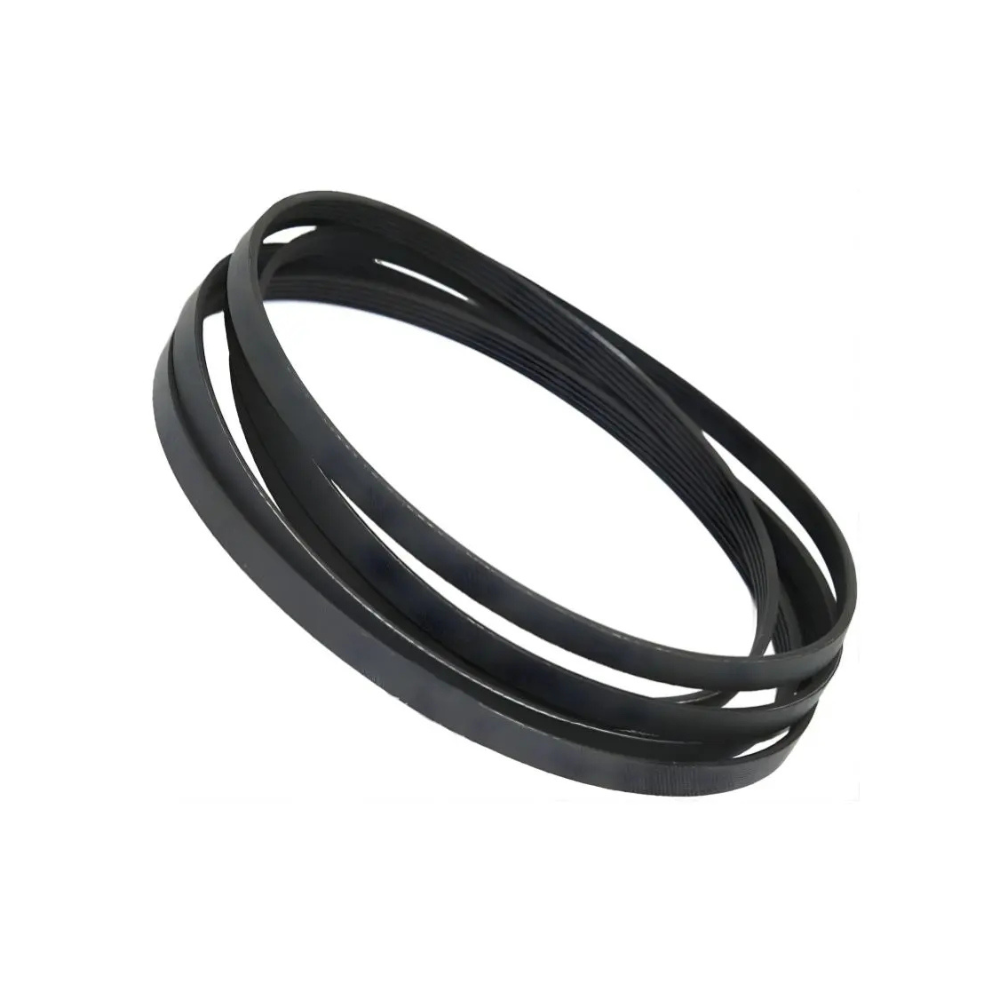

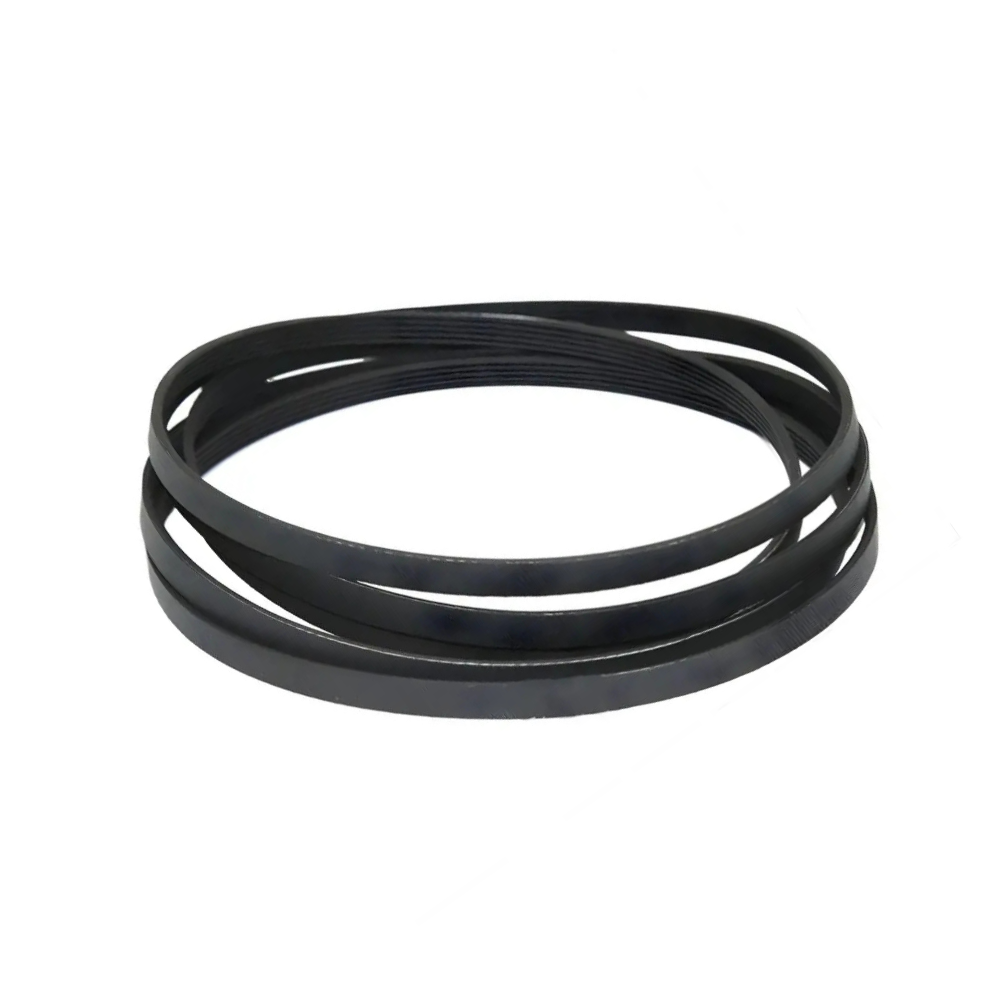

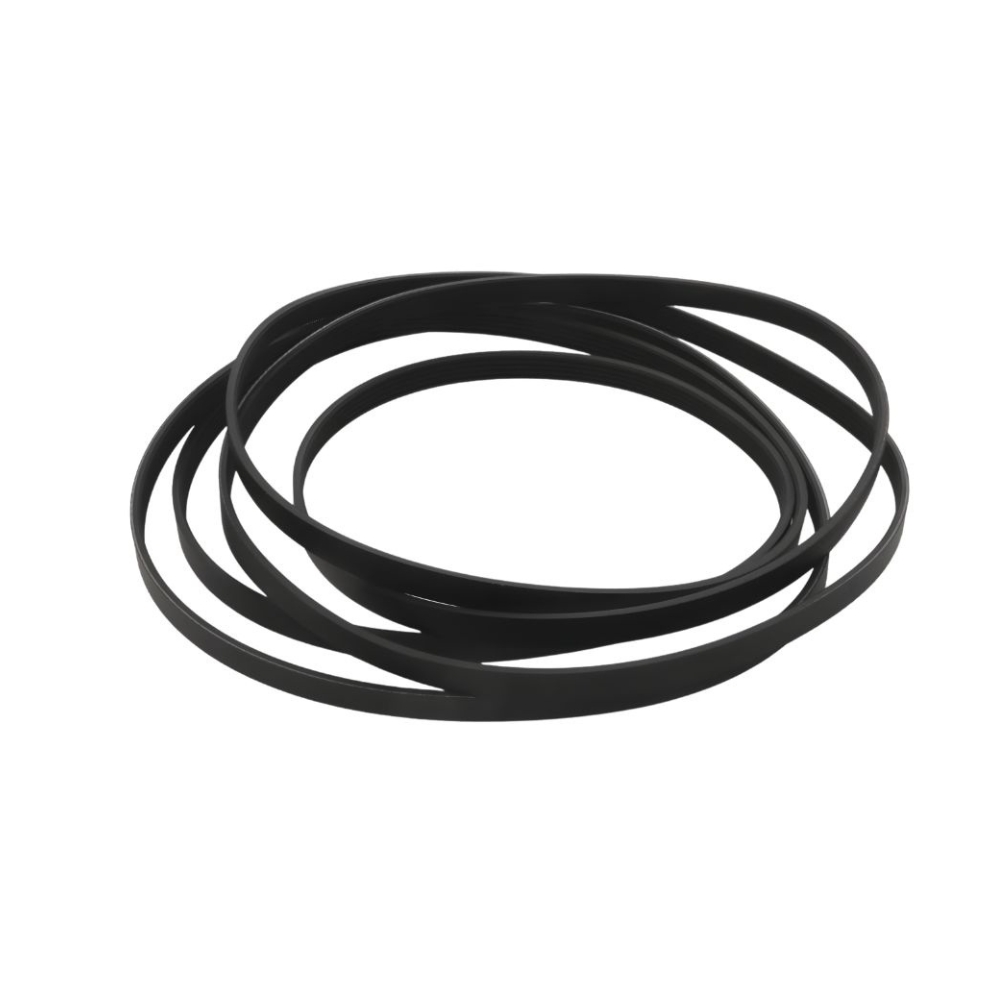

Choice 6602-001655 Dryer Drum Belt for Samsung
Aftermarket 92-inch, 5-rib / 4-groove dryer drum drive belt for select Samsung and Kenmore dryers.
Product Overview
The Choice 6602-001655 dryer drum belt transfers power from the dryer motor pulley to the drum so the drum can rotate during the drying cycle.
This Choice Manufactured Parts aftermarket belt is designed as a replacement for Samsung belt 6602-001655 on compatible dryers.
Quick Answer
6602-001655CM is a 92-inch, 5-rib / 4-groove aftermarket dryer drum belt for select Samsung and Kenmore dryers. It replaces Samsung 6602-001655 and 6602-001314. Verify the complete dryer model number before ordering.
Common Problems This Part May Fix
- Dryer motor runs but drum does not turn
- Broken or snapped drum belt
- Belt is frayed, glazed, cracked, or stretched
- Thumping or slapping noise from a damaged belt
- Drum turns intermittently or slips under load
Replaces and Cross-References
Cross-reference numbers are provided for identification. This is a Choice Manufactured Parts aftermarket replacement and is not manufactured by Samsung.
Compatibility
Fits select Samsung and Kenmore dryers using the 6602-001655 / 5-rib belt configuration. Compatible model examples include:
Important: This is a partial compatibility list. Match the complete dryer model number and original belt number before purchasing.
Key Features
- Choice Manufactured Parts aftermarket replacement
- 92-inch drum drive belt
- 5 ribs / 4 grooves
- Approx. 5/16-inch belt width
- Ribbed drive surface with smooth outer/back surface
- For select Samsung and Kenmore dryers
Specifications
| Choice Part Number | 6602-001655CM |
| Brand | Choice Manufactured Parts |
| Part Type | Dryer Drum Drive Belt |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Length | Approx. 92 in. |
| Width | Approx. 5/16 in. |
| Ribs / Grooves | 5 Ribs / 4 Grooves |
| Primary Replacement For | Samsung 6602-001655 |
| Application | Dryer Drum Drive System |
Installation Notes
- Disconnect dryer power before service.
- Access the drum and note the original belt routing before removal.
- Route the replacement belt around the drum, idler pulley, and motor pulley exactly as the original.
- Install the ribbed side toward the drum/pulley contact surface as required by the dryer design.
- Confirm the idler pulley applies proper tension and spins freely.
- Rotate the drum by hand before reassembly to verify smooth belt tracking.
Diagnostic tip: Before installing a new belt, inspect the idler pulley, drum support rollers, motor pulley, and felt seals. A seized or damaged support component can quickly damage a replacement belt.
FAQ
Is this a Genuine Samsung OEM belt?
No. This is a Choice Manufactured Parts aftermarket replacement for Samsung 6602-001655.
How long is the belt?
Choice specifies this belt at approximately 92 inches long.
How many ribs does it have?
It has 5 ribs and 4 grooves.
Does it replace 6602-001314?
Yes. 6602-001314 is a commonly listed earlier/cross-reference number for the 6602-001655 belt family.
Does this include the idler pulley?
No. This listing is for the drum belt only unless the product package explicitly states otherwise.
Shop With Confidence
Match your complete dryer model number and original belt number before ordering. Compatibility assistance is available if you are unsure which belt your dryer uses.
