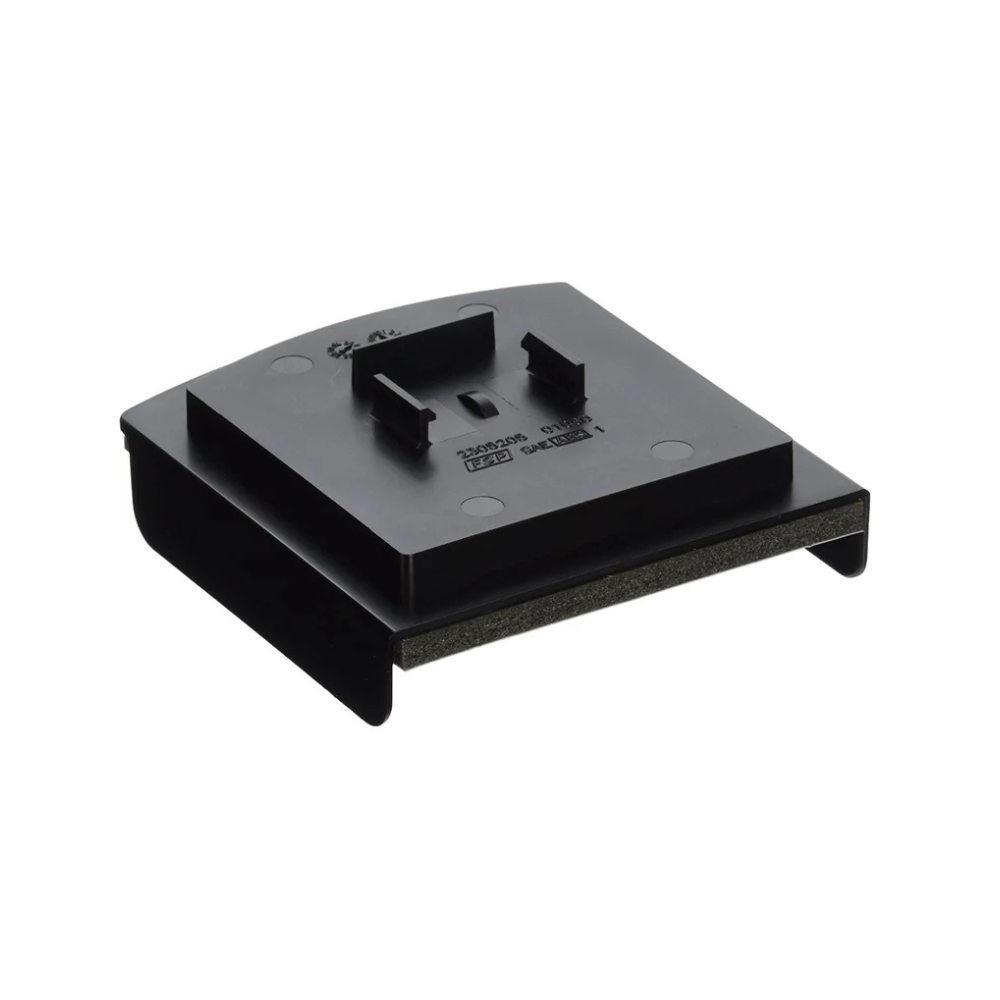

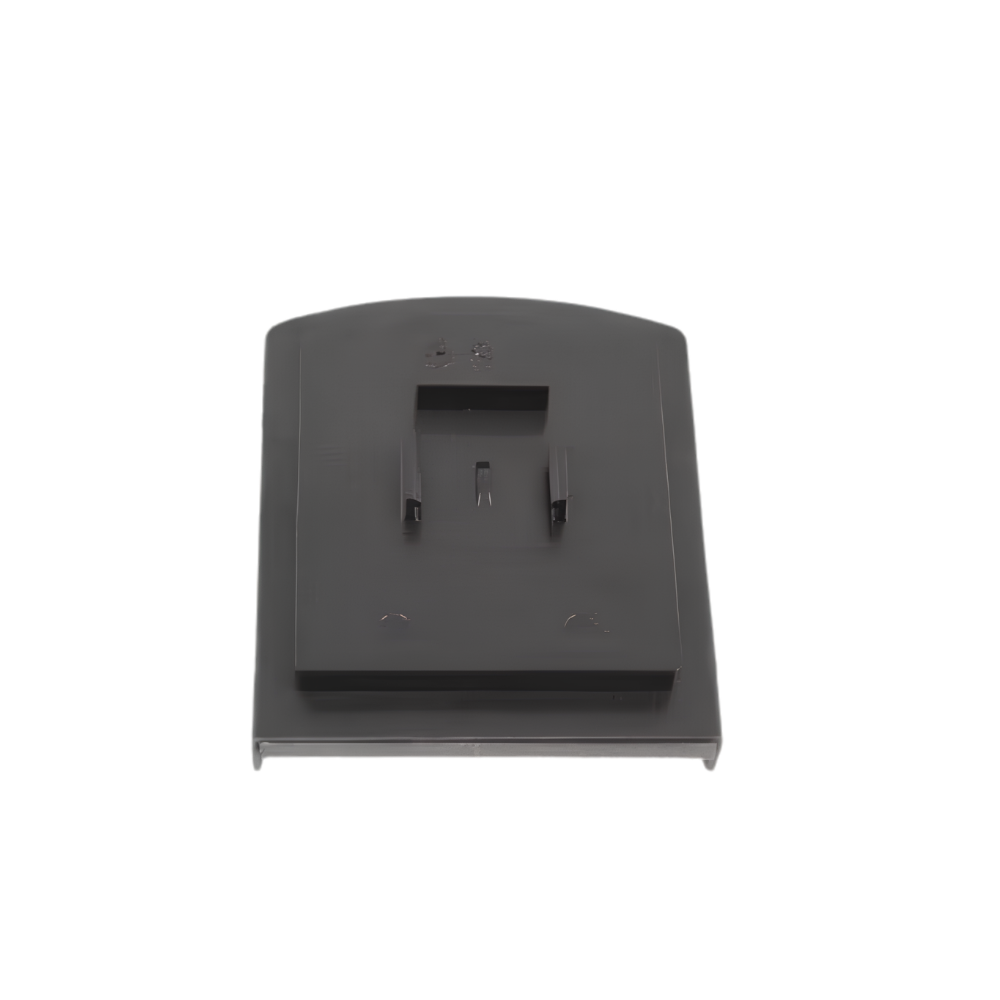

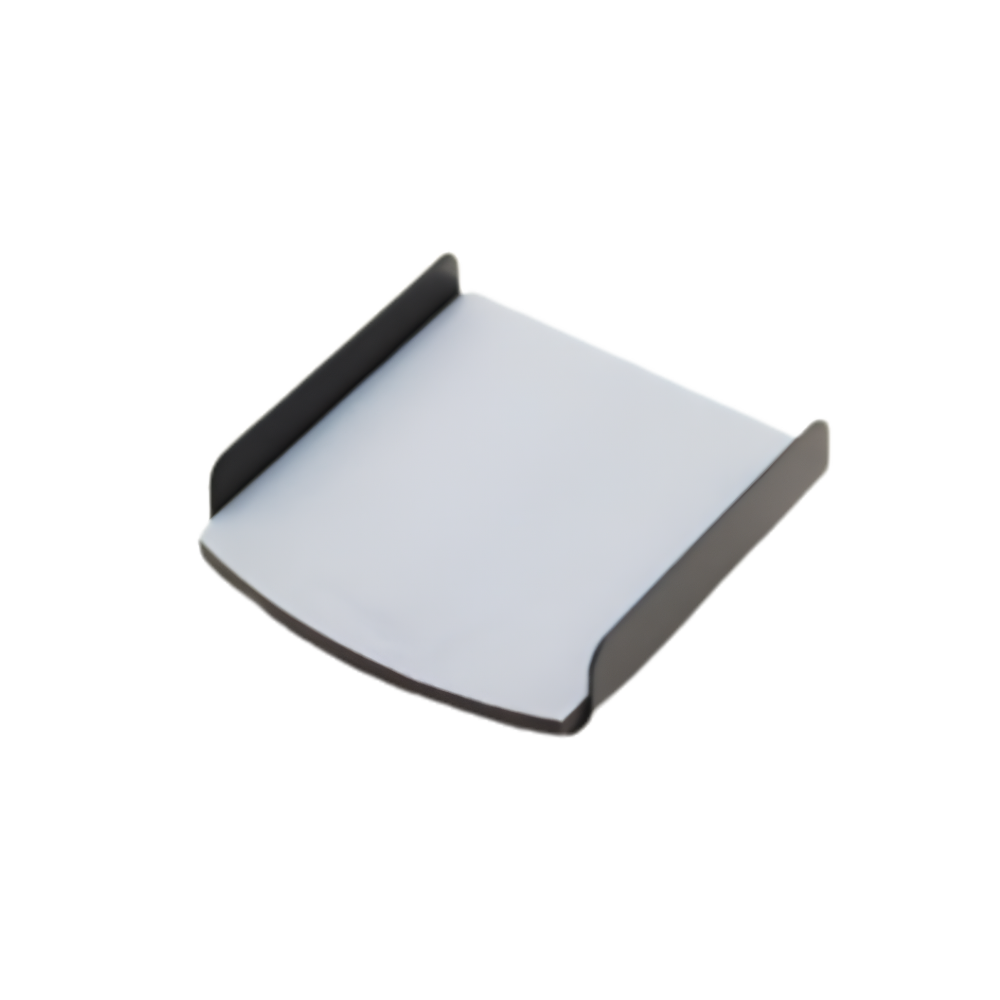

Whirlpool WP2305258 Refrigerator Ice Dispenser Door Chute
Genuine OEM ice chute door for select Whirlpool, KitchenAid, JennAir, and Kenmore side-by-side refrigerators.
Product Overview
The Whirlpool WP2305258 Refrigerator Ice Dispenser Door Chute is a Genuine OEM dispenser component that opens to allow ice to pass through the chute and closes to help seal the dispenser opening when not in use.
A damaged, warped, or sticking chute door can allow ice to spill, prevent the dispenser from sealing correctly, or cause frost and moisture around the dispenser area.
Quick Answer
WP2305258 is the Genuine Whirlpool OEM ice dispenser chute door. It replaces original part number 2305258 and fits select Whirlpool-built side-by-side refrigerators.
Common Problems This Part May Fix
- Ice falls out of the dispenser unexpectedly
- Ice chute door will not close fully
- Door is cracked, warped, or broken
- Warm air enters through the dispenser opening
- Frost or moisture forms around the chute
- Dispenser flap does not seal after dispensing
Replaces and Cross-References
Cross-reference numbers are supplied for identification. Verify the refrigerator model number before ordering.
Compatibility
Confirmed applications include select Whirlpool-built side-by-side refrigerators sold under Whirlpool, KitchenAid, JennAir, and Kenmore brands. Examples include:
Important: This is only a partial fitment list. Verify the complete model number from the refrigerator data label before purchase.
Key Features
- Genuine Whirlpool OEM replacement part
- Ice dispenser chute door / flap
- Helps direct ice into the dispensing chute
- Closes after dispensing to help seal the opening
- Direct-fit component for compatible models
Product Specifications
| Manufacturer Part Number | WP2305258 |
| Brand | Whirlpool |
| Part Type | Refrigerator Ice Dispenser Door Chute |
| OEM Status | Genuine OEM |
| Appliance Type | Refrigerator |
| Condition | New |
| Package Quantity | 1 Ice Chute Door |
Installation Notes
- Disconnect refrigerator power before service.
- Remove the dispenser trim or front housing according to the model-specific procedure.
- Photograph the original chute-door position and linkage before removal.
- Inspect the support bracket, spring, motor/actuator, and seal surfaces for damage.
- Install the new chute door in the same orientation and confirm free movement.
- Reassemble the dispenser and confirm the door opens during dispensing and closes completely afterward.
Diagnostic tip: If the chute door does not close after replacement, inspect the actuator motor, support bracket, spring, linkage, and dispenser control before replacing additional parts.
Frequently Asked Questions
Is WP2305258 a Genuine OEM part?
Yes. It is a Genuine Whirlpool OEM refrigerator dispenser ice chute door.
Does WP2305258 replace 2305258?
Yes. WP2305258 is the current replacement for original part number 2305258.
What does the ice chute door do?
It opens when ice is dispensed and closes afterward to help seal the dispenser opening.
Will this fit every Whirlpool refrigerator?
No. It fits specific dispenser designs. Confirm the complete refrigerator model number before ordering.
Shop With Confidence
Verify the refrigerator model before ordering. This listing is for the Genuine Whirlpool OEM WP2305258 ice chute door.
