Whirlpool WPW10184813 Refrigerator Genuine OEM Ice Dispenser Motor
Genuine OEM ice-dispenser door motor for select Whirlpool-built refrigerators.
Product Overview

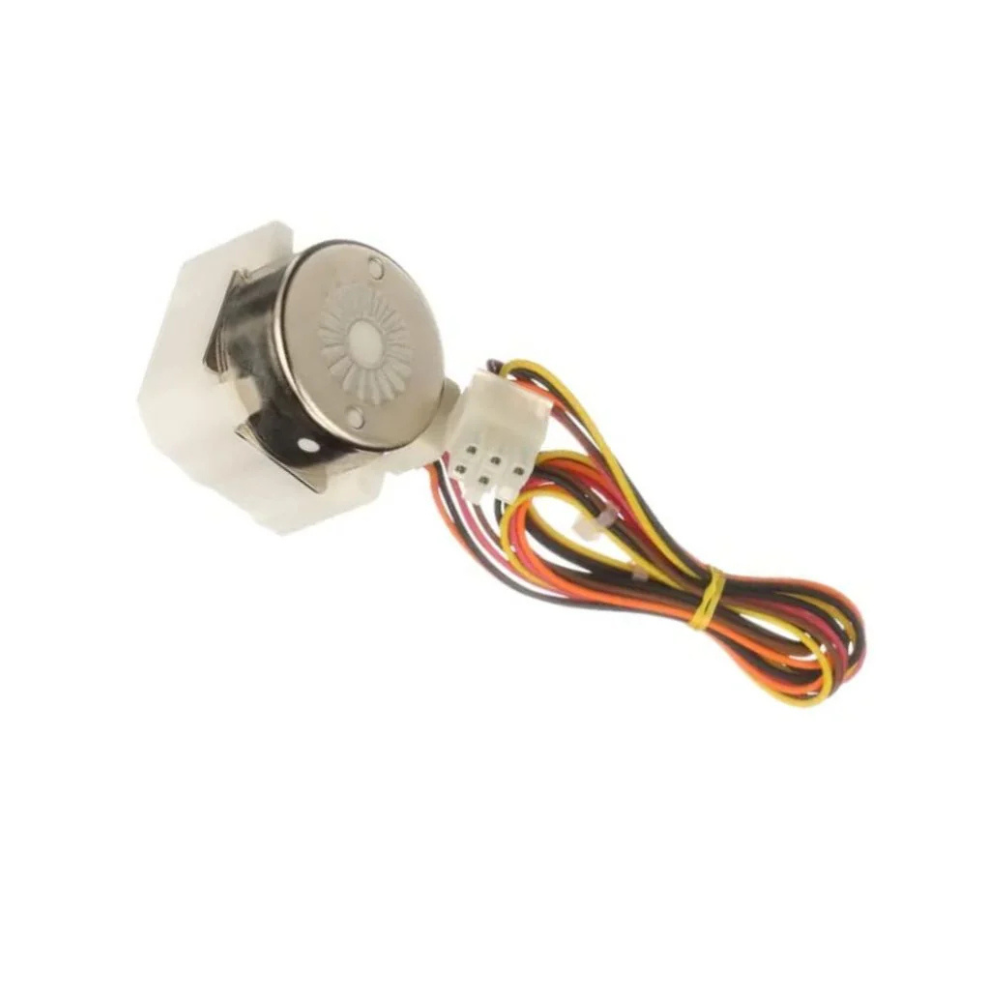

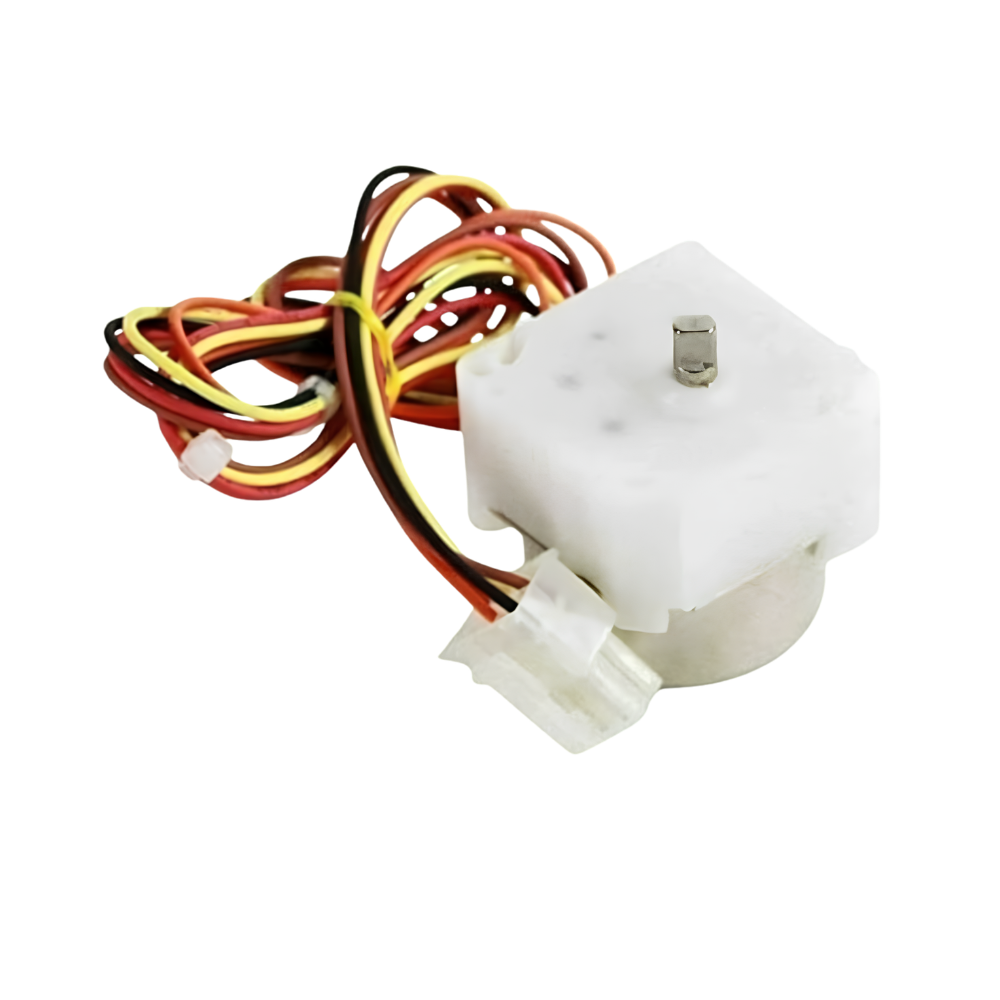

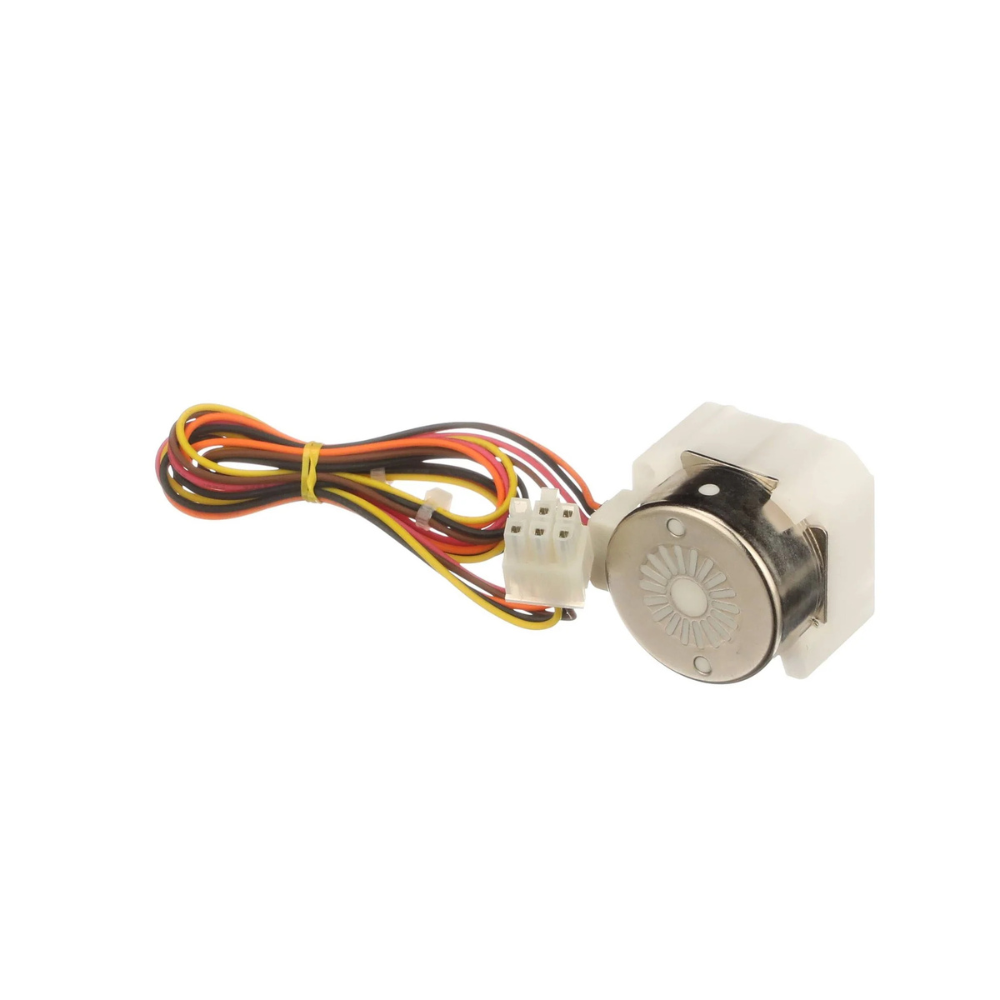

The Whirlpool WPW10184813 Refrigerator Ice Dispenser Door Motor is a Genuine Whirlpool OEM replacement part. It opens and closes the ice chute door during dispenser operation so ice can pass through the chute and the door can reseal afterward.
A failed motor can cause the dispenser door to remain stuck open or closed, prevent ice from dispensing correctly, or allow warm room air to enter the chute area.
Quick Answer
WPW10184813 is the Genuine Whirlpool OEM ice-dispenser door motor that replaces W10184813 and 2305262. Verify the complete refrigerator model number before purchase.
Common Problems This Part May Fix
- Ice dispenser door will not open
- Ice chute door will not close
- Ice maker makes ice but ice will not dispense
- Chute door sticks or operates intermittently
- Warm air enters around the dispenser chute
- Frost or moisture develops around the dispenser opening
Replaces and Cross-References
Cross-reference numbers are provided for identification. Always verify compatibility by complete refrigerator model number.
Compatibility
Used on select Whirlpool-built refrigerators sold under Whirlpool, KitchenAid, JennAir, Maytag, and Kenmore brand names. Compatible model examples include:
Important: This is only a partial model list. Confirm the complete model number from the refrigerator identification label before ordering.
Key Features
- Genuine Whirlpool OEM part
- Operates the ice dispenser chute door
- Replaces W10184813 and 2305262
- For select Whirlpool-built side-by-side and French-door refrigerators
- Helps restore proper dispenser-door opening and closing
Product Specifications
| Manufacturer Part Number | WPW10184813 |
| Brand | Whirlpool |
| Part Type | Refrigerator Ice Dispenser Door Motor |
| Condition | New |
| Quality | Genuine OEM |
| Application | Ice Dispenser Chute Door |
| Package Quantity | 1 Motor |
Installation Notes
- Disconnect refrigerator power before service.
- Remove the dispenser trim and front components according to the appliance service procedure.
- Photograph connector and mechanical linkage positions before disassembly.
- Inspect the chute door, hinge, spring, and linkage for binding or damage before replacing the motor.
- Transfer or reconnect the wiring and linkage exactly as originally installed.
- Reassemble all dispenser parts and verify the chute door opens and fully closes before returning the refrigerator to service.
Diagnostic tip: A dispenser that will not release ice can also be caused by an actuator, dispenser switch, control board, auger motor, frozen chute, or mechanical obstruction. Diagnose the dispenser system before replacing parts.
Frequently Asked Questions
Is WPW10184813 a Genuine Whirlpool OEM part?
Yes. WPW10184813 is a Genuine Whirlpool OEM ice-dispenser door motor.
Does it replace W10184813?
Yes. Whirlpool lists WPW10184813 as the replacement for W10184813 and 2305262.
What does this motor do?
It opens and closes the dispenser chute door so ice can pass through the chute and the opening can reseal after dispensing.
Will it fit every Whirlpool refrigerator?
No. Verify the complete refrigerator model number before ordering because dispenser designs vary by model and production revision.
Shop With Confidence
Genuine Whirlpool OEM replacement part. Verify your complete refrigerator model and original part number before ordering.
