XPARTCO 297259515 Refrigerator Start Relay & 297286803 Capacitor
The XPARTCO 297259515 kit bundles the compressor start relay and the matching run capacitor for Frigidaire, Kenmore, Crosley, Kelvinator, Gibson, Tappan, and Westinghouse refrigerators and freezers. These two components mount together at the compressor and work as a team every time the compressor cycles on: the start relay delivers the initial electrical boost needed to get the compressor's start winding moving, and the run capacitor helps the compressor motor start and run efficiently once it's going. Because they sit side by side on the same compressor terminals and tend to be diagnosed together, replacing both at once is the standard, most reliable fix rather than gambling on which single component has failed.
The classic failure symptom for this pair is unmistakable: a repeated clicking sound from the compressor area as the relay tries and fails to start the compressor, paired with a refrigerator and freezer that are both running too warm because the compressor never actually starts. Real-world repair accounts back this up — technicians troubleshooting a clicking-but-not-starting compressor commonly find both the start relay and run capacitor bad at the same time, which is exactly why they're sold together as a kit. It directly replaces, for the relay: 297259502, 297259510, PS11728176, 4378266, AP5986809, EAP11728176; and for the capacitor: AP5306470, 216985001, 297286804, 1465079, 1940424, 215329902, 218909915, 7216985001, 7218909915, AH3495561, EA3495561, PS3495561, and EAP3495561.
Quick Answer
The XPARTCO 297259515 Refrigerator Start Relay & Capacitor Kit fixes Frigidaire, Kenmore, Crosley, Kelvinator, Gibson, Tappan, and Westinghouse refrigerators and freezers that won't start cooling, run too warm in both compartments, or make a repeated clicking sound from the compressor area. Includes start relay (297259515) and run capacitor (297286803). Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling.
What's In The Kit
| Component | Part Number | Function |
|---|---|---|

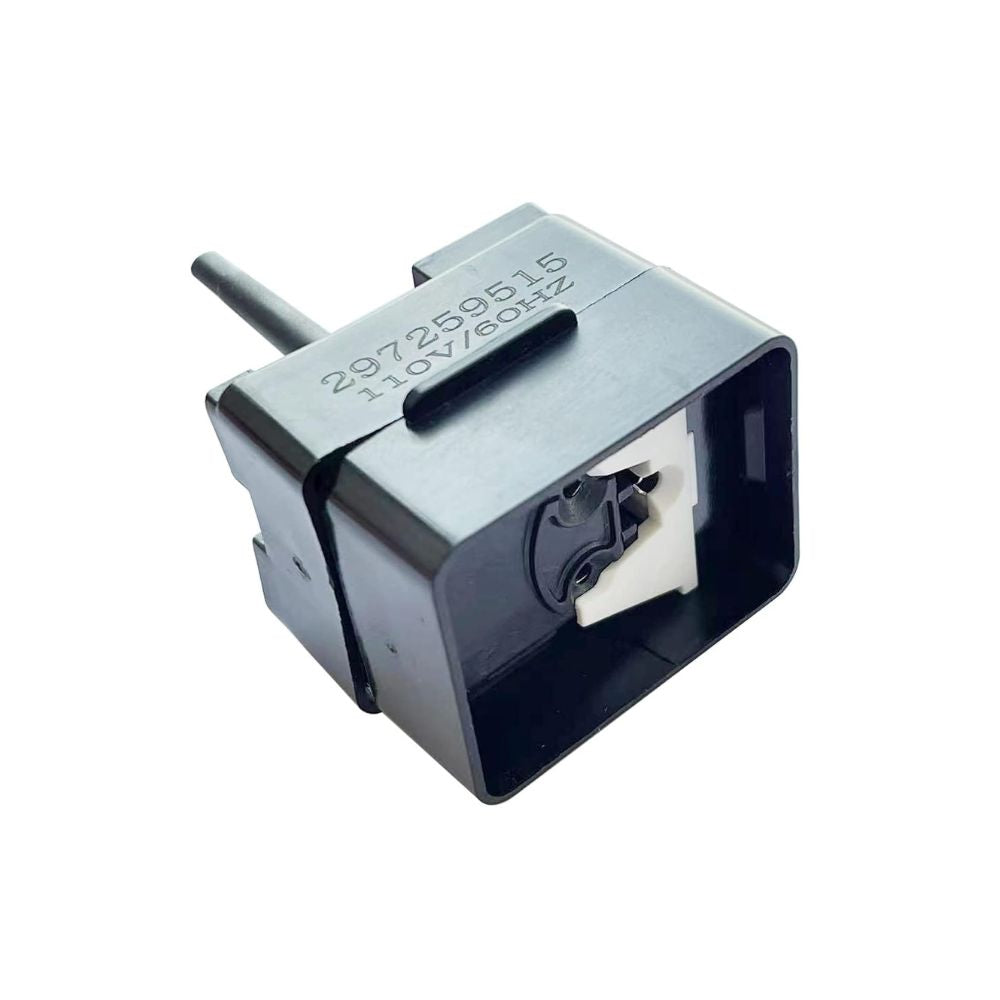

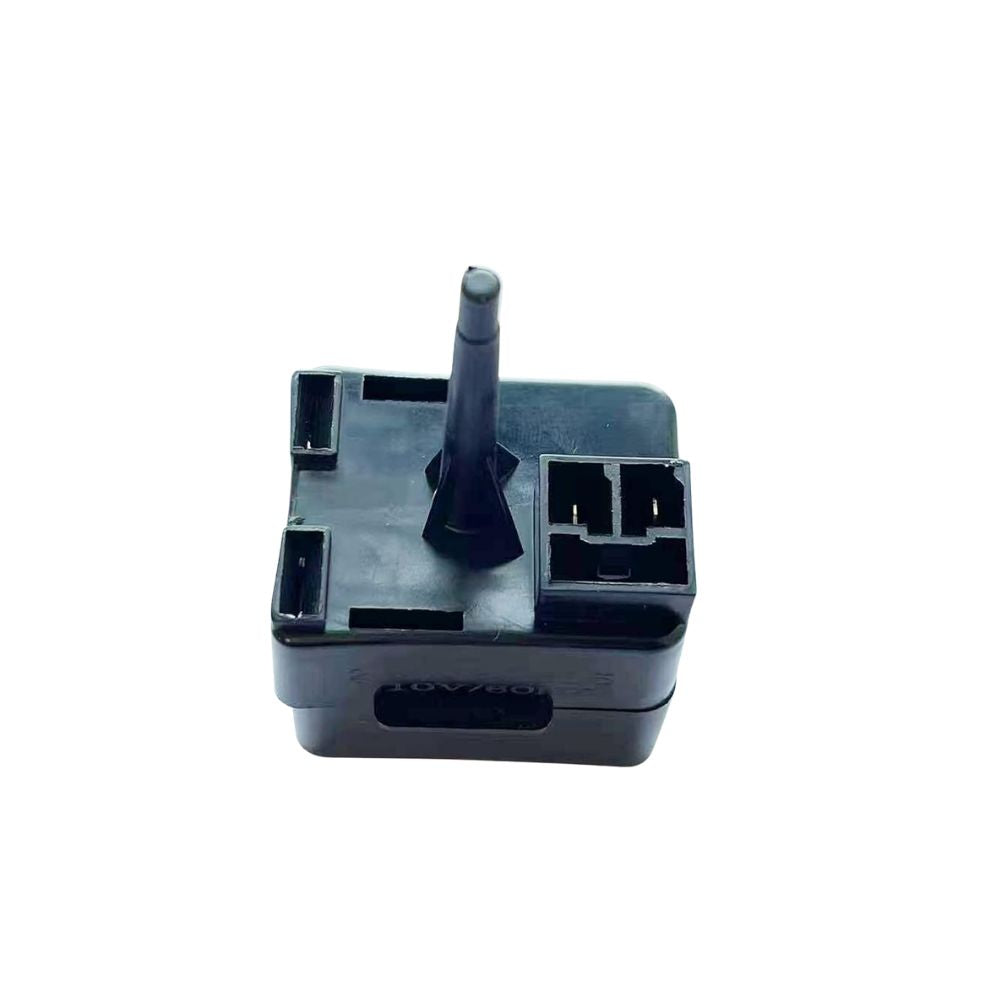

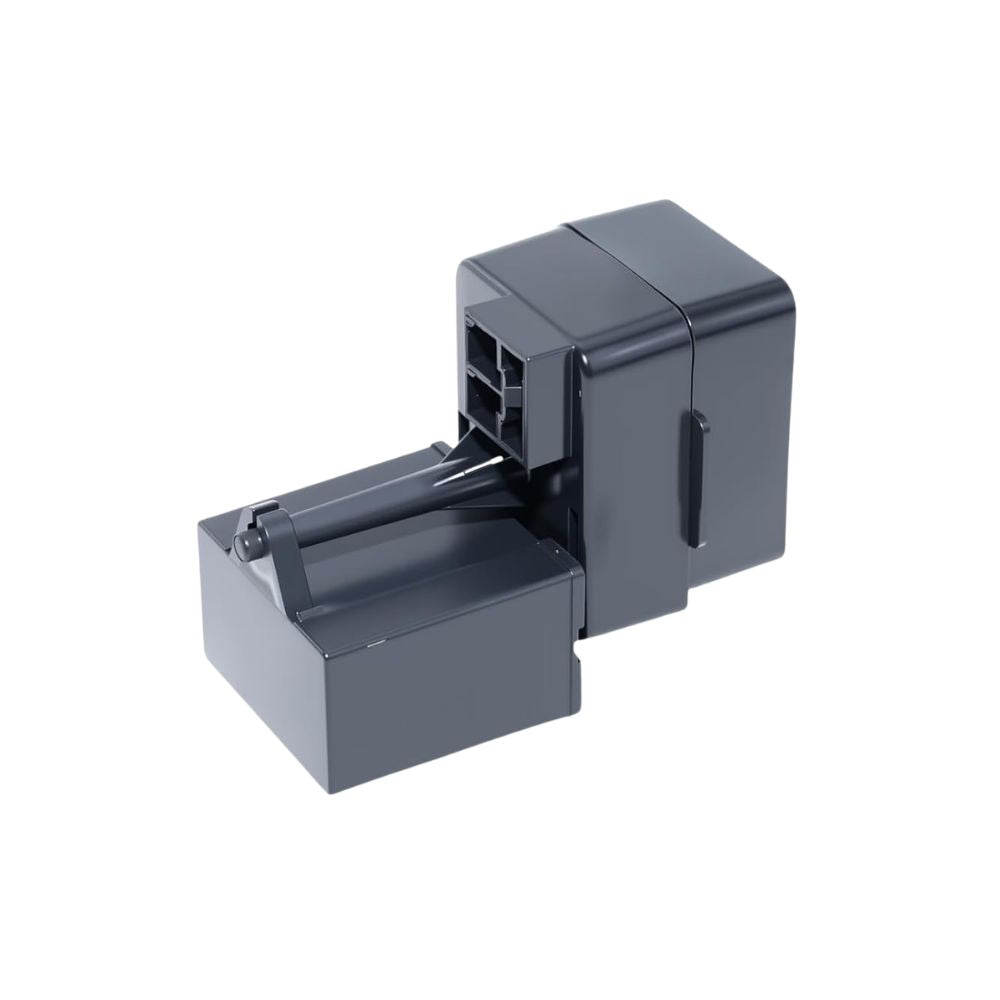

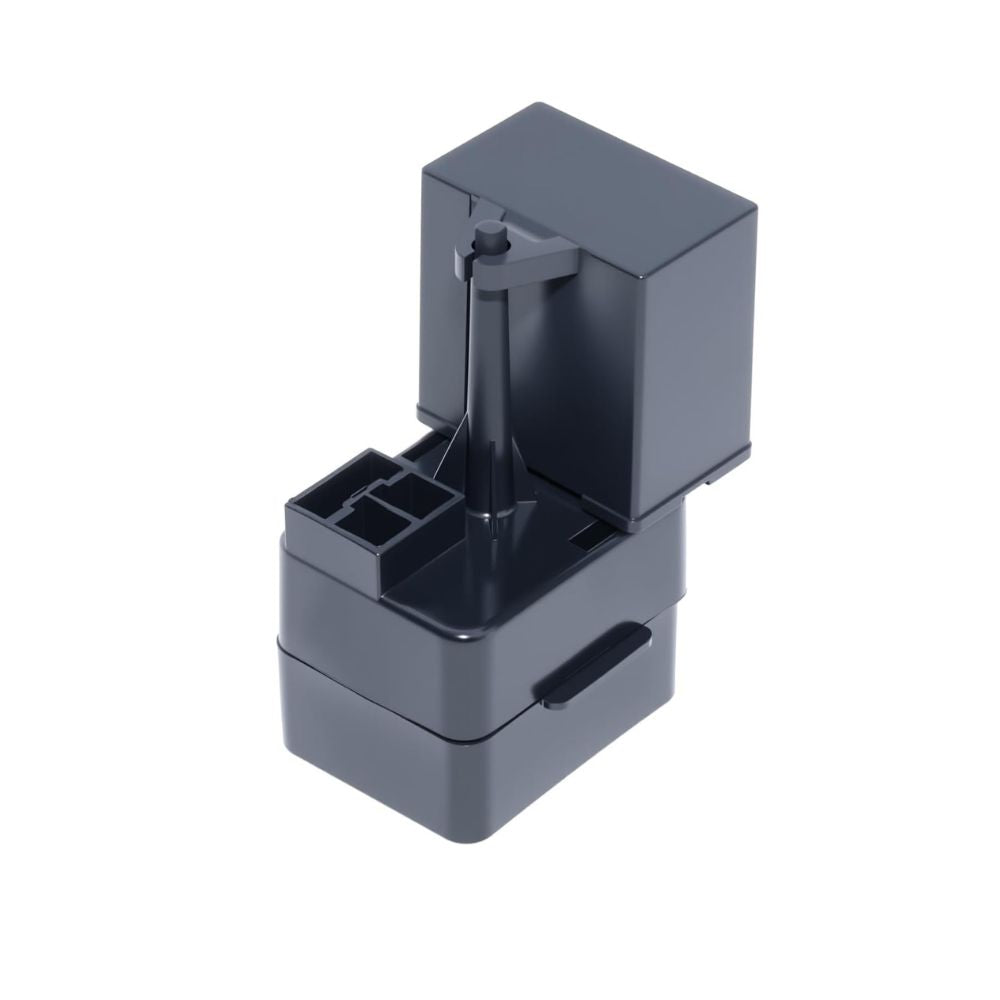

| Compressor Start Relay | 297259515 | Delivers the initial electrical boost that kickstarts the compressor's start winding, then switches out once the compressor is running. |

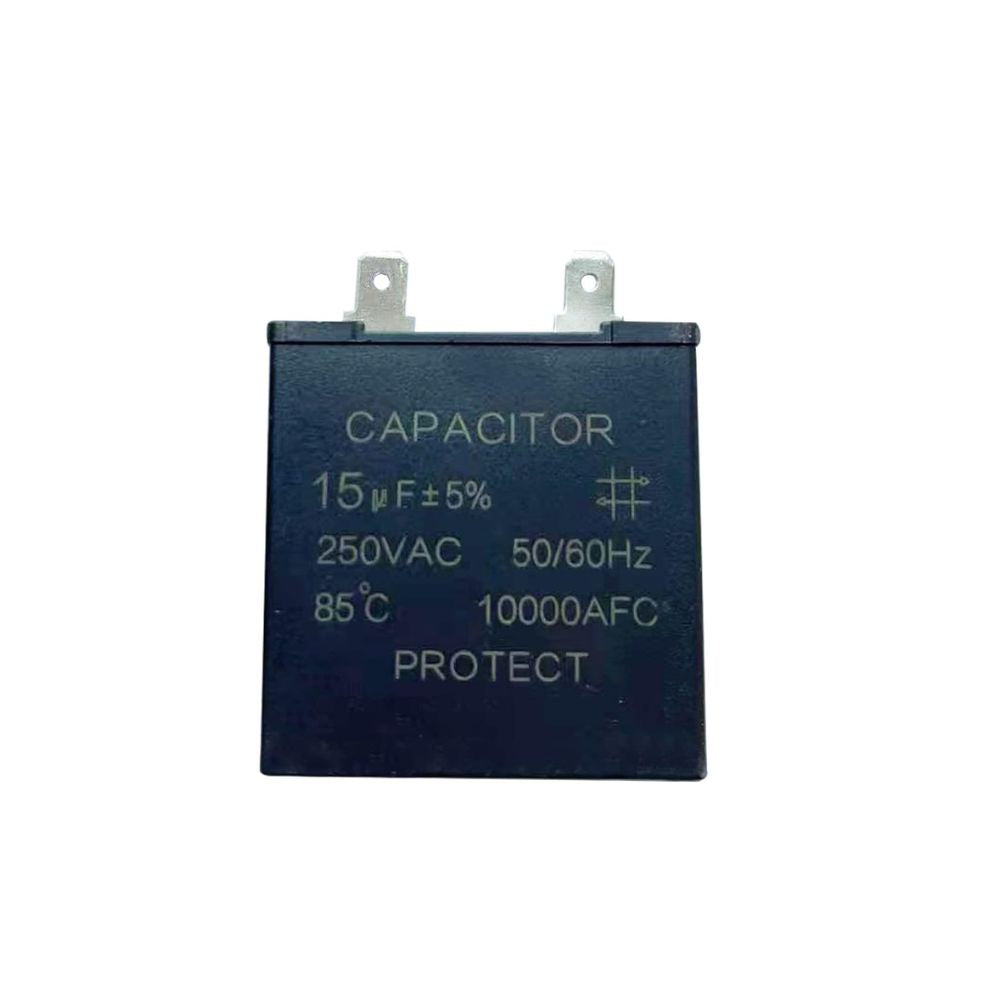

| Compressor Run Capacitor | 297286803 | 15 µF, helps the compressor motor start and run efficiently once the relay has engaged it. |
Common Problems This Kit Fixes
- Refrigerator won't start cooling at all
- Fresh food and freezer compartments both running too warm
- Repeated clicking sound coming from the compressor area
- Compressor hums but never actually starts running
- Refrigerator cycling on and off repeatedly without ever cooling properly
- Refrigerator that stops suddenly during normal operation
- No cooling despite the refrigerator otherwise appearing to have power
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This start relay and capacitor kit directly replaces the following OEM and cross-reference part numbers:
297259515, 297259502, 297259510, 4378266, AP5986809, EAP11728176, AFR15446, PD00029384, PS11728176, 297286803, AP5306470, 216985001, 297286804, 1465079, 1940424, 215329902, 218909915, 7216985001, 7218909915, 28PRC250150UFEX, AH3495561, EA3495561, EAP3495561, FIX3495561, AFR15479, PD00027525, PS3495561
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This kit is compatible with select Frigidaire refrigerators and freezers, and also fits select Kenmore, Crosley, Kelvinator, Gibson, Tappan, and Westinghouse refrigerators and freezers built on the same platform, including model numbers such as:
- CFUFH21TW, CFUMC17QW, CCFU17M1TW
- FFSS2315T, FFSS2315TS0, FFSS2615T, FFSS2615TD0, FFSS2625T, FGSS2335T
- LFSS2312T, LFSS2612T
- FFFC22M6QW, FFFC22M6QWG, FFFH17F2QW, FFFH20F2QW, FFFU17M1QW
- FFVU17F2SC, FFVU17F4QW, FFVU17F4QWE
- LFFH17F3QW, LFFH20F3QM, LFFH20F3QW
- TFFU20F2QW, TFFU21M1QW, WWFC22M1SW
Note: Always verify your full model number before ordering, and check the printed rating on your original run capacitor before installing the new one — see the capacitor voltage note in Product Specifications below. Contact our support team with your model number if you're unsure.
Key Features
- Complete 2-piece kit — compressor start relay and matching run capacitor in one purchase
- Addresses the two components most commonly found bad together on a clicking-but-not-starting compressor
- Resolves "won't start cooling," "runs too warm," and "clicking sound from the compressor" symptoms
- Run capacitor rated 15 µF
- Both components mount directly to the compressor terminals
- Direct drop-in replacement for both original components
- Replaces the full cross-reference set for 297259515 and 297286803 listed above
- Compatible with Frigidaire, Kenmore, Crosley, Kelvinator, Gibson, Tappan, and Westinghouse refrigerators and freezers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Kit Part Number | 297259515 |
| Kit Contents | 1x Compressor Start Relay (297259515), 1x Run Capacitor (297286803) |
| Condition | Aftermarket Replacement |
| Capacitor Rating | 15 µF |
| Mounting | Both components mount directly to the compressor terminals |
| Repair Skill Level | Experienced DIYer |
| Quantity | 1 kit (1 relay + 1 capacitor) |
| Compatible Brands | Frigidaire, Kenmore, Crosley, Kelvinator, Gibson, Tappan, Westinghouse |
Note on capacitor voltage: Manufacturer-facing sources disagree on this capacitor's voltage rating — some list it as 15µF/120V, others as 15µF/250V. Before installing, check the voltage printed directly on your original capacitor's body and confirm the new capacitor's printed rating matches or exceeds it. We're not publishing a single voltage figure here rather than risk stating the wrong one — contact our support team if you'd like help confirming the correct rating for your model.
Installation Notes
Frequently Asked Questions
Do I really need both the relay and the capacitor, or could just one be bad?
Either could technically be the sole cause, but in practice, technicians troubleshooting a compressor that clicks but won't start commonly find both the start relay and run capacitor have failed together — they sit on the same terminals under the same electrical stress every time the compressor cycles. Replacing both at once avoids having to open the compressor compartment a second time if the remaining original part fails shortly after.
I hear a repeated clicking sound from the back of my refrigerator, but it's not cooling. Is this the kit I need?
Yes, this is a textbook symptom for this exact pair of components. The clicking is the sound of the relay repeatedly attempting to engage the compressor's start winding and failing, often because the run capacitor isn't providing the boost the compressor needs to actually get moving. If both compartments are also warm, that confirms the compressor isn't starting at all.
Why doesn't this listing state a single voltage rating for the capacitor?
We found genuinely conflicting information across manufacturer-facing sources for this specific capacitor — some list it at 120V, others at 250V — and we'd rather flag that honestly than publish a number we can't fully verify. Before installing, check the rating printed directly on your original capacitor's body, and contact our support team if you'd like help confirming the correct value for your model.
My refrigerator stopped suddenly during normal operation. Could this kit be the cause?
Yes, a failing run capacitor or start relay can cause a refrigerator to stop suddenly, not just fail to start from cold. If your unit was running fine and then abruptly stopped cooling, checking these two components at the compressor is a reasonable next step alongside checking for tripped breakers or other obvious causes.
Is this an OEM or aftermarket kit?
This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM kit, but each component is manufactured to match the electrical specifications and terminal fit of the original 297259515 start relay and 297286803 run capacitor used in compatible Frigidaire, Kenmore, Crosley, Kelvinator, Gibson, Tappan, and Westinghouse refrigerators and freezers.
