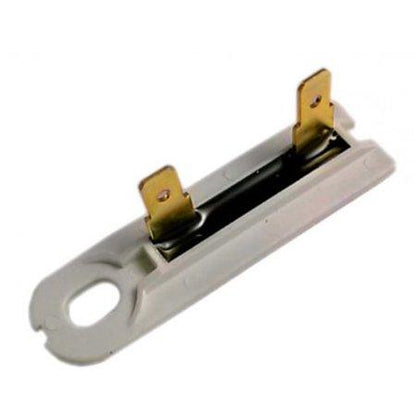

XPARTCO 3392519 Dyer Thermal Fuse Replaces WP3392519

XPARTCO 3392519 Dryer Thermal Fuse Replaces WP3392519

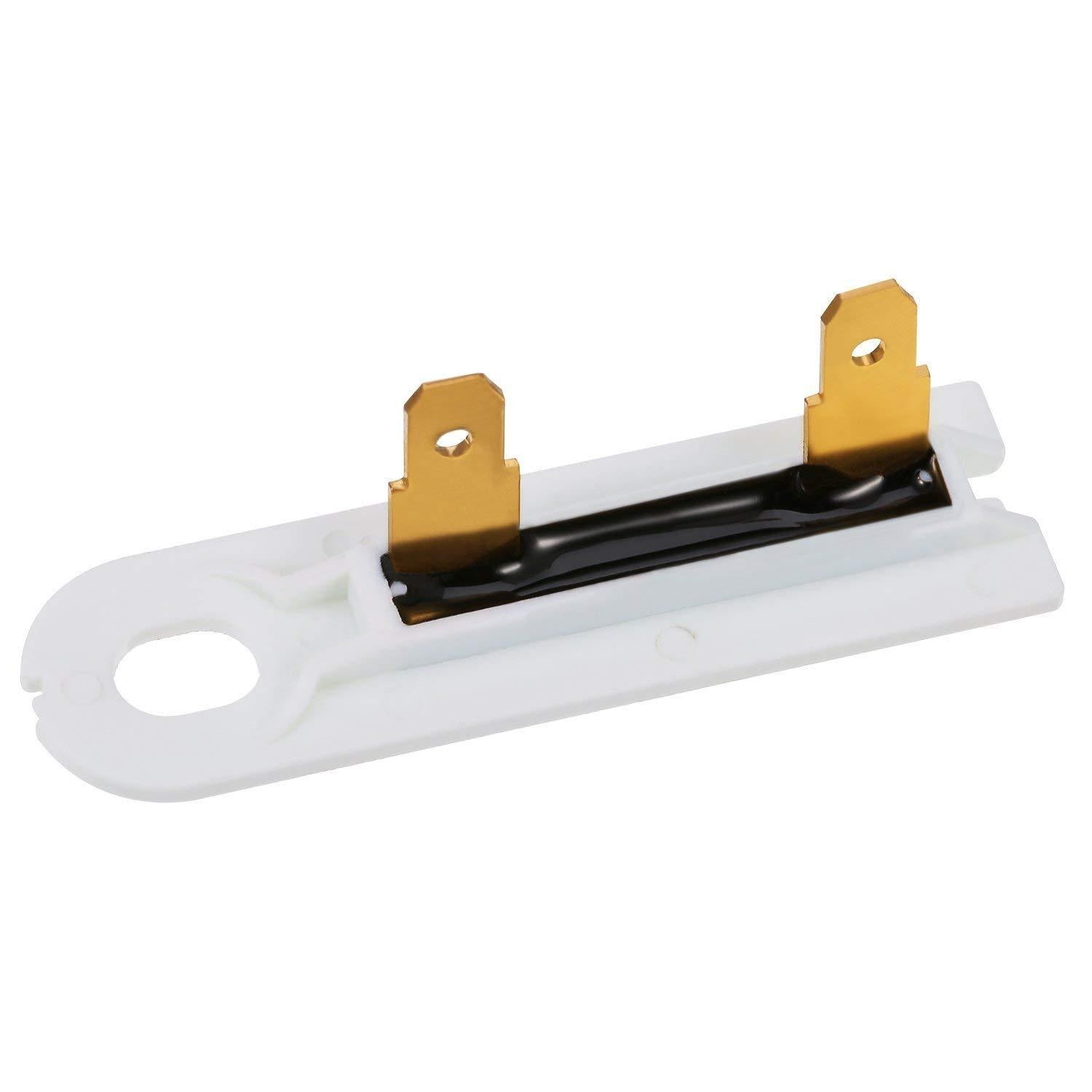

The XPARTCO 3392519 is an aftermarket replacement dryer thermal fuse compatible with select gas and electric dryers from Whirlpool, Kenmore, KitchenAid, Maytag, Roper, Estate, Inglis, Crosley, Amana, Admiral, and Magic Chef. The thermal fuse is a critical one-time-use safety device mounted on the exhaust duct or blower wheel housing that monitors the dryer's operating temperature.

When the dryer overheats — typically due to a clogged exhaust vent or restricted airflow — the thermal fuse permanently opens the circuit and cuts power to the heating system to prevent a fire. Once blown, the thermal fuse cannot be reset and must be replaced. This part measures 2 inches long x 1/2 inch wide, features two 3/16-inch terminals, and opens at approximately 196°F (91°C). Important: always check and clear the exhaust vent when replacing this fuse, as restricted airflow is the most common cause of thermal fuse failure.

Common Problems This Part Fixes

• Dryer won't start at all
• Dryer runs but produces no heat
• Dryer stops mid-cycle and won't restart
• Timer advances but drum does not heat
• Dryer shuts off too soon before clothes are dry
• No continuity detected across fuse terminals during testing

Replaces Part Numbers

This thermal fuse directly replaces the following OEM and cross-reference part numbers:

3392519, WP3392519, 3388651, WE4X857, G4AP0500, 6L4101, 6L4101091C, ET401, 3388651, 694511, 80005, AWP47582, PD00002311, EAP11741460, AP6008325, PS11741460

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Model Cross Reference

This part works with all models listed

Key Features

• One-time-use safety device — permanently opens at 196°F (91°C) to cut power and prevent dryer fires
• Mounts on the exhaust duct or blower wheel housing — easy access for DIY replacement
• Aftermarket replacement built to OEM-equivalent quality standards
• 2-terminal design — direct drop-in replacement, no modification required
• Broad compatibility across 11 major appliance brands
• DIY-friendly repair — installs with basic hand tools in under 30 minutes
• Budget-friendly safety fix — one of the most common and least expensive dryer repairs
