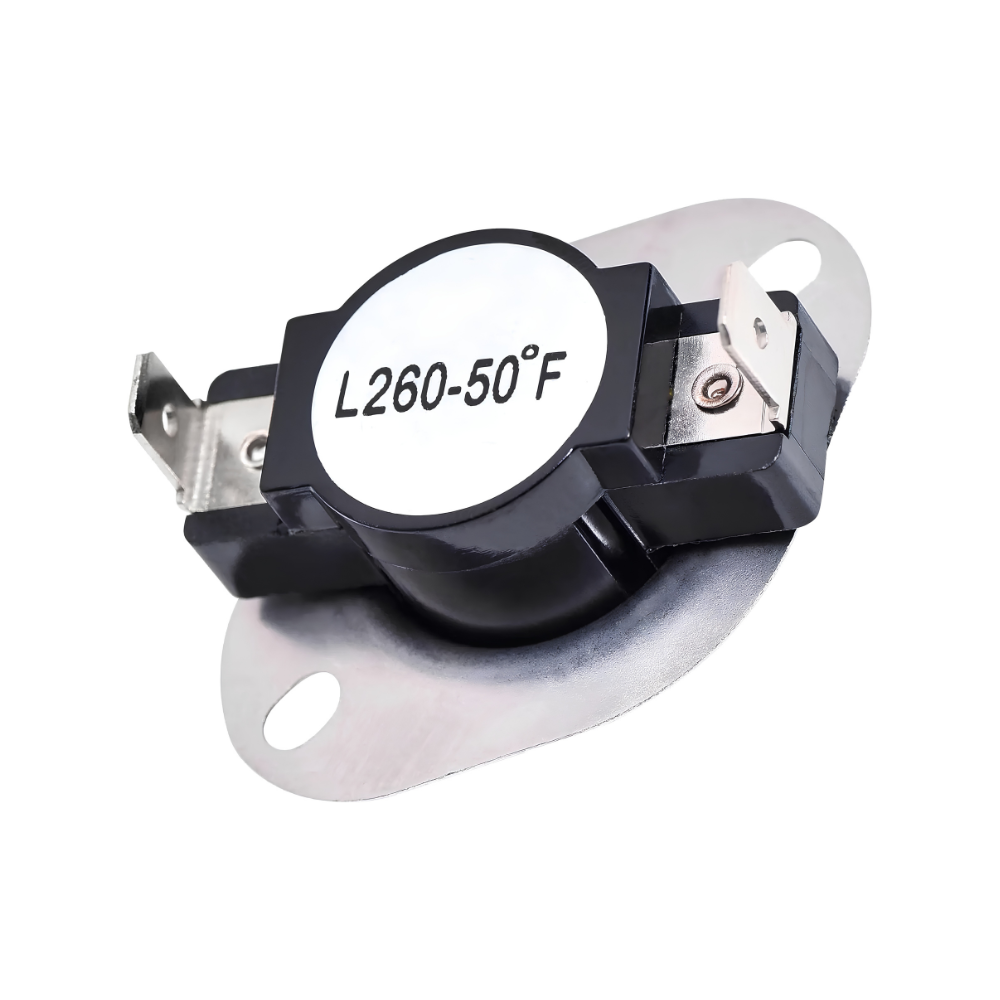

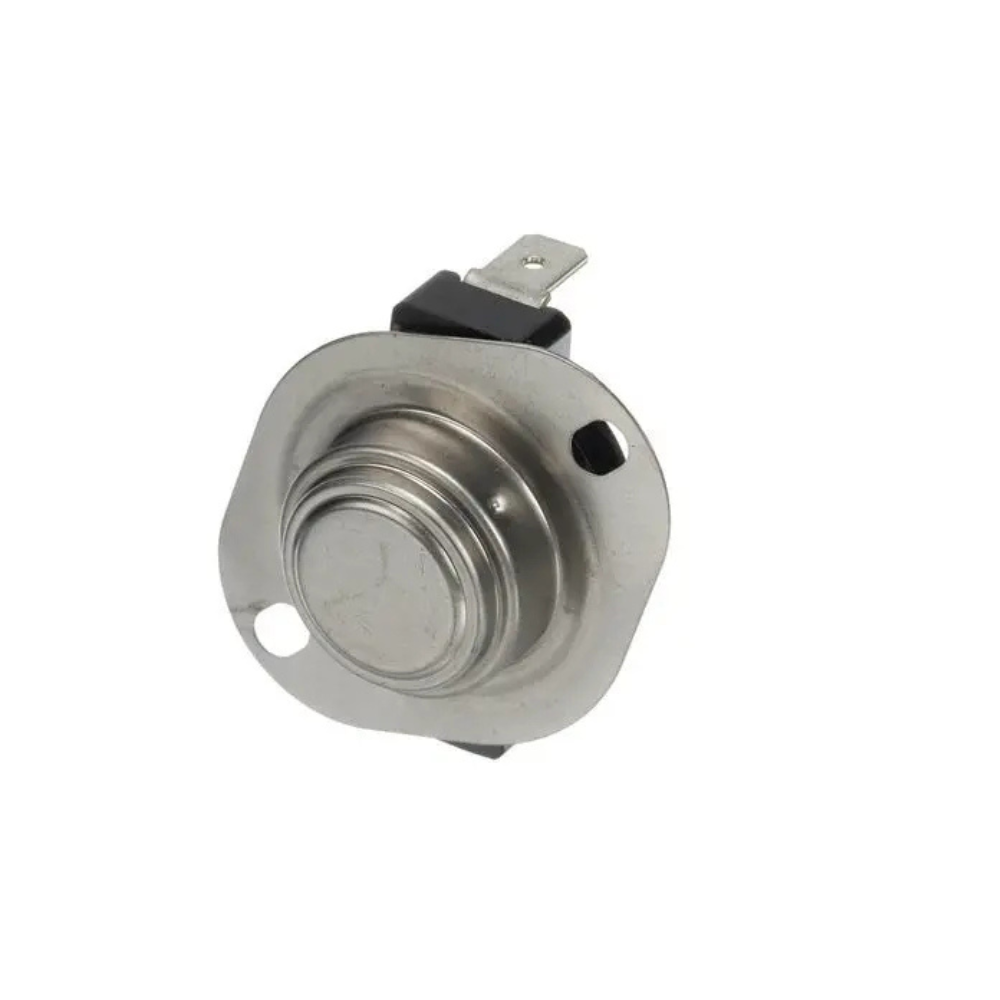

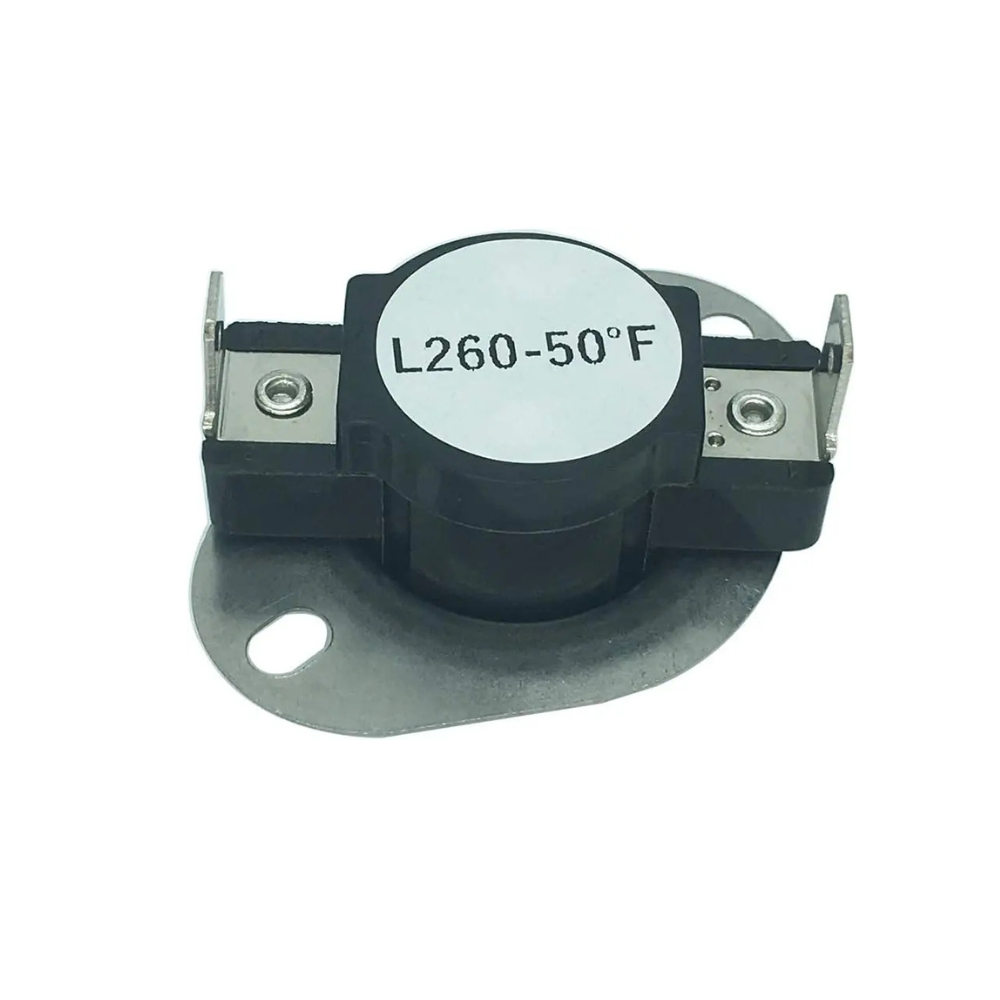

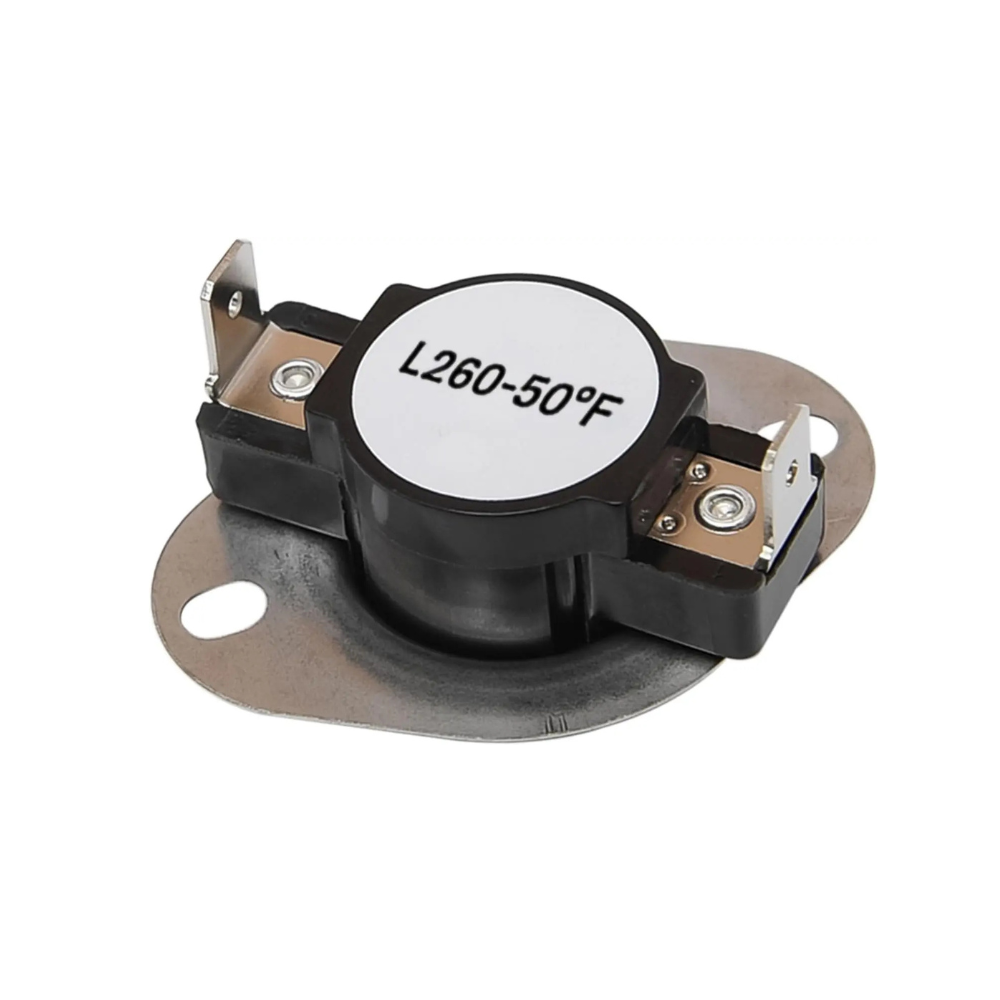

XPARTCO DC47-00018A Dryer Hi Limit Thermostat
The XPARTCO DC47-00018A is an aftermarket replacement cycling high-limit thermostat for Samsung and select Kenmore electric dryers. This is a genuine, automatically resetting thermostat — not a one-time fuse. It monitors temperature in the heating circuit and opens to cut power to the heating element at approximately 260°F, protecting the dryer from overheating. Once the temperature drops to around 210°F, it closes again on its own, letting the dryer resume heating without any part replacement needed.
This thermostat works alongside a downstream thermal fuse (such as our DC96-00887C listing) in the same overheat-protection circuit. If this thermostat is cycling excessively, tripping prematurely, or failing to regulate temperature correctly, it can put stress on that thermal fuse, sometimes causing it to blow as a last-resort safety measure. Symptoms of a failing high-limit thermostat include no heat or insufficient heat, drying that takes too long, or the dryer shutting off too soon before a load is fully dry. It directly replaces 35001092, WP35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, and AP6008682.
Quick Answer
The XPARTCO DC47-00018A Dryer Hi Limit Thermostat fixes Samsung and select Kenmore electric dryers with no heat or insufficient heat, drying that takes too long, or premature shutoff before a load is fully dry. Opens at approximately 260°F, resets automatically around 210°F. Replaces 35001092, WP35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, AP6008682. This is a resettable thermostat, not a fuse — it does not need replacement after each trip. It's a different component from our DC96-00887C thermal fuse listing, though the two are often checked together.
Common Problems This Part Fixes
- Dryer has no heat or insufficient heat
- Drying takes too long to complete a cycle
- Dryer shuts off too soon, before clothes are fully dry
- Timer will not advance through the cycle
- Dryer that stopped working suddenly after running unusually hot
- Dryer with a history of repeated downstream thermal fuse failures
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer high-limit thermostat directly replaces the following OEM and cross-reference part numbers:
DC47-00018A, AP4201898, T-O-D 60T11, ASM33627, 1122485, PD00002011, PS4205217. WP35001092, 35001092, PD00004704, EAP11741822, AP6008682, AWP47350, PS11741822
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This high-limit thermostat is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as:
- DV5471AEW/XAA
- DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2
- DV400EWHDWR/AA
- DVE50M7450W/A3
Note — resettable thermostat, not a fuse: This DC47-00018A is a true cycling thermostat that resets itself automatically. Our DC96-00887C listing, despite frequently being labeled a "thermostat" on other marketplaces, is actually a one-time thermal fuse mounted separately on the blower housing — it cannot reset and must be replaced once blown. The two are different device types serving the same circuit. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement cycling high-limit thermostat — automatically resetting, no replacement needed after each trip
- Opens at approximately 260°F, resets around 210°F
- Resolves "no heat," "insufficient heat," "takes too long to dry," and "shuts off too soon" symptoms
- Genuine thermostat, distinct from the downstream thermal fuse in the same circuit
- No special tools required for installation
- Replaces 35001092, WP35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, and AP6008682
- Compatible with Samsung and select Kenmore electric dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XPDC47-00018A |
| OEM Part Number | DC47-00018A |
| Part Type | Dryer Cycling High-Limit Thermostat |
| Condition | Aftermarket Replacement |
| Type | Automatically resetting — not a one-time fuse |
| Open Temperature | ~260°F |
| Reset Temperature | ~210°F |
| Related Component | DC96-00887C thermal fuse (blower housing, different device, sold separately) |
| Quantity | 1 high-limit thermostat |
| Compatible Brands | Samsung, select Kenmore |
Installation Notes
Frequently Asked Questions
Do I need to reset this thermostat after it trips, or replace it?
Neither, in normal operation — this is a genuine cycling thermostat that resets itself automatically once the dryer cools to around 210°F. You should only need to replace it if it has failed outright (stuck open, stuck closed, or no longer switching at the correct temperatures), not simply because it tripped once during normal operation.
My dryer shuts off before the load is fully dry. Is that this part?
It's a strong possibility. If this high-limit thermostat is tripping prematurely — opening at a lower temperature than it should — the dryer can cut heat and end the cycle early even though the load isn't actually dry yet. This is one of the more common symptoms this thermostat addresses.
My thermal fuse keeps blowing. Could this thermostat be the underlying cause?
Yes, this is worth investigating. This thermostat and the downstream thermal fuse (our DC96-00887C listing) protect the same circuit at different points. If this thermostat isn't regulating temperature correctly — cycling excessively or failing to catch a temperature spike — the thermal fuse can end up blowing repeatedly as the last line of defense. If you've replaced the fuse more than once, checking or replacing this thermostat at the same time is a reasonable next step.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications and opening/reset temperatures of the original DC47-00018A high-limit thermostat used in compatible Samsung and Kenmore electric dryers.
