XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set
The XPARTCO DC96-00887C / DC47-00018A is an aftermarket replacement 2-piece thermal protection set for Samsung and select Kenmore electric dryers. These two components sit in different locations along the same heating circuit and guard against overheating in different ways. The DC47-00018A is a true cycling high-limit thermostat — it opens at approximately 260°F to cut power to the heating element, then automatically closes again once the temperature drops to around 210°F, letting the dryer resume heating without any part replacement needed. The DC96-00887C, despite frequently being labeled a "thermostat" by third-party sellers, is actually a one-time thermal fuse mounted with its bracket on the blower housing — once it opens from excess heat, it stays open permanently and must be physically replaced.
Because these two parts monitor different points in the same circuit, they tend to be replaced together when a dryer has been running hot: if the high-limit thermostat has been cycling excessively or failed to catch a temperature spike, the downstream thermal fuse can end up blowing as the last line of defense. Symptoms of failure in this circuit include no heat or insufficient heat, drying that takes too long, the dryer shutting off too soon, or the timer failing to advance. It directly replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, AP6008689 (DC96-00887C); and 35001092, 1122485, AP4201898, PS4205217, EAP2430930, PS2430930, AP6008682, WP35001092 (DC47-00018A).
Quick Answer
The XPARTCO DC96-00887C - DC47-00018A Dryer Thermostat Set fixes Samsung and select Kenmore electric dryers with no heat or insufficient heat, drying that takes too long, premature shutoff, or a timer that won't advance. Set includes the DC47-00018A cycling high-limit thermostat (260°F open / 210°F reset) and the DC96-00887C thermal fuse with bracket. Replaces the full cross-reference sets listed below for both parts. Despite common marketplace labeling, the DC96-00887C is a one-time thermal fuse, not a resettable thermostat — it must be replaced once it blows, while the DC47-00018A resets itself automatically.

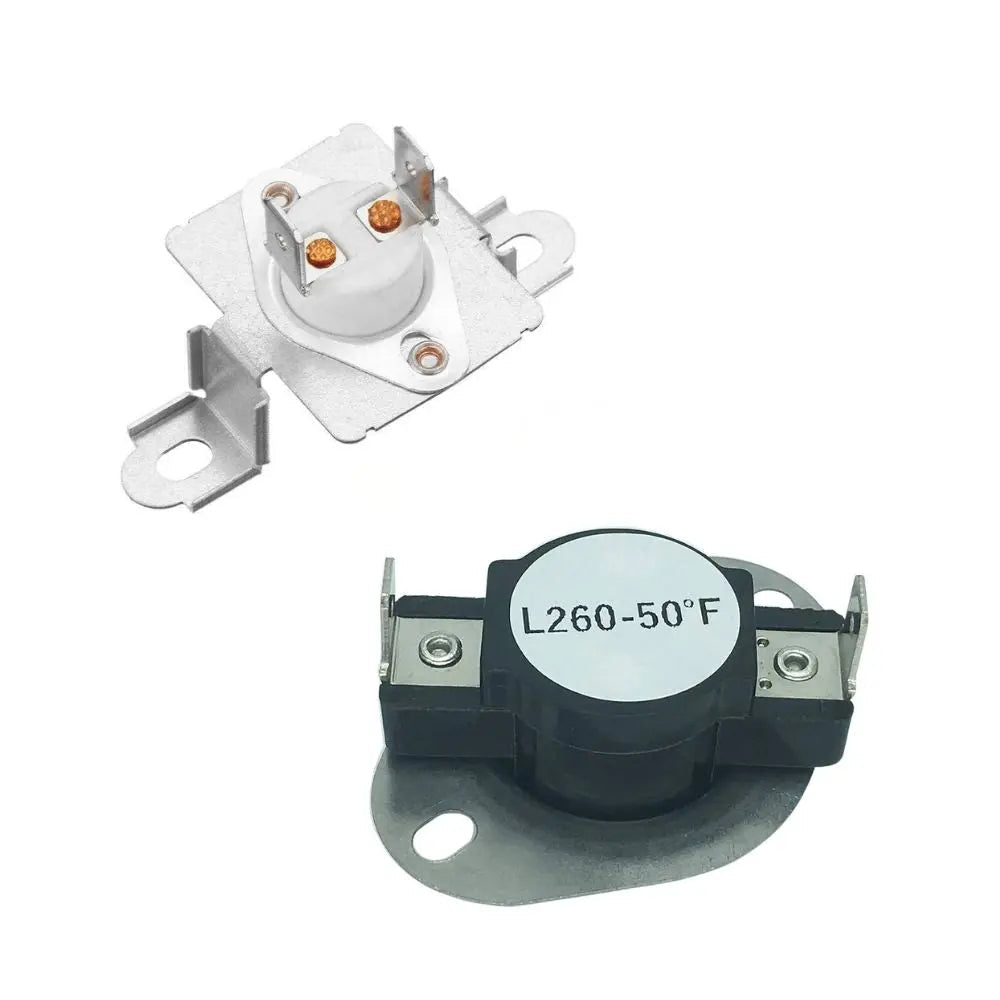

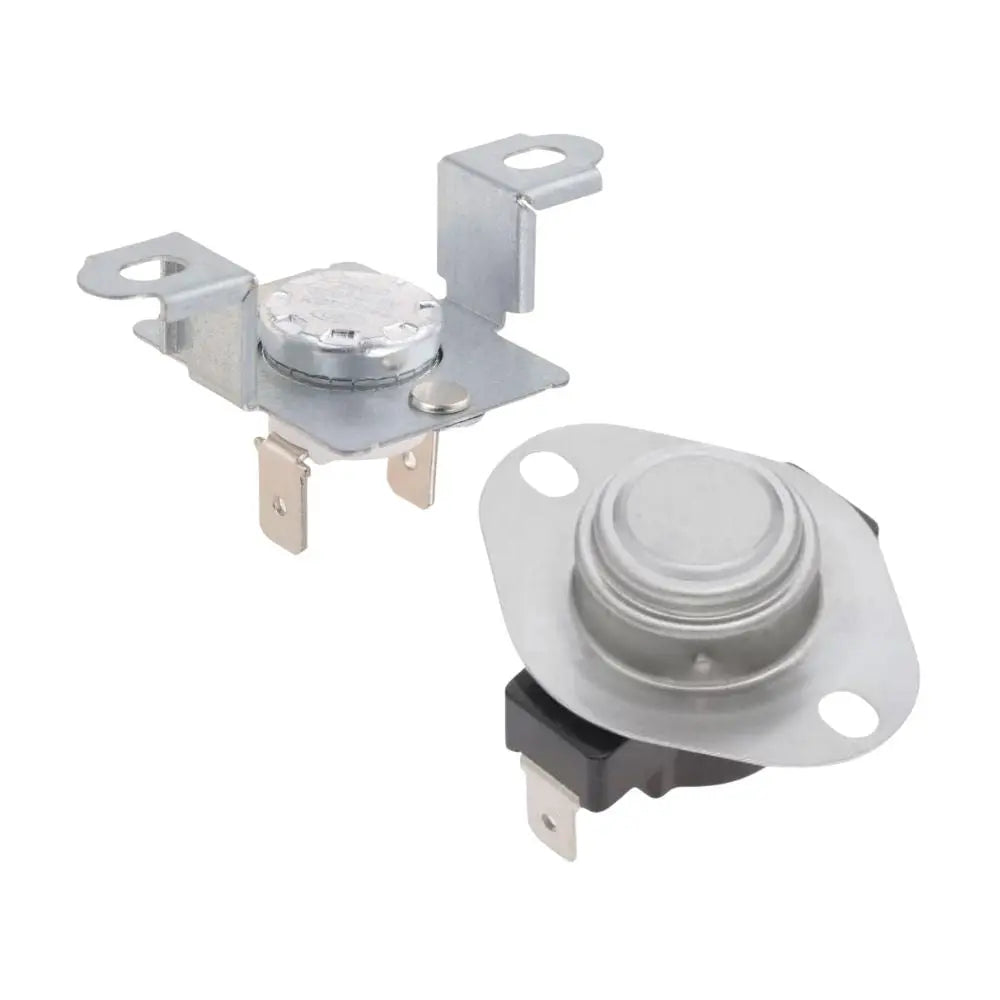

What's In This Set
| Component | Type | Function |
|---|---|---|

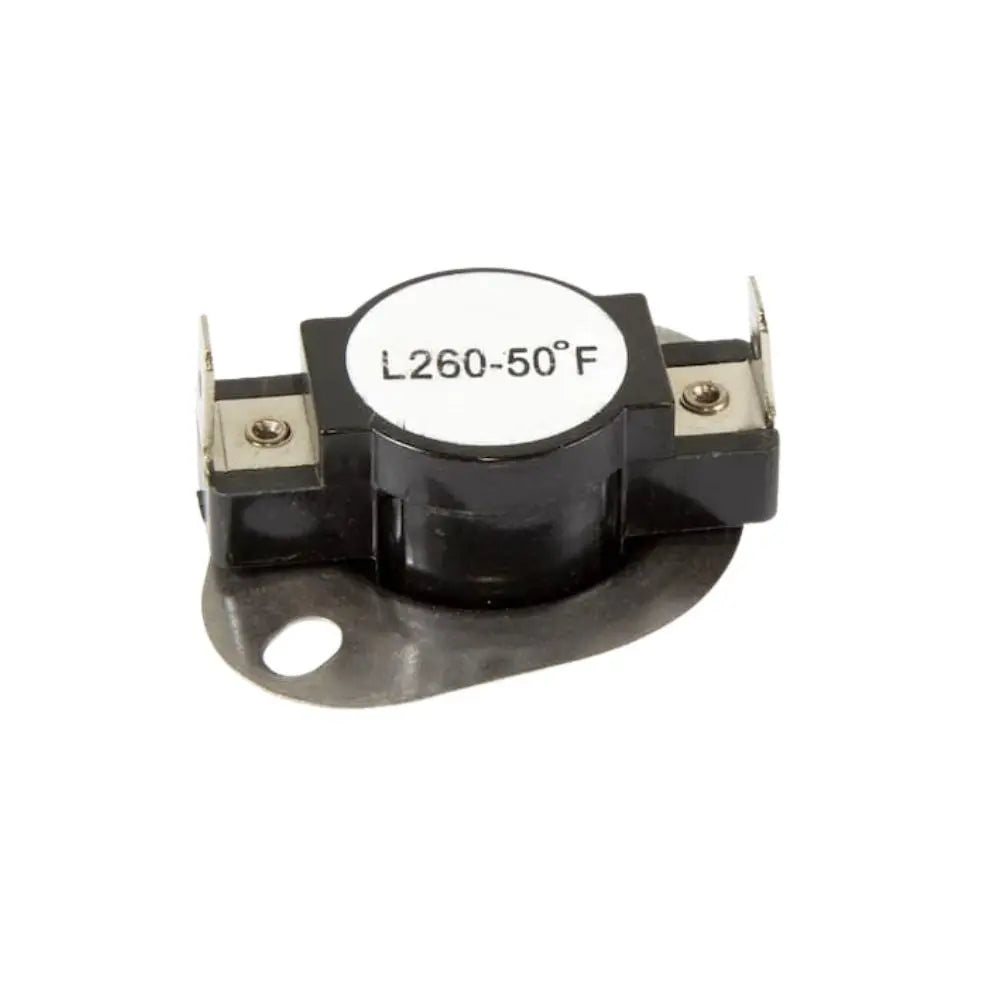

| DC47-00018A | Cycling High-Limit Thermostat | Opens at ~260°F to cut heat, automatically resets and closes again around 210°F. No replacement needed after each trip. |

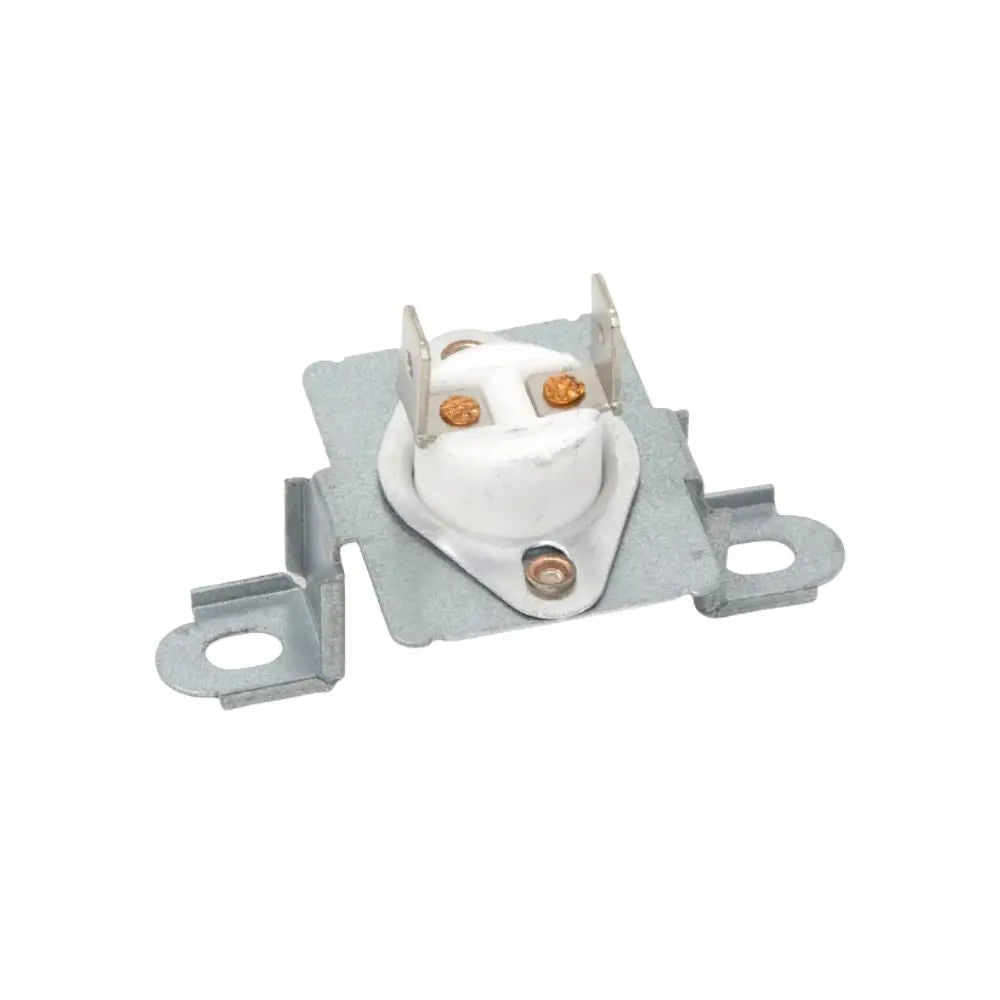

| DC96-00887C | Thermal Fuse (with bracket) | Mounted on the blower housing. Permanently opens if temperature exceeds safe limits. Cannot reset — must be replaced once blown. |
Common Problems This Set Fixes
- Dryer has no heat or insufficient heat
- Drying takes too long to complete a cycle
- Dryer shuts off too soon, before clothes are fully dry
- Timer will not advance through the cycle
- Dryer that stopped working suddenly after running unusually hot
- Dryer with a history of repeated thermal fuse failures
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermostat/thermal fuse set directly replaces the following OEM and cross-reference part numbers:
DC96-00887C, DC96-00887A, AP5966894, PS4276292, WP35001193, 35001193, AP6008689, PS11741829, DC47-00018A, AP4201898, PS4205217, 35001092, WP35001092 AP6008682, PS11741822, EXPDC47-00018A, L260-50F
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This set is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as:
- DV5471AEW/XAA
- DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2
- DV400EWHDWR/AA
- DVE50M7450W/A3
Note: Always verify your full model number before ordering, since Samsung uses several different thermal protection components across its dryer lineup. Contact our support team with your model number if you're unsure.
Key Features
- 2-piece set covering both the cycling high-limit thermostat and the blower housing thermal fuse
- DC47-00018A thermostat opens at approximately 260°F and resets automatically around 210°F
- DC96-00887C thermal fuse ships with its mounting bracket included
- Resolves "no heat," "insufficient heat," "takes too long to dry," and "shuts off too soon" symptoms
- Addresses two failure points in the same overheat-protection circuit at once
- No special tools required for installation
- Replaces the full cross-reference sets for both DC96-00887C and DC47-00018A listed above
- Compatible with Samsung and select Kenmore electric dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Set Contents | 1x DC47-00018A high-limit thermostat, 1x DC96-00887C thermal fuse with bracket |
| Condition | Aftermarket Replacement |
| Application | Samsung Electric Dryers |
| DC47-00018A Type | Automatically resetting, cycling high-limit thermostat |
| DC47-00018A Open Temperature | ~260°F |
| DC47-00018A Reset Temperature | ~210°F |
| DC96-00887C Type | One-time thermal fuse — non-resettable |
| DC96-00887C Location | Blower housing |
| Repair Difficulty | Easy to Moderate — no special tools required |
| Compatible Brands | Samsung, select Kenmore |
Installation Notes
Frequently Asked Questions
Is DC96-00887C really a thermostat, or something else? Different sellers call it different things.
This is a genuinely common point of confusion in the marketplace, and it's worth clearing up: DC96-00887C is actually a one-time thermal fuse mounted with its bracket on the blower housing, even though many third-party listings label it a "thermostat." The distinction matters for how you diagnose and handle it — once this fuse blows from excess heat, it stays open permanently and must be physically replaced, unlike a true thermostat (like the DC47-00018A in this same set) which resets itself automatically once things cool down.
Why replace both parts together instead of just the one that failed?
These two components sit at different points in the same overheat-protection circuit, and a problem with one often puts stress on the other. If the high-limit thermostat has been cycling excessively or didn't catch a temperature spike in time, the downstream thermal fuse can end up blowing as the last line of defense. Replacing both together addresses the full circuit rather than risking a second failure and a second repair shortly after.
My dryer shuts off before the load is fully dry. Is that this set?
It's a strong possibility. If the high-limit thermostat is tripping prematurely — opening at a lower temperature than it should, or failing to reset properly — the dryer can cut heat and end the cycle early even though the load isn't actually dry yet. This is one of the more common symptoms this thermostat set addresses.
Is this an OEM or aftermarket set?
This is an aftermarket replacement set built to OEM-equivalent quality standards. It is not a genuine Samsung OEM set, but each component is manufactured to match the electrical specifications, opening/reset temperatures, and mounting configuration of the original DC96-00887C thermal fuse and DC47-00018A high-limit thermostat used in compatible Samsung and Kenmore electric dryers.
