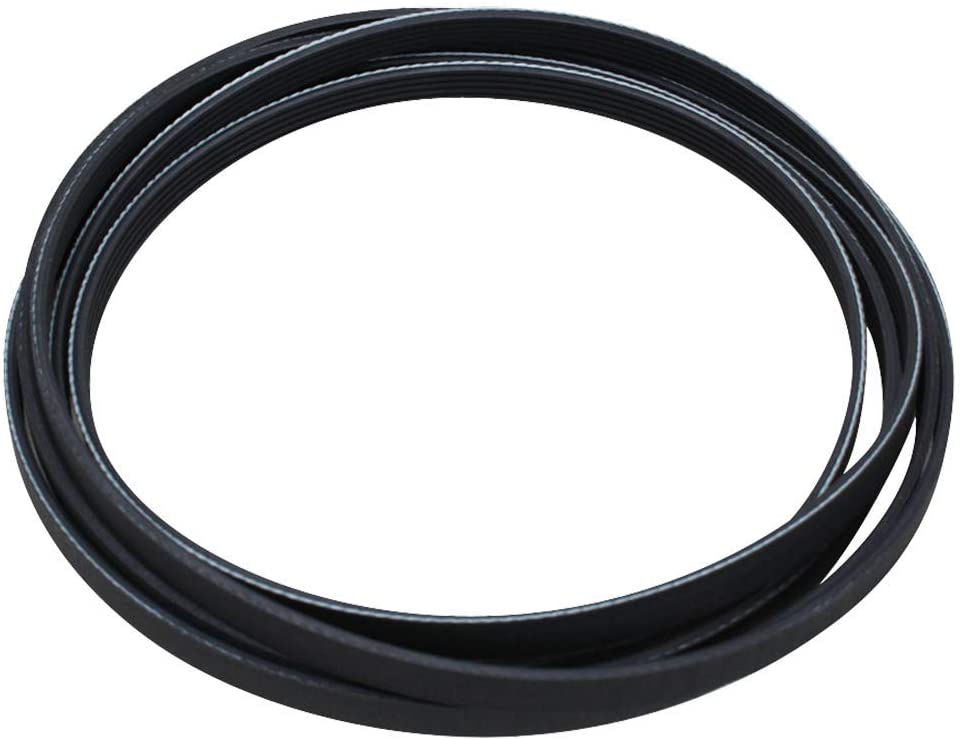

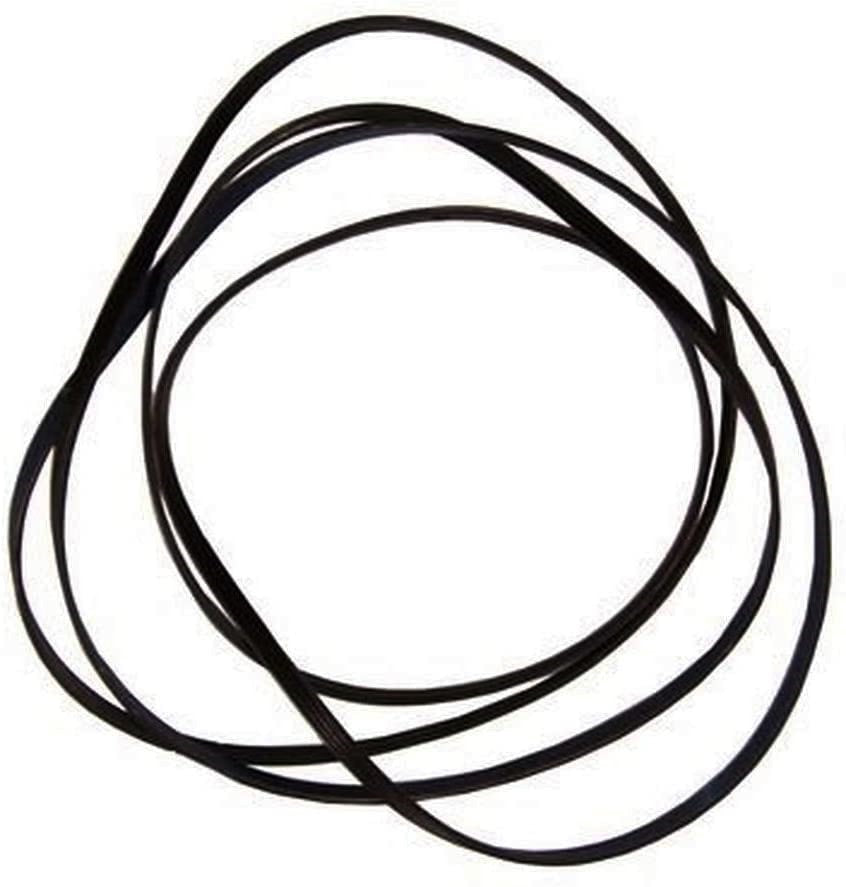

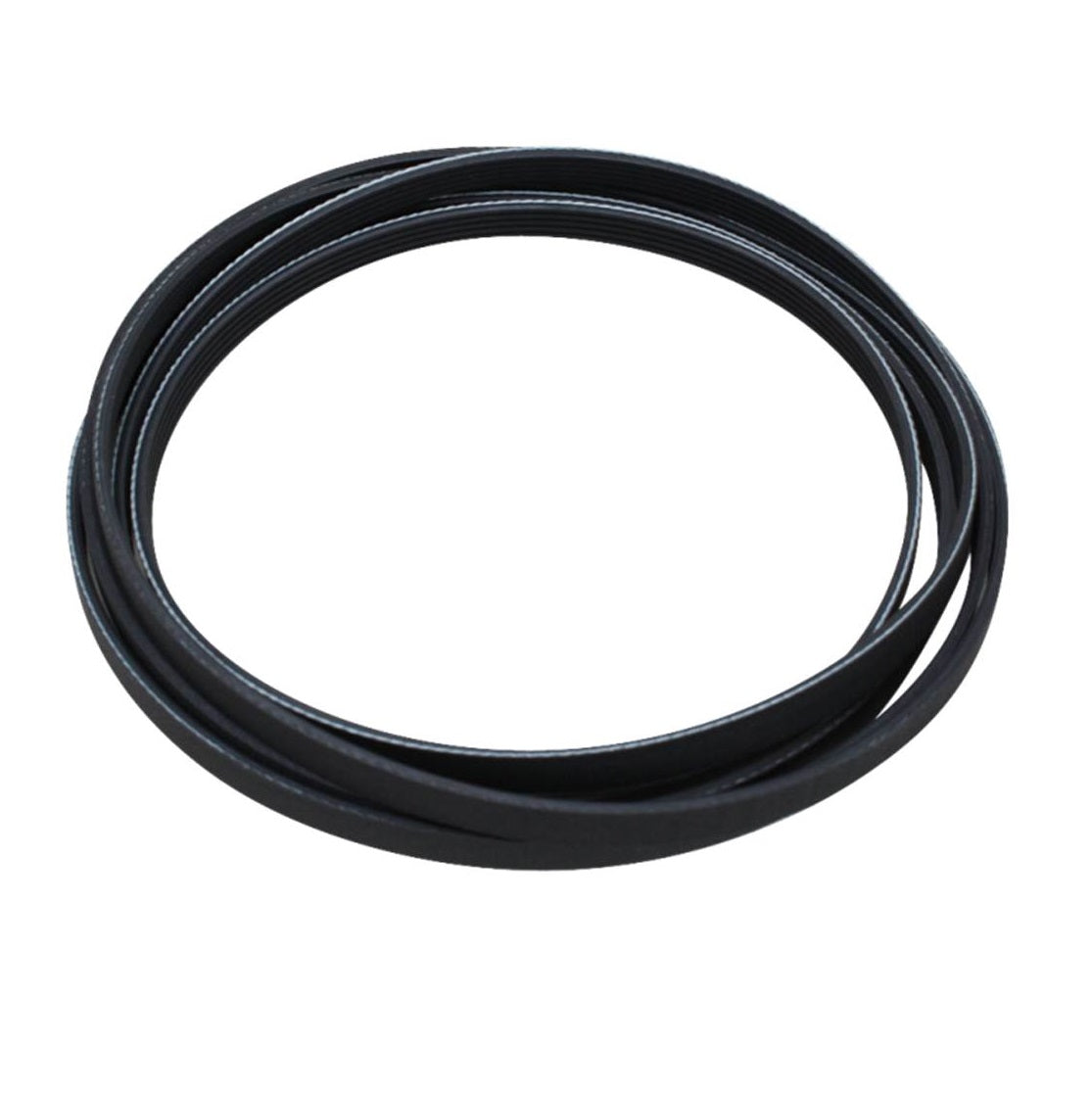

XPARTCO W10198086 Dryer Drum Belt Replaces WPW10198086
5-rib drum drive belt for select Whirlpool-built and Maytag dryers.
Product Overview
The XPARTCO W10198086 Dryer Drum Belt wraps around the dryer drum, idler pulley, and motor pulley to transfer motor power and rotate the drum during the drying cycle.
This is a quality XPARTCO aftermarket replacement part for compatible dryers that use W10198086 / WPW10198086.
Quick Answer
W10198086 / WPW10198086 is a 5-rib dryer drum drive belt measuring approximately 92-1/2 inches long × 5/16 inch wide. It replaces several later and alternate Whirlpool belt numbers. Verify the complete dryer model number before ordering.
Common Problems This Part May Fix
- Dryer motor runs but the drum does not turn
- Drum turns intermittently or slips under load
- Squealing, slapping, or thumping noise from the cabinet
- Original belt is cracked, stretched, frayed, or broken
- Clothes do not tumble or dry evenly
- Burning-rubber smell caused by a slipping or damaged belt
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by Whirlpool Corporation.
Compatibility
Designed for select Whirlpool-built dryers, including many Maytag models. Compatible examples include:
Important: This is only a partial model list. Confirm the full model number from the dryer identification label before purchase because similar-looking belts can differ in length, width, rib count, and routing.
Key Features
- Quality XPARTCO aftermarket replacement
- Approximately 92-1/2 inches long
- Approximately 5/16 inch wide
- 5-rib drive-belt design
- Transfers motor power to the dryer drum
- Replaces W10198086 and WPW10198086 applications
- For select Whirlpool-built and Maytag dryers
Product Specifications
| XPARTCO Part Number | W10198086 |
| Replaces | WPW10198086 |
| Part Type | Dryer Drum Drive Belt |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Approx. Length | 92-1/2 in. |
| Approx. Width | 5/16 in. |
| Rib Design | 5 Rib / 4 Groove |
| Primary Function | Rotates dryer drum |
| Package Quantity | 1 Drum Belt |
Installation Notes
- Disconnect the dryer from electrical power before service. For gas dryers, shut off the gas supply when required by the service procedure.
- Remove the required cabinet panels to access the drum and drive system.
- Photograph the original belt routing around the drum, idler pulley, and motor pulley.
- Inspect the idler pulley, motor pulley, and drum support rollers for binding, wear, or damage.
- Position the new belt around the drum in the original belt path, with the ribbed side oriented as specified by the dryer design.
- Route the belt around the idler and motor pulley exactly as originally installed.
- Rotate the drum by hand to verify smooth travel and proper belt tracking.
- Reassemble all panels before restoring power.
Diagnostic tip: A belt that repeatedly slips or breaks may indicate a seized idler pulley, worn drum roller, damaged motor pulley, overloaded drum, or another mechanical problem. Correct the underlying cause before operating the dryer.
Frequently Asked Questions
Is this a Genuine Whirlpool OEM belt?
No. This is a quality XPARTCO aftermarket replacement for compatible WPW10198086 applications.
Does this replace WPW10198086?
Yes. The listing is designed as an aftermarket replacement for the WPW10198086 / W10198086 belt family.
What size is this belt?
The published belt size is approximately 92-1/2 inches long by 5/16 inch wide with a 5-rib / 4-groove design.
Should I inspect the idler pulley when replacing the belt?
Yes. A seized or worn idler pulley can damage a new belt or prevent correct belt tension.
Will this fit every Whirlpool or Maytag dryer?
No. Verify the complete appliance model number because different dryer platforms use different belts.
Shop With Confidence
Verify the complete dryer model number and original belt number before ordering. Our compatibility team can help determine whether XPARTCO W10198086 is correct for your appliance.
