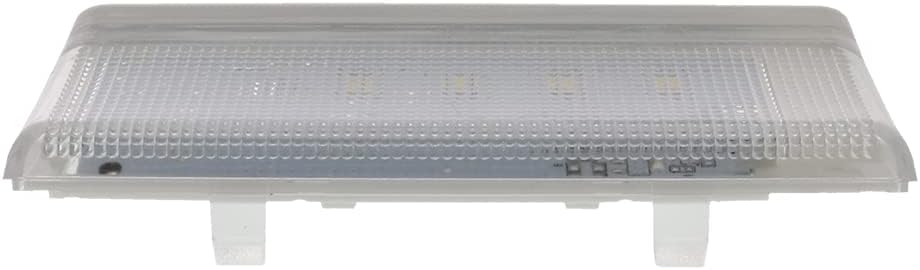

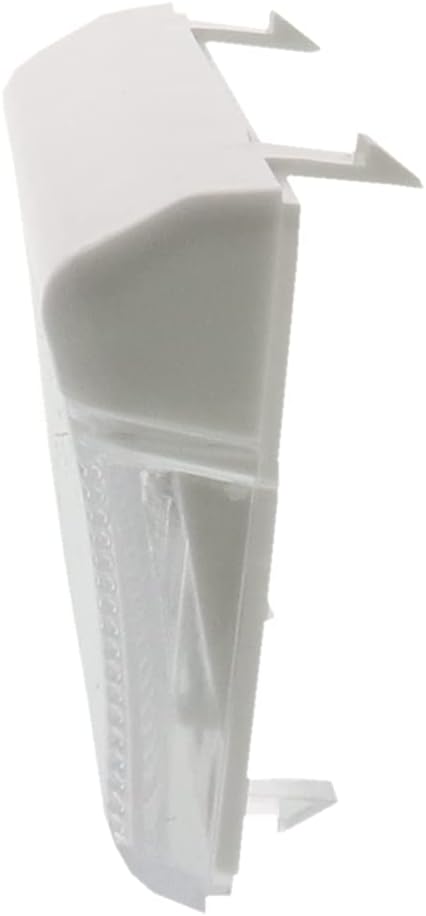

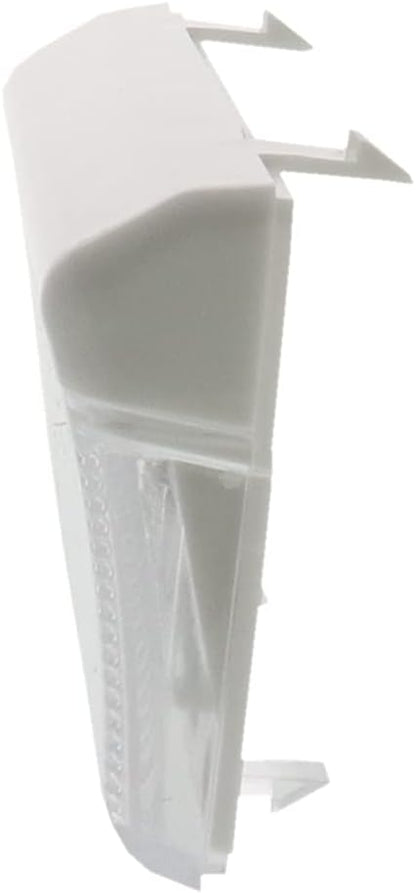

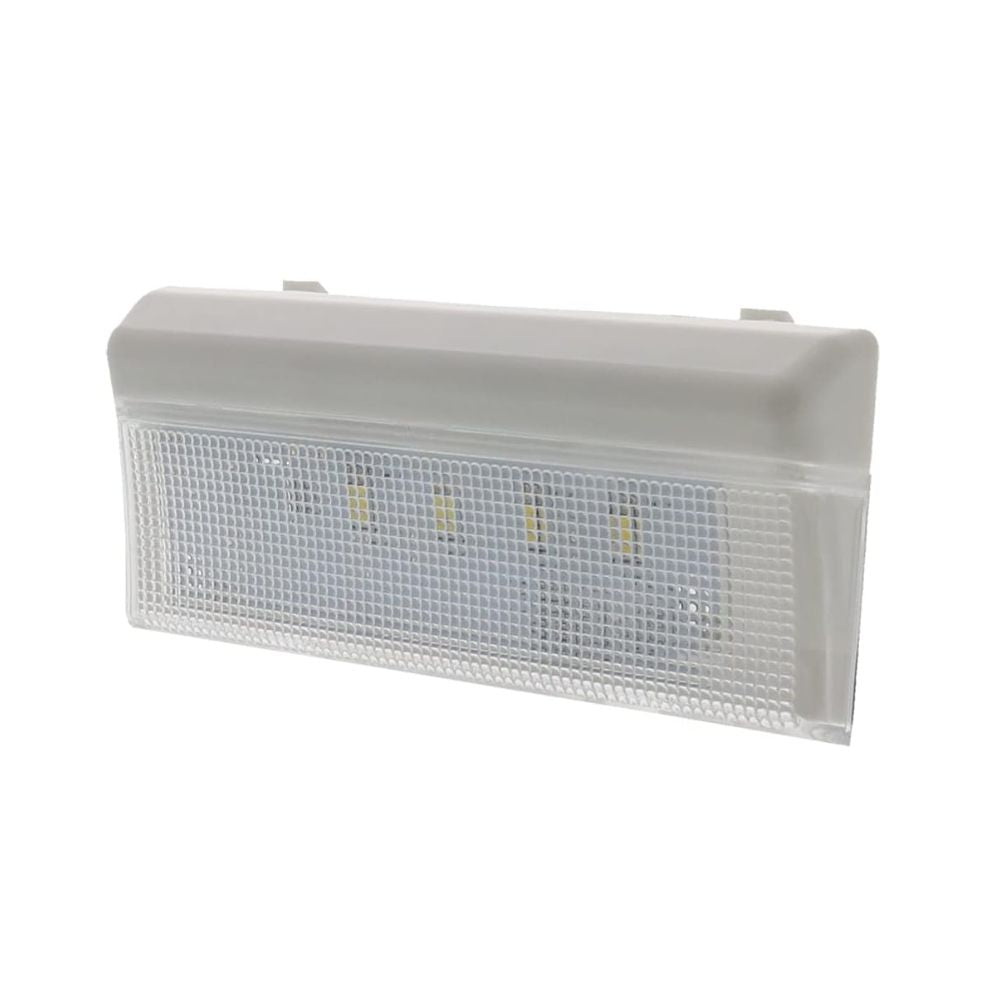

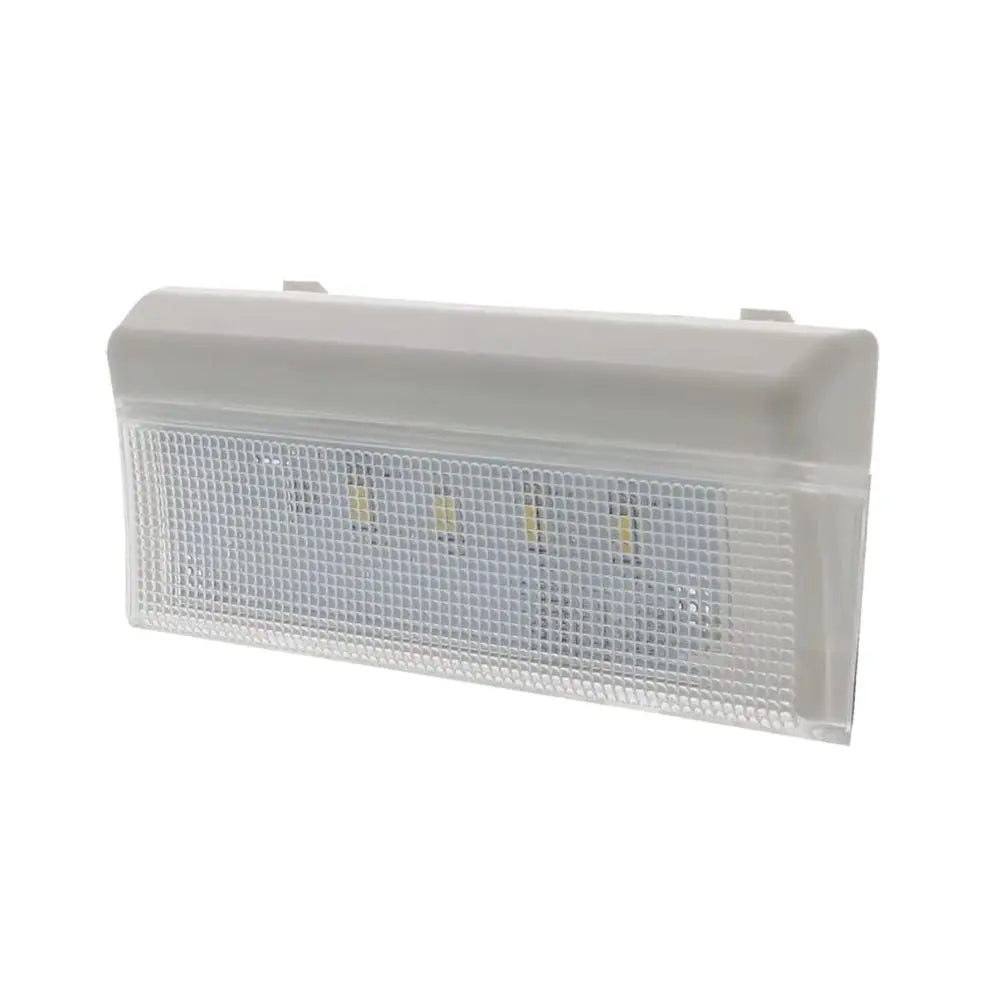

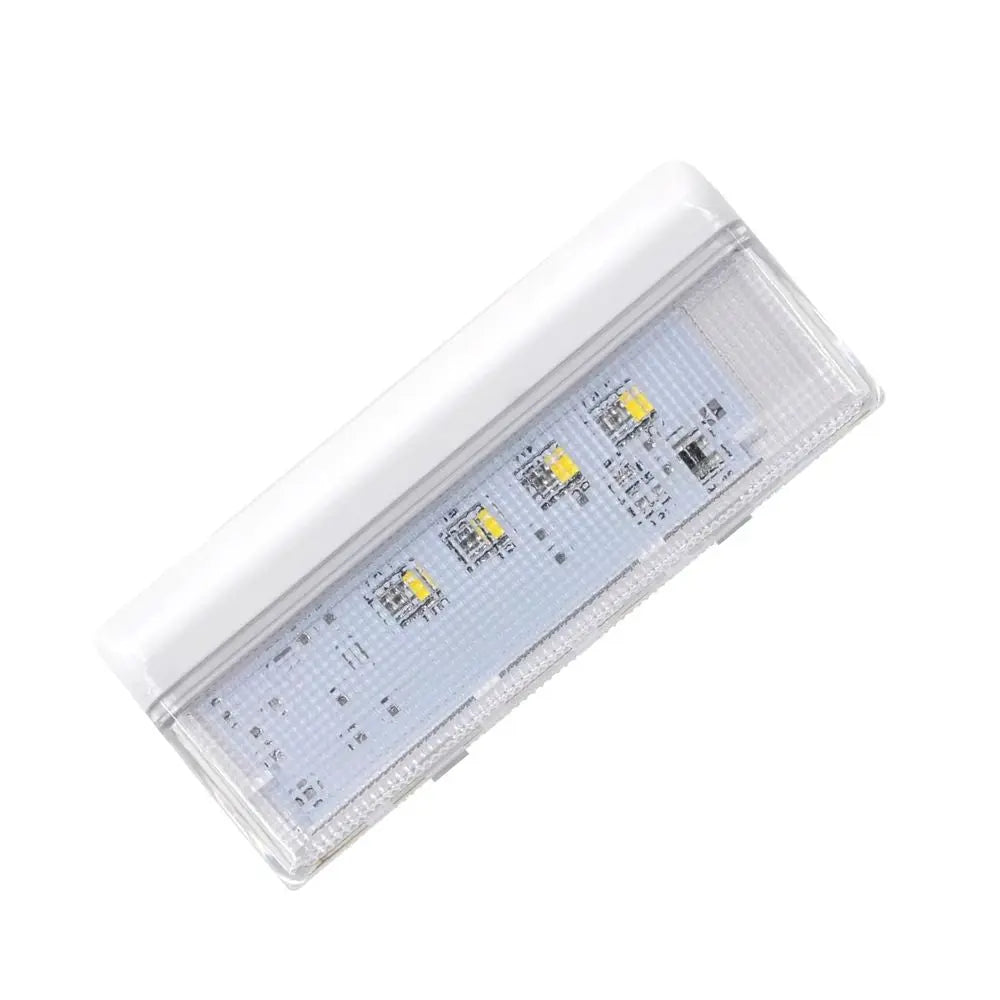

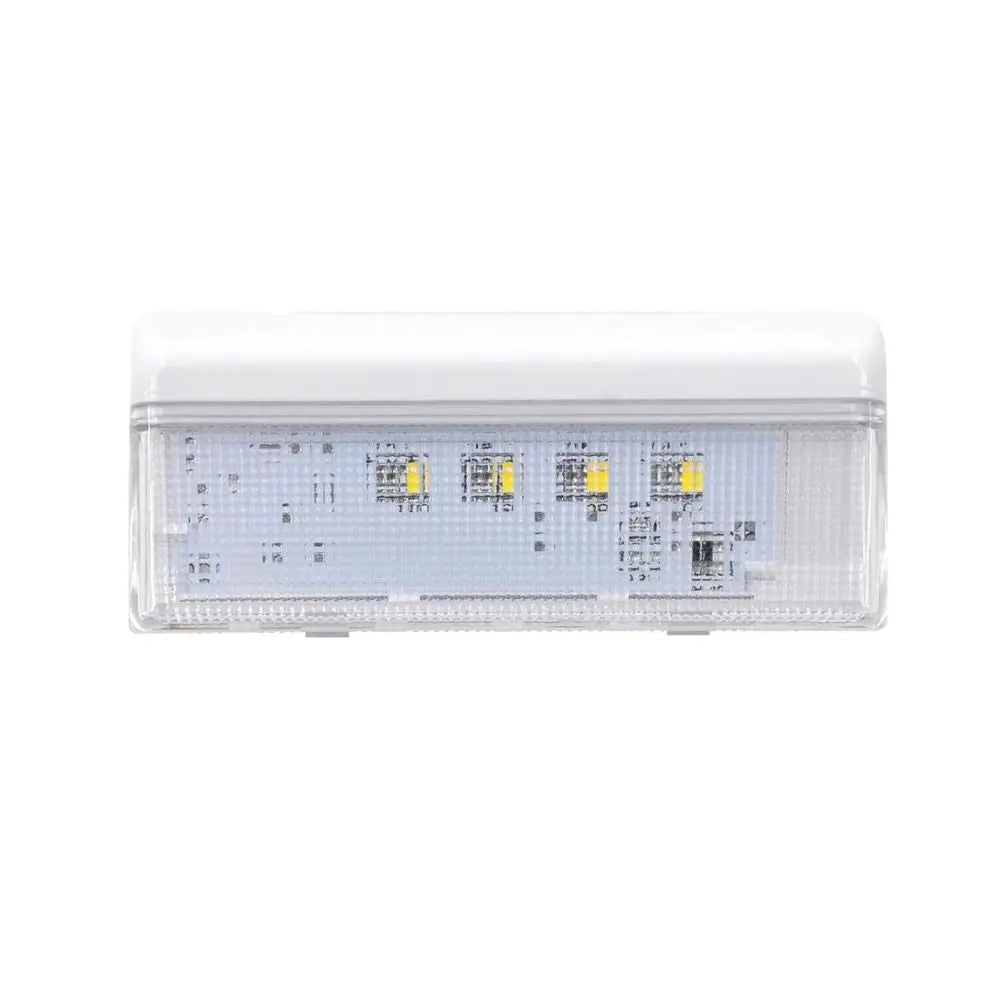

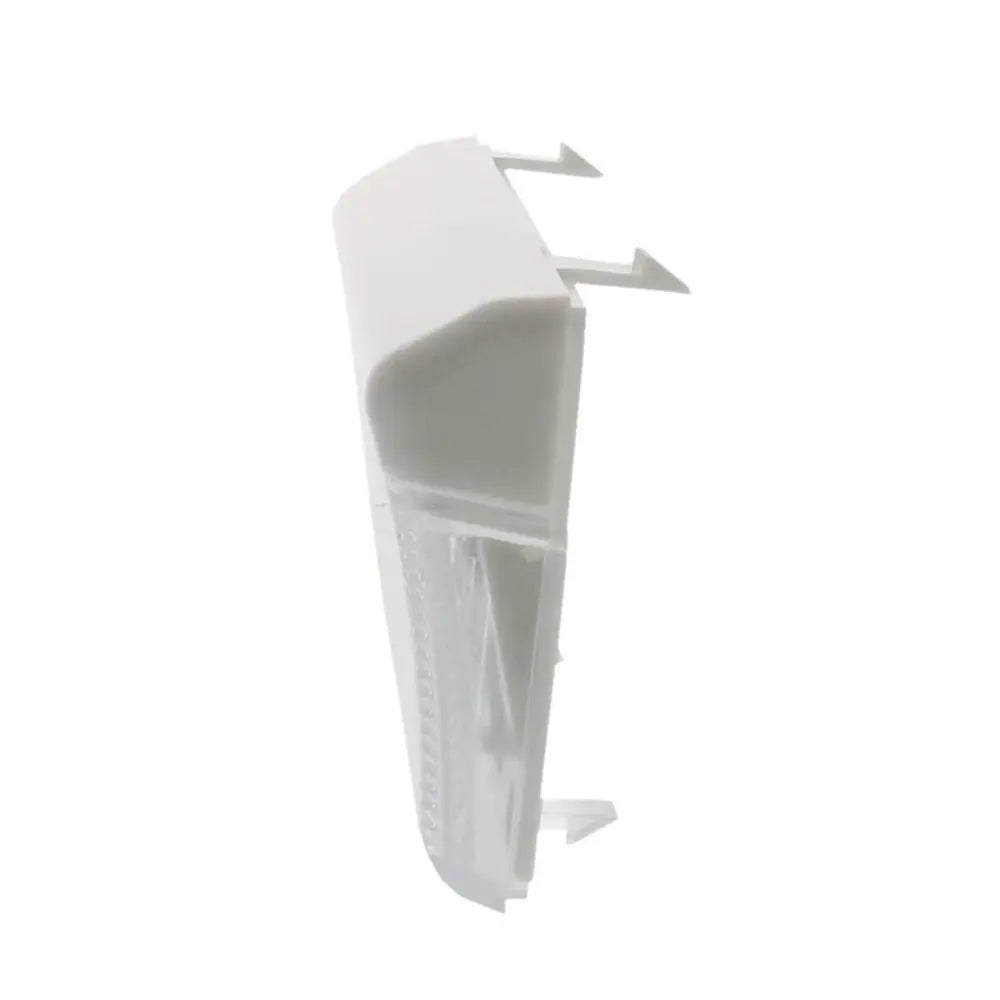

XPARTCO W10515057 Refrigerator LED Light & Cover Replaces WPW10515057
The XPARTCO W10515057 is an aftermarket replacement LED light and tapered lens cover assembly for Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators. This assembly illuminates the interior of the refrigerator or freezer compartment, and includes both the LED light module and its protective tapered lens cover in one unit.
Many of these refrigerators use three separate LED light boards — one at the top of the refrigerator compartment, one at the bottom, and one in the freezer — and a failure in any one of them can sometimes cause symptoms that appear elsewhere in the lighting system. Over time, individual LEDs on the board can burn out or begin to flicker. A failing light assembly typically shows up as a light that's dim, flickering, strobing, or not turning on at all, and in some cases, all the lights in the refrigerator strobing together even though only one board has actually failed. It directly replaces WPW10515057, W10398007, AP6022533, and PS11755866.
Quick Answer
The XPARTCO W10515057 Refrigerator LED Light & Cover fixes Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators with a dim, flickering, or non-working interior light — including cases where all the lights in the fridge strobe together. Includes LED light module and tapered lens cover. Replaces WPW10515057, W10398007, AP6022533, PS11755866. If your whole refrigerator's lighting strobes when a door opens, the actual failed board may not be the most obvious one — check all three light positions (top and bottom of the fridge, plus the freezer) before assuming which one needs replacing.
Common Problems This Part Fixes
- Interior light dim or flickering
- Interior light not turning on at all
- All refrigerator lights strobing together when a door opens
- Only some LEDs on the board lit, others dark
- Reduced visibility inside the refrigerator or freezer compartment
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator LED light and cover assembly directly replaces the following OEM and cross-reference part numbers:
WPW10515057, W10515057, W10398007, AP6022533, AWP51164, EAP11755866, OEM18067608, PD00031142, PS11755866
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This LED light and cover assembly is compatible with select Whirlpool refrigerators, and also fits select Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators built on the Whirlpool platform, including model numbers such as WRS325FDAT02, WRS325FDAM01, WRS325FDAM02, WRS325FDAM04, WRS331FDDB01, WRS331FDDW01, and WRS331FDDM01.
Note: This assembly is a different part from the related W10515058 light board used elsewhere in the same lighting system on some models. If only one section of your refrigerator's lighting is affected, confirm which specific board position (top, bottom, or freezer) has failed before ordering, since a strobing or flickering symptom in one area can actually be caused by a different board. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which light assembly your refrigerator needs.
Key Features
- Aftermarket replacement LED light and tapered lens cover assembly
- Resolves "dim or flickering light," "won't turn on," and "lights strobing together" symptoms
- Includes both the LED light module and its tapered lens cover
- Energy-efficient, long-lasting LED illumination
- Direct drop-in replacement matching the original mounting
- Replaces WPW10515057, W10398007, AP6022533, and PS11755866
- Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
- Easy installation — no specialized tools required
Product Specifications
| Part Number | W10515057 |
| OEM Part Number | WPW10515057 |
| Part Type | Refrigerator LED Light & Tapered Lens Cover Assembly |
| Condition | Aftermarket Replacement |
| Function | Illuminates the interior of the refrigerator or freezer compartment |
| Includes | LED light module, tapered lens cover |
| Repair Difficulty | Easy — no specialized tools required |
| Quantity | 1 LED light and cover assembly |
| Compatible Brands | Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, Ikea |
Installation Notes
Frequently Asked Questions
All the lights in my refrigerator strobe when I open a door. Which light do I actually need to replace?
This is a well-documented and somewhat counterintuitive symptom. One customer experienced exactly this — all the refrigerator's lights strobing whenever either door opened — and initially assumed the top refrigerator compartment light was at fault. After ordering that part, a notice included in the packaging explained that if either of the other two LED lights (bottom of the refrigerator, or the freezer light) were bad, they could cause the same strobing symptom throughout the whole system. Checking further, they found the freezer light had 3 out of 4 LEDs strobing, and replacing that light — not the one they originally suspected — resolved the issue completely. If you're seeing this symptom, check all three light positions rather than assuming the most visible one is the cause.
Does this include the plastic lens cover, or just the LED light?
This listing includes both the LED light module and its tapered lens cover as a complete assembly. Some other sellers offer LED-only versions without the cover, so if you're comparing listings elsewhere, double check whether the cover is included.
Is this a difficult repair?
No, this is considered an easy installation with no specialized tools required, though it's worth taking normal care around the electrical connections and unplugging the refrigerator first to avoid any electrical hazard.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the LED module, tapered lens cover design, and mounting configuration of the original WPW10515057 assembly used in compatible Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators.
