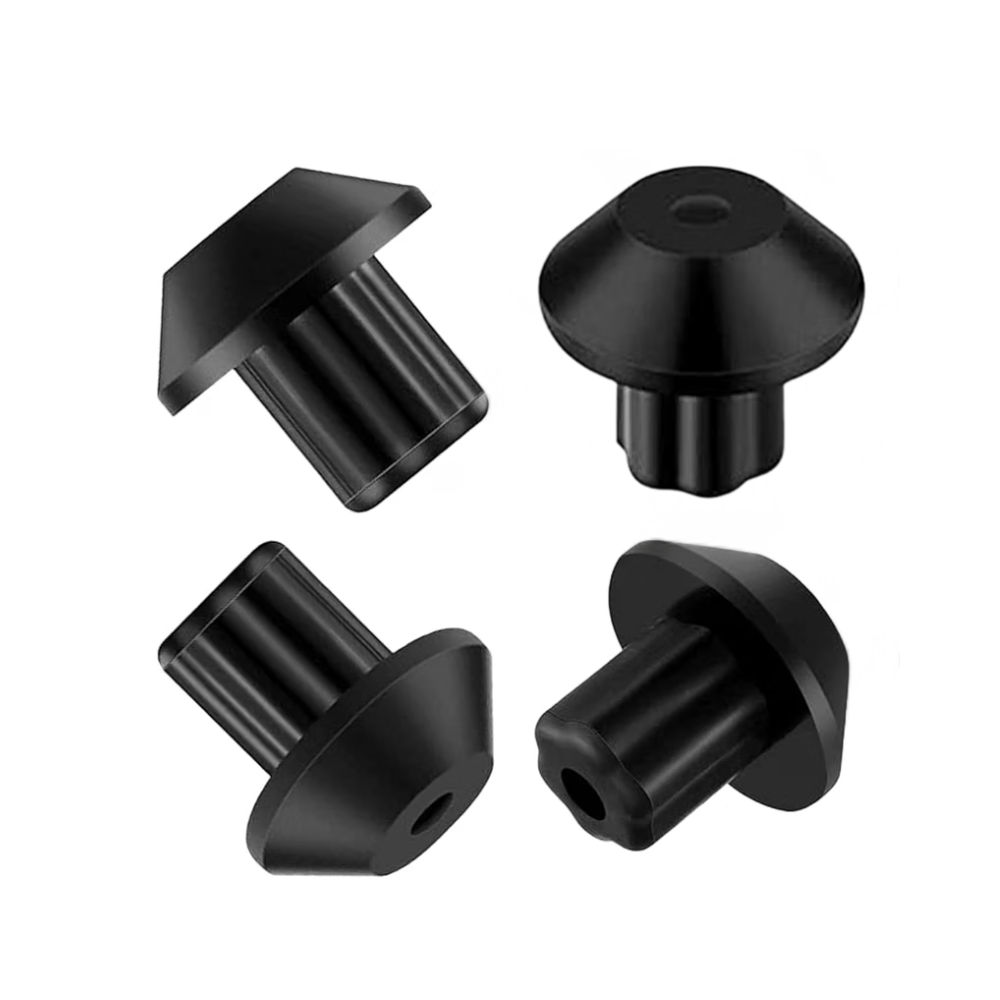

XPARTCO WB2K101 Burner Grate Rubber Foot (Pack of 4)
The XPARTCO WB2K101 is an aftermarket replacement burner grate rubber foot for GE gas ranges, and also fits select Hotpoint and Kenmore models. This pack of 4 rubber feet secures to the bottom of the burner grate, keeping the grate level for even cooking, preventing cookware from tipping due to unstable placement, and protecting the cooktop surface from scratches.

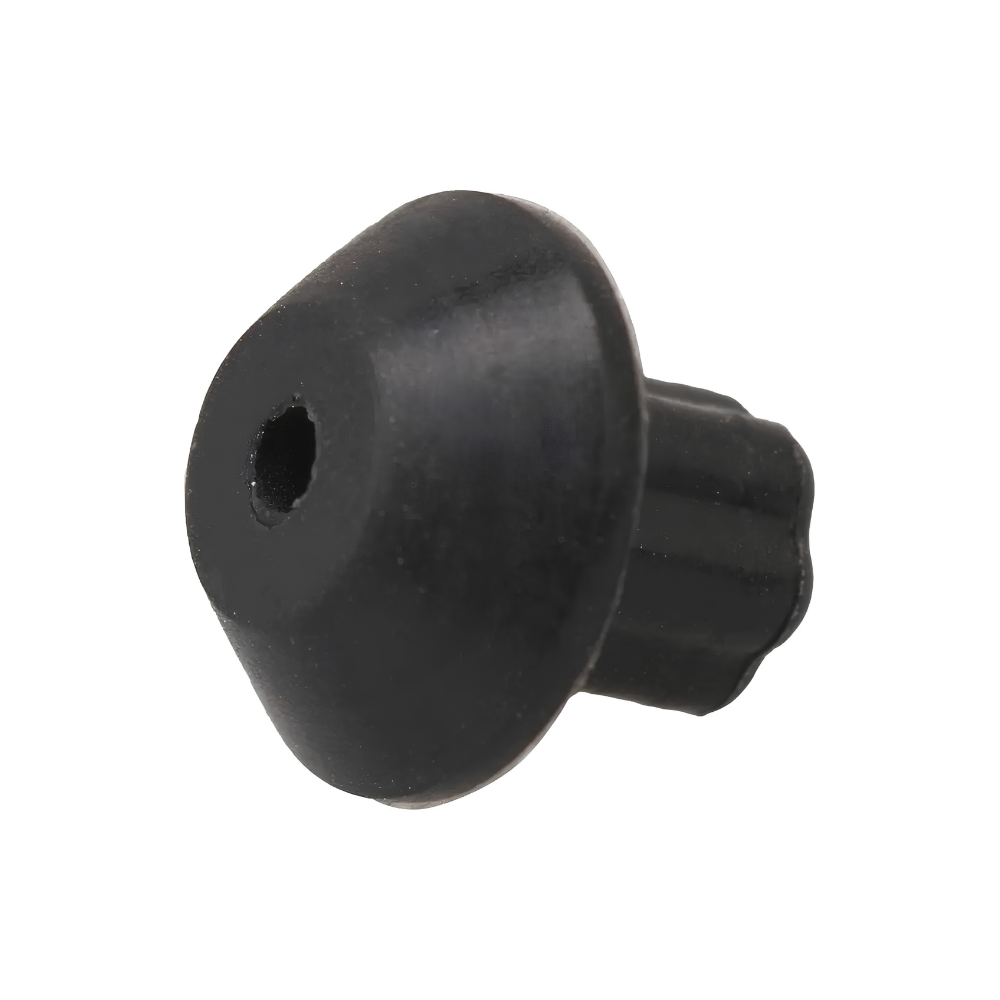

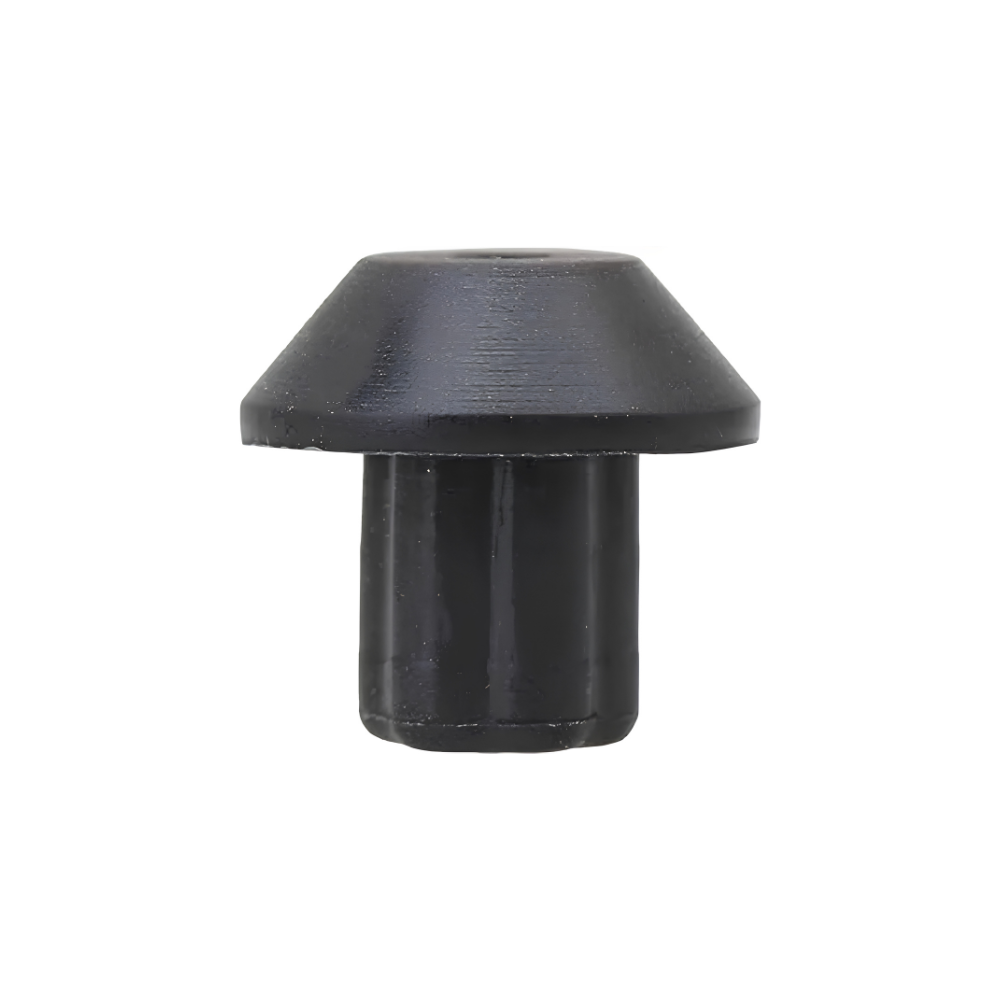

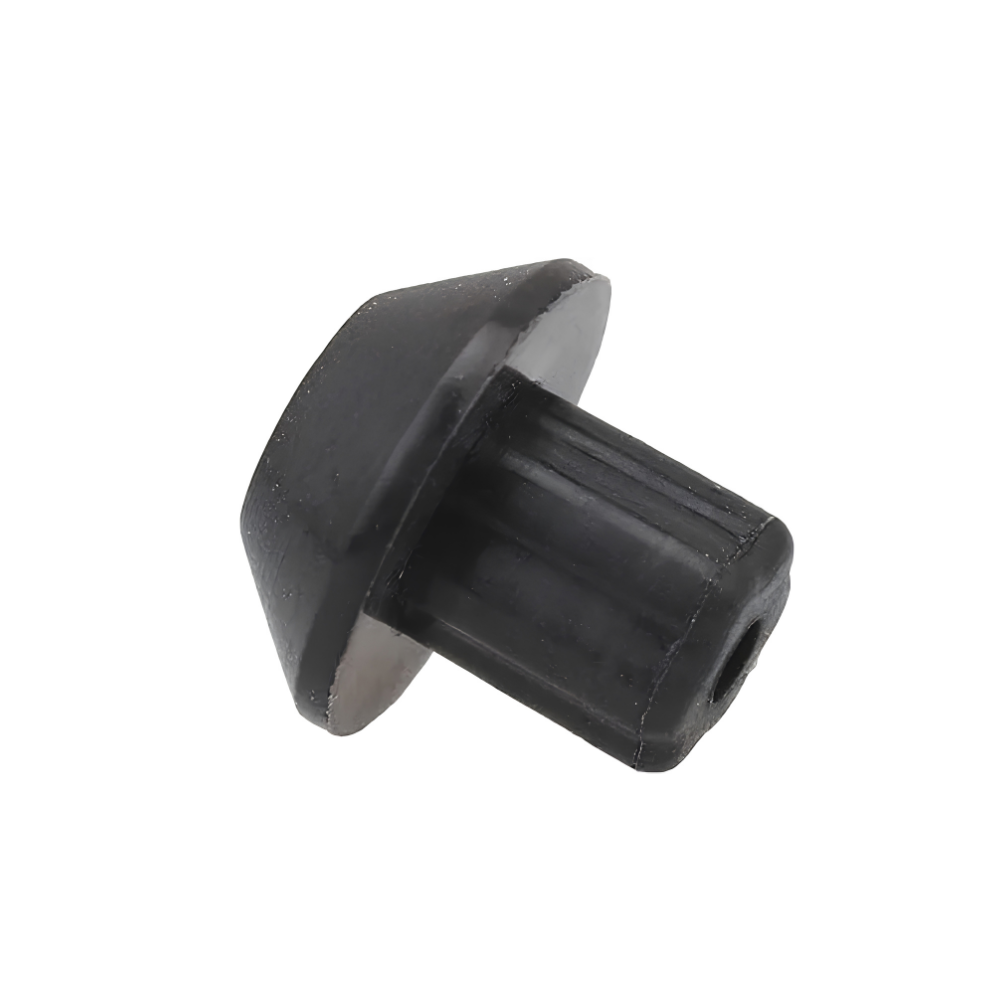

Each foot has a center vent hole, a shaft diameter of approximately 4.5mm (0.18"), and a shaft length of approximately 5.5mm (0.22"), sized for a 3/16" mounting hole. Made of rubber. Over time, these feet wear down, crack, or fall off from heat exposure and the repeated lifting and setting down of grates during cleaning. A worn or missing foot typically shows up as a grate that wobbles, sits unevenly, or scratches the cooktop underneath. It directly replaces WB02K0101, WB02T10461, WB02T10101, 247410, AP2622260, PS241358, EAP241358, and AP4411611.
Quick Answer
The XPARTCO WB2K101 Burner Grate Rubber Foot (Pack of 4) fixes GE, Hotpoint, and Kenmore gas ranges with a wobbling, uneven, or scratching burner grate from cracked, broken, or missing feet. Fits a 3/16" mounting hole. This pack includes 4 feet. Replaces WB02K0101, WB02T10461, WB02T10101, 247410, AP2622260, PS241358, EAP241358, AP4411611. For a more secure fit, it's recommended to apply a small amount of glue or heat-resistant silicone to each foot during installation.
Common Problems This Part Fixes
- Burner grate wobbling or sitting unevenly
- Grate scratching the cooktop surface underneath
- Cracked, torn, or worn rubber feet
- Missing feet on one or more grate legs
- Cookware tipping due to unstable grate placement
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
Each foot in this pack directly replaces the following OEM and cross-reference part numbers:
WB2K101, WB02K0101, 247410, AP2622260, AGE1353527, AH241358, EA241358, ERWB2K101, PD00023189, PS241358
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This grate foot is compatible with select GE gas ranges, and also fits select Hotpoint and Kenmore ranges built on the GE platform, including model numbers such as:
- EGR2000, EGR3000, EGR3001
- J2B900, J2B912, J2B918, P2B912, P2B918
- JGB282, JGB285, JGB296, JGB500, JGB600, JGB605, JGB650, JGB750, JGB760, JGB810, JGB840, JGB850, JGB870, JGB908, JGB910, JGB916, JGB918, JGB920
- JGBP28, JGBP29, JGBP32, JGBP33, JGBP35, JGBP40, JGBP79, JGBP85, JGBP86, JGBP87, JGBP88, JGBP99, JGBS23DEM1SS
- PGB908, PGB910, PGB916, PGB918, PGB975SEM
- Hotpoint RGB845BEC1WH, RGB845BEC2WH, RGB845BEC3WH, RGB845WEC1WW, RGB845WEC2WW, RGB845WEC3WW, RGB845WEC4WW, RGB845WEC5WW
- Kenmore 36275521000, 36275528000, 36275701001, 36275701002, 36275702001, 36275702002, 36275707001, 36275707002, 36275708001, 36275708002, 36275990001, 36275990002
Note: Always verify your full model number before ordering, since range manufacturers use several different grate foot sizes across their lineups. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement burner grate rubber foot — pack of 4
- Resolves "wobbling grate," "scratching cooktop," and "cracked or missing foot" symptoms
- Center vent hole design

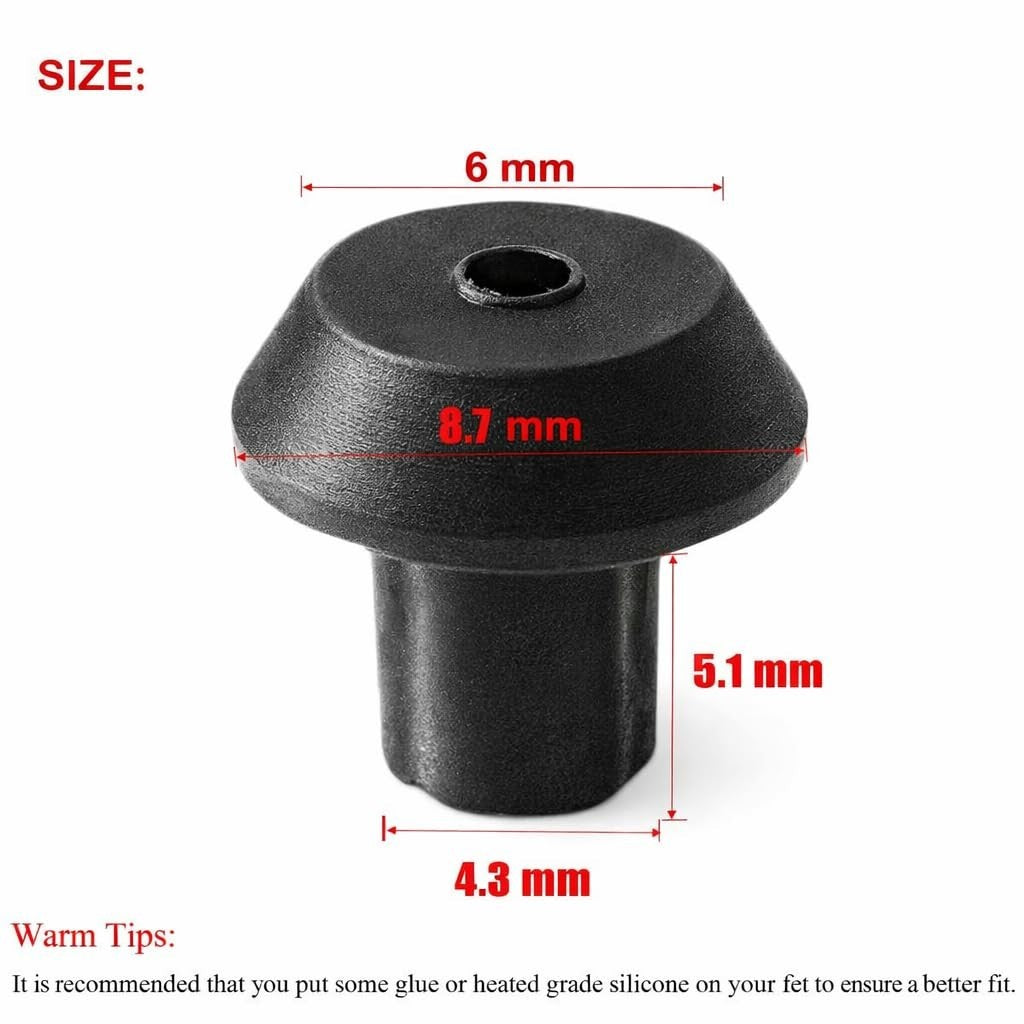

- Shaft diameter approx. 4.5mm (0.18"), shaft length approx. 5.5mm (0.22")
- Sized for a 3/16" mounting hole
- Rubber construction
- Direct drop-in replacement matching the original size and mounting
- Replaces WB02K0101, WB02T10461, WB02T10101, 247410, AP2622260, PS241358, EAP241358, and AP4411611
- Compatible with GE, Hotpoint, and Kenmore gas ranges
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XPWB2K101 |
| OEM Part Number | WB2K101 |
| Part Type | Range Burner Grate Rubber Foot |
| Condition | Aftermarket Replacement |
| Material | Rubber |
| Mounting Hole Size | 3/16" |
| Shaft Diameter | Approx. 4.5mm (0.18") |
| Shaft Length | Approx. 5.5mm (0.22") |
| Design | Center vent hole |
| Repair Difficulty | Easy |

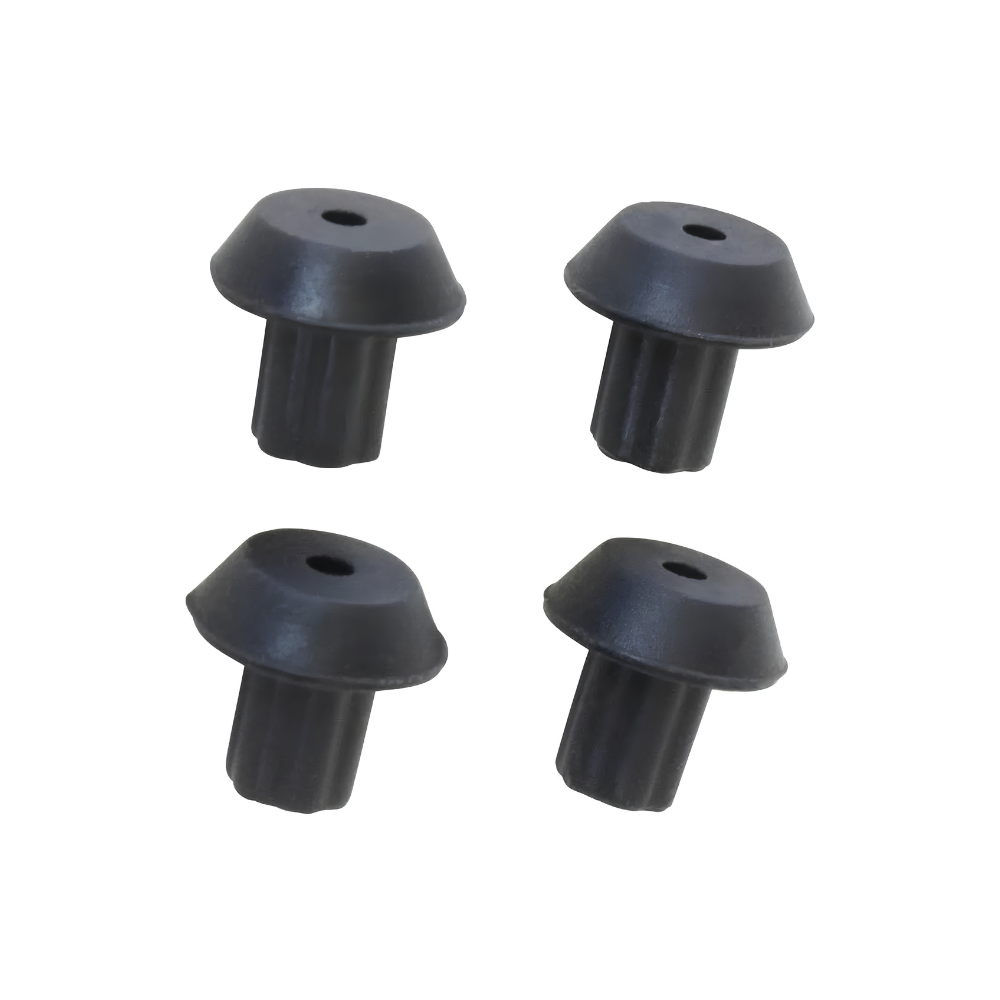

| Quantity | 4 feet (pack of 4) |
| Compatible Brands | GE, Hotpoint, Kenmore |
Installation Notes
Frequently Asked Questions
My grate wobbles and scratches the cooktop. Is this the part I need?
Yes, this is the most common symptom of worn or missing grate feet. Once the rubber foot cracks, wears thin, or falls off, the metal grate leg can sit directly against the cooktop surface, causing wobbling, uneven seating, and scratches — and an unstable grate can also cause pans to tip.
Do I need glue to install these feet?
It's recommended but not always strictly required, depending on how snug the fit is on your specific grate. For a more secure, long-lasting fit, apply a small amount of glue or heat-resistant silicone to each foot before pressing it into the mounting hole.
Do I need to replace all 4 feet on a grate, or can I just replace one?
You can replace just the feet that are damaged, but since this pack includes 4, it conveniently covers a full grate (which typically uses 4 feet) in one purchase, or lets you replace the worst feet across more than one grate if a full-grate replacement isn't needed.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the size, shaft dimensions, and mounting fit of the original WB2K101 burner grate foot used in compatible GE, Hotpoint, and Kenmore gas ranges.
