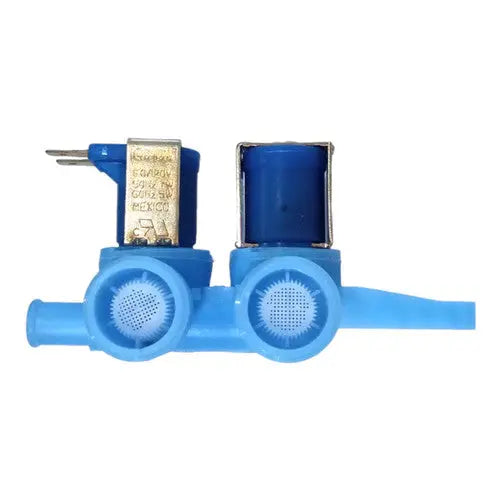

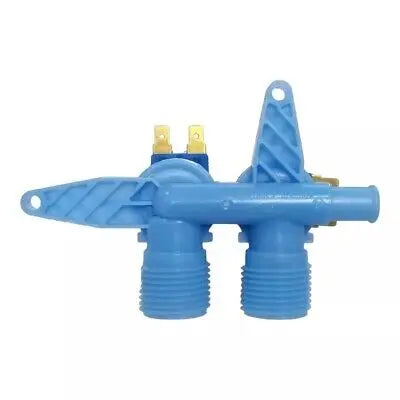

XPARTCO WH13X10024 Washer Water Inlet Valve
Dual water inlet valve replacement for select GE, Hotpoint, and RCA top-load washers.
Product Overview
The XPARTCO WH13X10024 Washer Water Inlet Valve controls hot and cold water entering the washer during fill cycles. Its dual-solenoid design opens the appropriate water path when energized by the washer controls.
This is a quality XPARTCO aftermarket replacement for the discontinued GE WH13X10024 valve used on many older GE-built washers.
Quick Answer
WH13X10024 is a dual washer water inlet valve with a plastic mounting body and two 5-watt solenoid coils. It replaces several earlier GE valve numbers including WH13X0086, WH13X0087, WH13X10004, WH13X10019, WH13X86, and WH13X87.
Common Problems This Part May Fix
- Washer will not fill with hot water
- Washer will not fill with cold water
- Slow or restricted water fill
- Washer continues filling when it should stop
- Water leaking from the inlet valve area
- Intermittent or uneven fill performance
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by GE Appliances.
Compatibility
Fits select older GE, Hotpoint, and RCA washers. Compatible model examples include:
Important: This is only a partial compatibility list. Always verify the complete washer model number and original valve number before ordering.
Key Features
- Quality XPARTCO aftermarket replacement
- Dual hot/cold water inlet valve design
- Two solenoid coils
- Plastic mounting body
- Designed for older GE-built washer platforms
- Replacement option for discontinued OEM WH13X10024
Product Specifications
| XPARTCO Part Number | WH13X10024 |
| Brand | XPARTCO |
| Part Type | Washer Water Inlet Valve |
| Valve Configuration | Dual Water Valve |
| Solenoids | 2 |
| Coil Rating | 5 Watts Each |
| Mounting Body | Plastic |
| Application | GE-Built Top-Load Washers |
| Condition | New |
| Part Quality | Aftermarket Replacement |
Installation Notes
- Unplug the washer before service.
- Shut off both hot and cold water-supply valves.
- Disconnect the inlet hoses and protect the floor from residual water.
- Transfer wire connectors and internal hoses one at a time to the replacement valve.
- Secure the valve and reconnect the supply hoses.
- Restore water and inspect all connections carefully for leaks before operating the washer.
Diagnostic tip: Low household water pressure, clogged inlet screens, kinked hoses, wiring problems, or timer/control issues can produce symptoms similar to a failed water valve.
Frequently Asked Questions
What does WH13X10024 do?
It controls hot and cold water flow into the washer during fill cycles.
Does WH13X10024 replace WH13X86?
Yes. WH13X86, WH13X87, WH13X0086, WH13X0087, WH13X10004, and WH13X10019 are among the earlier numbers replaced by WH13X10024.
Is the original GE WH13X10024 still available?
GE lists the original OEM valve as discontinued with no current OEM substitute. This XPARTCO part is an aftermarket replacement for compatible washers.
Is this a Genuine GE OEM part?
No. It is a new XPARTCO aftermarket replacement designed to replace the discontinued GE valve on compatible models.
Shop With Confidence
Verify the full washer model number and original valve number before ordering. Our compatibility team can help confirm whether XPARTCO WH13X10024 is correct for your appliance.
