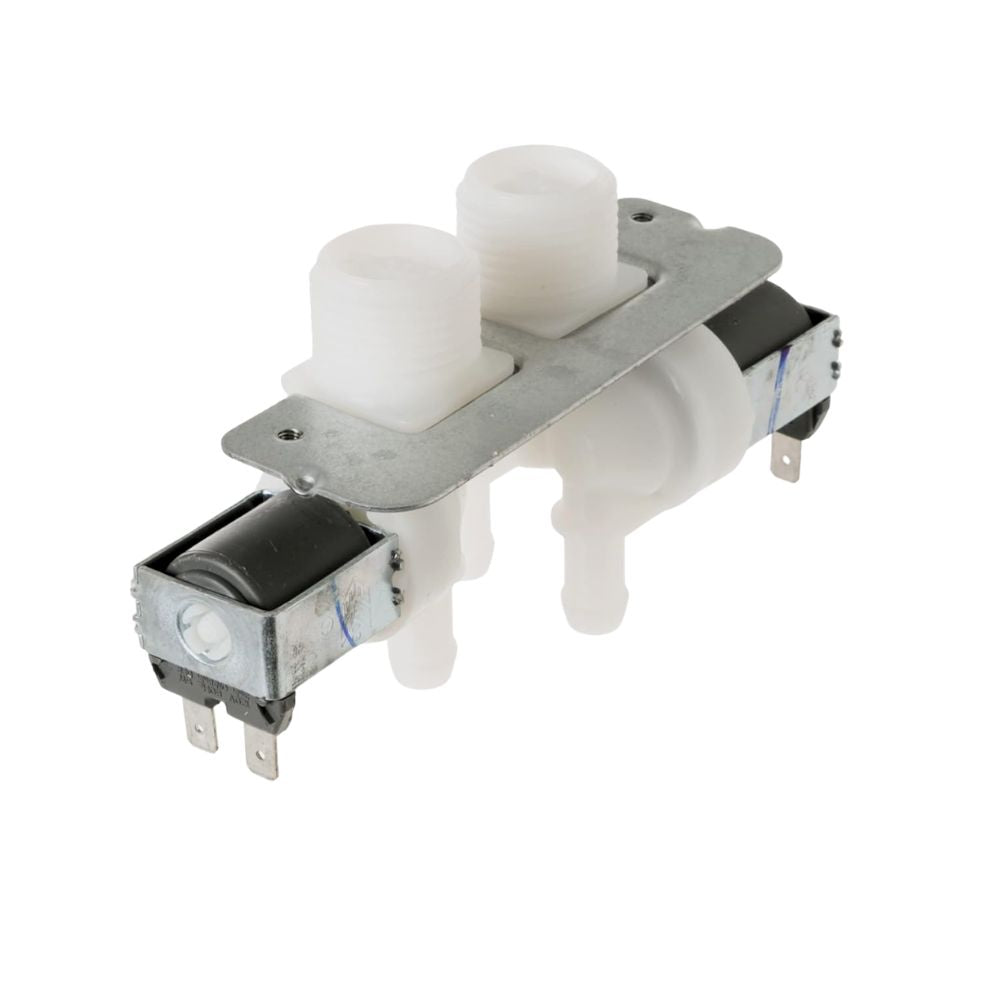

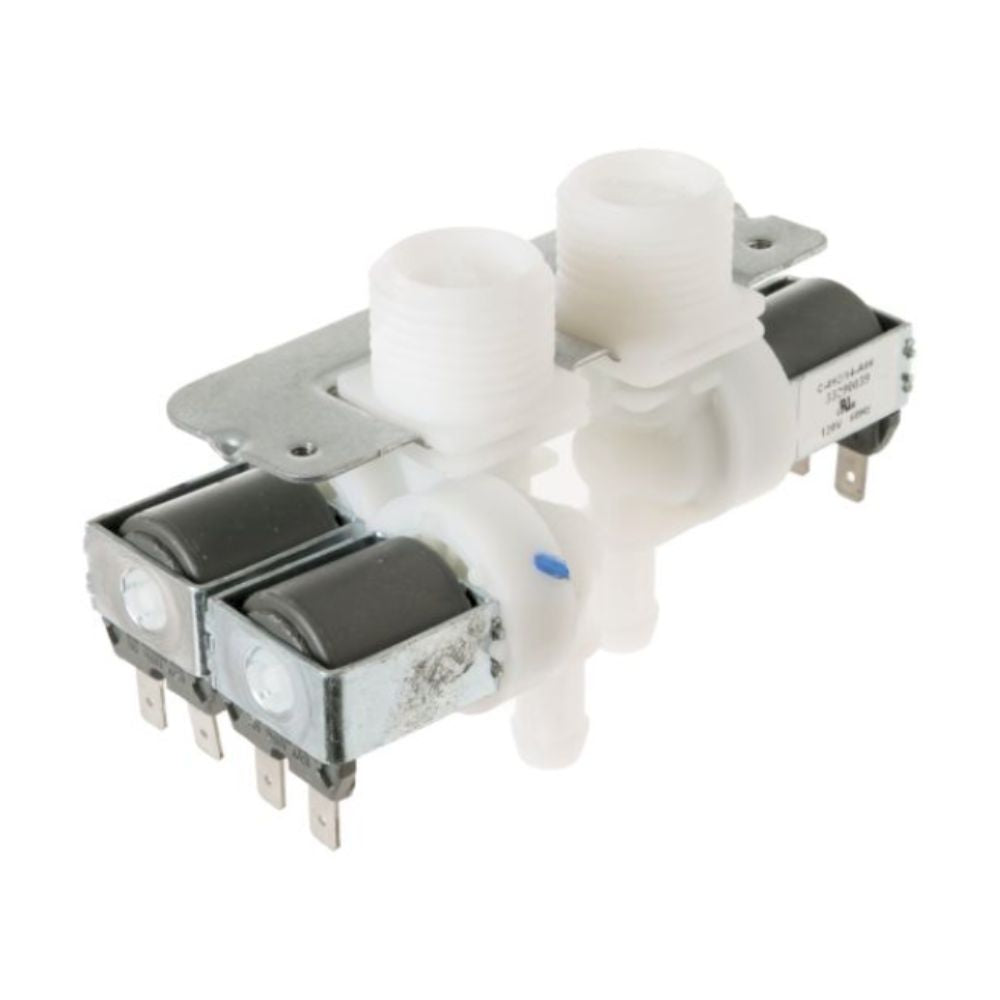

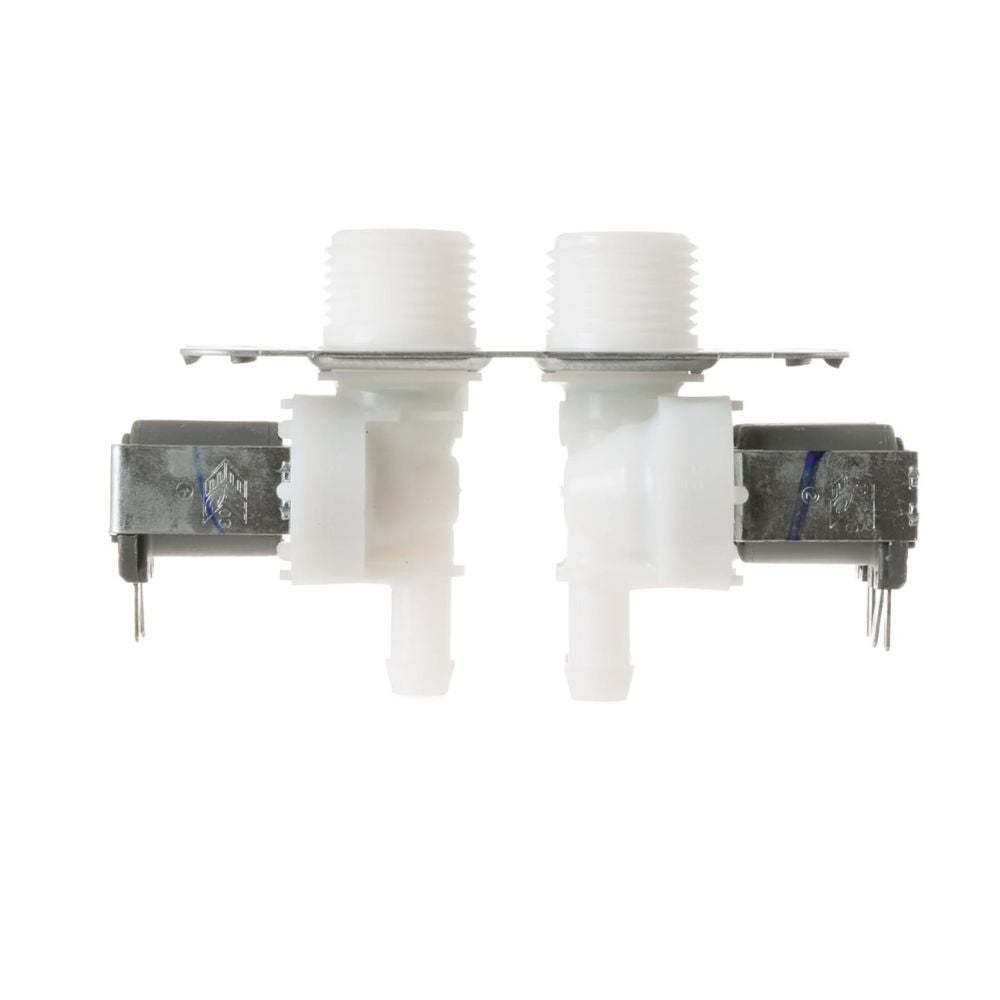

XPARTCO WH13X10029 (OE) Washer Water Valve
OE-style 2-inlet/3-outlet water inlet valve assembly for select GE front-load washing machines.
Product Overview
The XPARTCO WH13X10029 Washer Water Inlet Valve controls hot and cold water entering compatible front-load washing machines. The washer control energizes the appropriate solenoid to direct water through one of the three outlets and into the dispenser system.
This is a quality XPARTCO aftermarket OE-style replacement part. It is designed to replace WH13X10029 in compatible GE-built washers and is not a Genuine GE OEM part.
Quick Answer
WH13X10029 is a 2-inlet/3-outlet washer water valve assembly. It has separate hot- and cold-water hose connections and three controlled outlet paths. Verify the complete washer model, connector layout, mounting points, and hose arrangement before ordering.
Common Problems This Part May Fix
- Washer will not fill with water
- Slow hot- or cold-water filling
- Washer continues filling after it should stop
- Leaking near the inlet valve assembly
- No hot water or no cold water
- Incorrect water flow through the dispenser
- One or more valve solenoids fail to open
Replaces Part Number
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not affiliated with GE Appliances.
Compatibility
Designed for select GE front-load washers that specify WH13X10029. Verified model examples associated with this valve include:
Important: This is only a partial model list. Similar-looking water valves may have different outlet counts, electrical connectors, flow paths, or mounting brackets. Confirm the complete model number and original valve number before purchase.
Key Features
- Quality XPARTCO aftermarket OE-style replacement
- Two threaded water inlets
- Three controlled water outlets
- Controls hot and cold water entering the washer
- Directs water through the dispenser system
- Designed for select GE front-load washers
Product Specifications
| XPARTCO Part Number | WH13X10029 |
| Brand | XPARTCO |
| Part Type | Washer Water Inlet Valve Assembly |
| Condition | New |
| Part Quality | Aftermarket OE-Style Replacement |
| Inlet Configuration | 2 Inlets |
| Outlet Configuration | 3 Outlets |
| Application | Front-Load Washing Machine |
| Included | One Water Inlet Valve Assembly |
Troubleshooting Guide
- Unplug the washer and close both household water-supply valves.
- Confirm that the inlet hoses are not kinked and the household water pressure is adequate.
- Inspect the valve inlet screens for sediment or blockage.
- Check for leaks around the valve body, hose threads, outlet hoses, and clamps.
- Test each solenoid for continuity and verify that the washer sends voltage during the correct fill command.
- Inspect the wiring harness, pressure system, dispenser hoses, and main control if the valve is not energized.
- Replace the valve when it leaks, remains open, is electrically open, or fails to pass water when energized.
Diagnostic tip: A filling problem can also be caused by closed supply valves, clogged hoses, low water pressure, a failed pressure sensor, damaged wiring, or a control-board fault.
When Should You Replace This Part?
- The washer does not fill or fills too slowly
- The valve leaks or will not close fully
- One or more solenoids test open
- The valve is restricted after the inlet screens are cleaned
- The original valve body, fittings, or outlets are damaged
Installation Notes
- Disconnect electrical power and shut off both water supplies
- Photograph all wire and outlet-hose locations before removal
- Transfer hoses and clamps one at a time to avoid incorrect routing
- Confirm that every connector is fully seated
- Open the water supplies slowly and inspect for leaks before reassembly
FAQ
Is this a Genuine GE OEM water valve?
No. It is an XPARTCO aftermarket OE-style replacement for compatible GE washers.
How many inlets and outlets does it have?
The assembly has two water inlets and three controlled outlets.
Can a failed valve cause continuous filling?
Yes. A valve that is stuck mechanically open can allow water to enter even when it is not energized.
Will it fit every GE front-load washer?
No. Verify the complete model number, original valve number, outlet layout, and electrical connectors before ordering.
